Pinout Values and Diagnostic Parameters





SEAT BELT: SEAT BELT WARNING SYSTEM: TERMINALS OF ECU

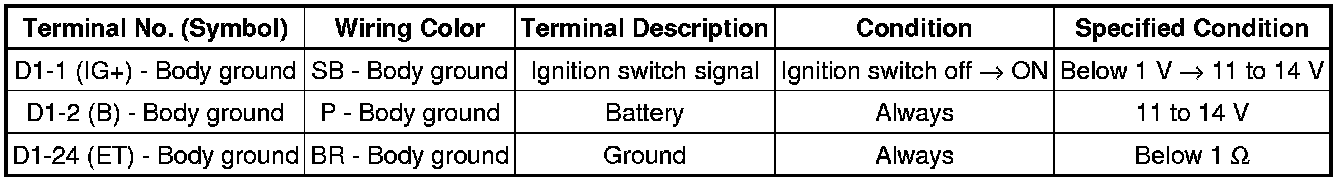

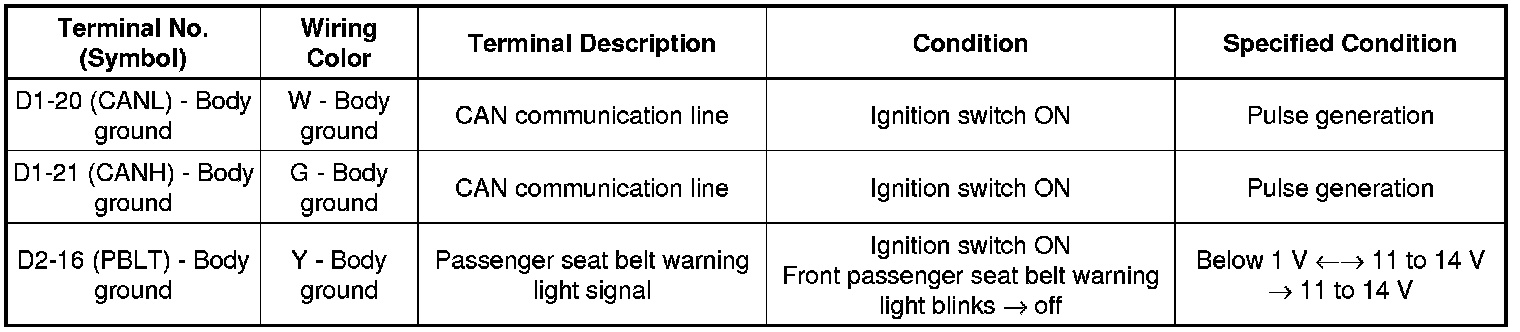

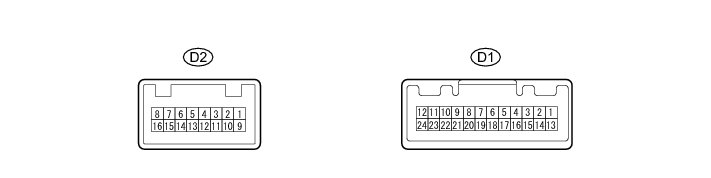

1. COMBINATION METER ASSEMBLY





(a) Disconnect the D1 combination meter assembly connector.

(b) Measure the voltage and resistance according to the value(s) in the table below.





If the result is not as specified, there may be a malfunction in the wire harness.

(c) Reconnect the combination meter assembly connector.

(d) Measure the voltage according to the value(s) in the table below.





If the result is not as specified, the combination meter assembly may have a malfunction.

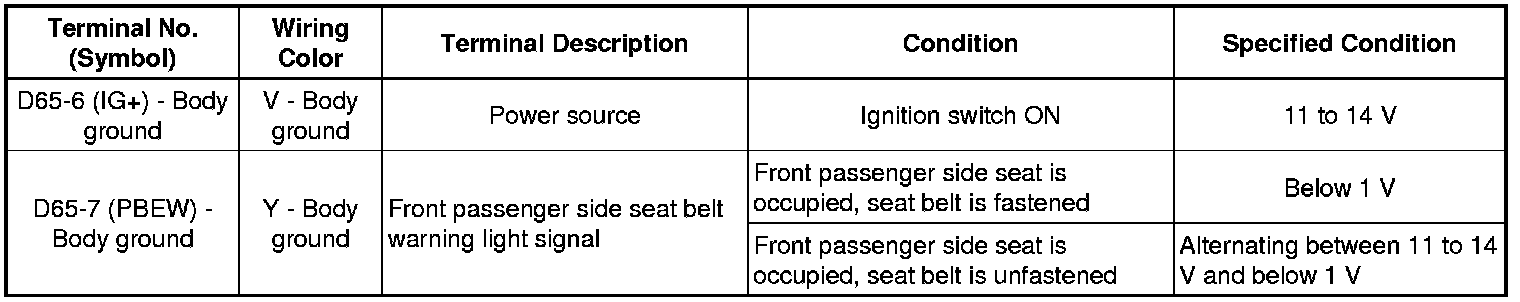

2. TELLTALE LIGHT ASSEMBLY





(a) Measure the voltage according to the value(s) in the table below.





If the result is not as specified, the panel may have a malfunction.

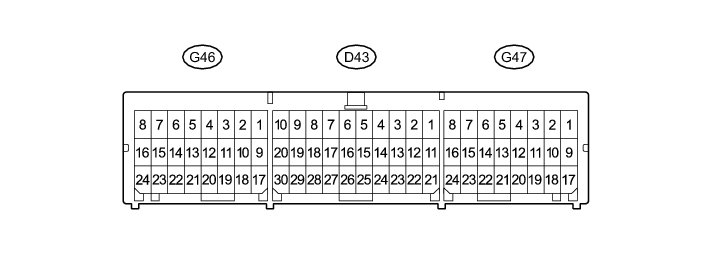

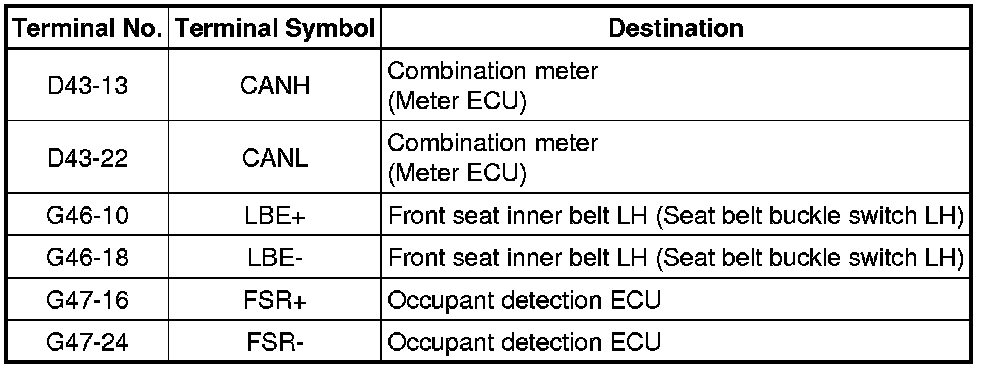

3. CENTER AIRBAG SENSOR ASSEMBLY

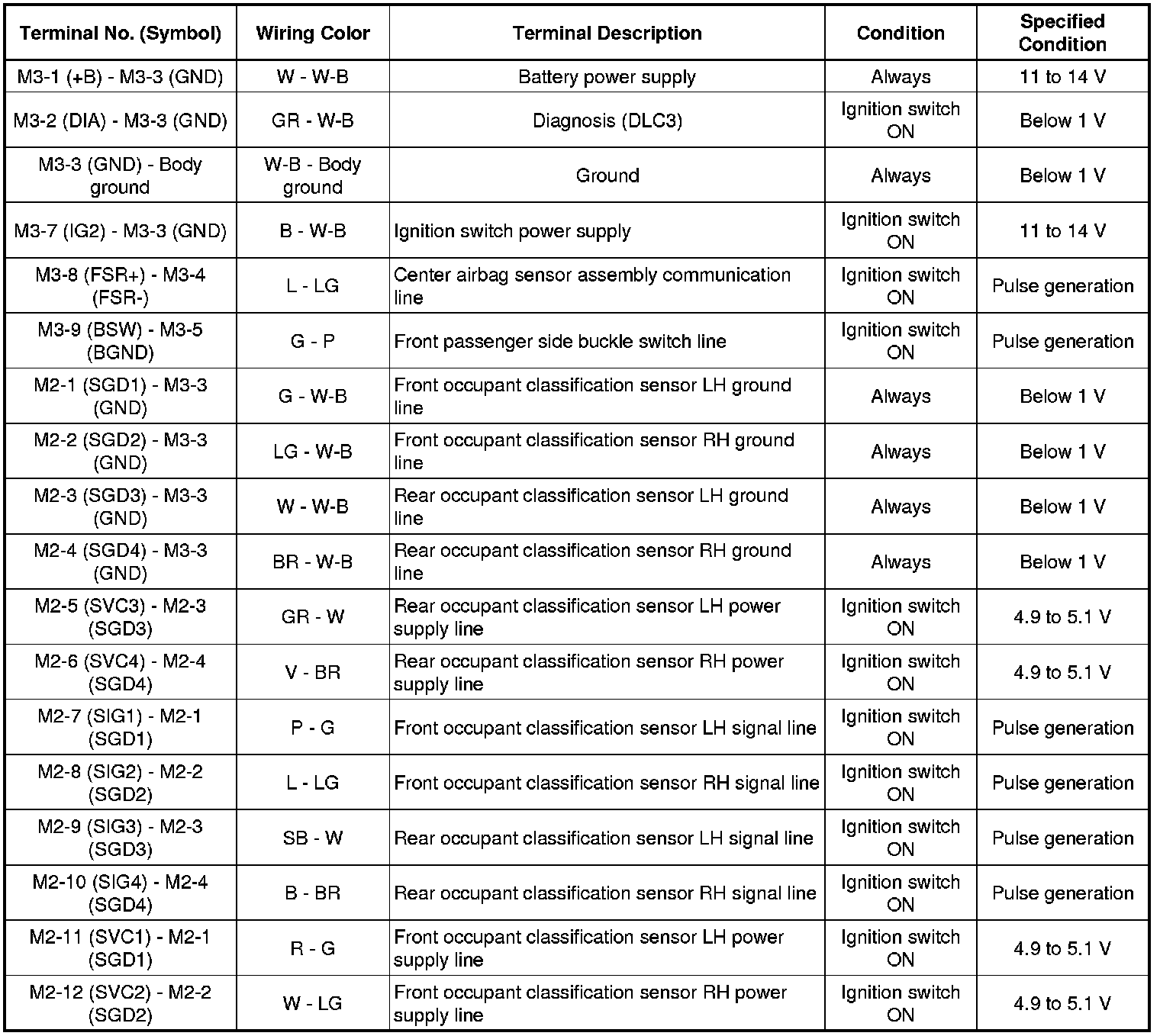

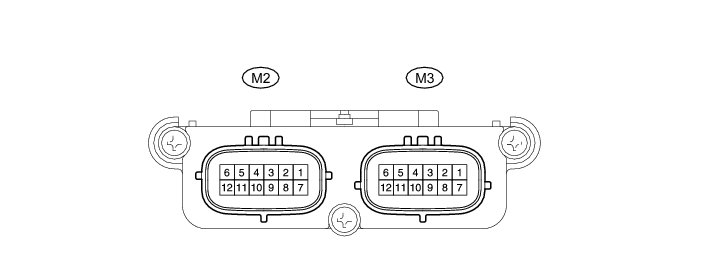

4. OCCUPANT CLASSIFICATION ECU





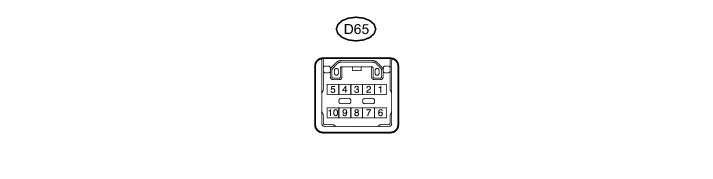

(a) Measure the voltage according to the value(s) in the table below.





* If the result is not as specified, the occupant classification ECU may have a malfunction.
