Front Seat Inner Belt Assembly (for Driver Side)

SEAT BELT: FRONT SEAT INNER BELT ASSEMBLY (for Driver Side): INSPECTION

1. INSPECT FRONT SEAT INNER BELT ASSEMBLY LH

(a) Check the resistance.





(1) Measure the resistance according to the value(s) in the table below.

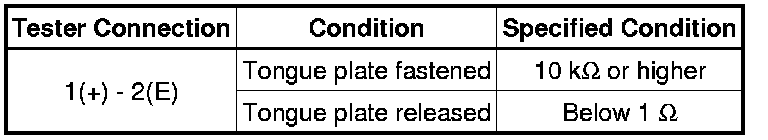

Standard Resistance:





If the result is not as specified, replace the front seat inner belt.
