Seat Belt Reminder Lamp: Testing and Inspection

SEAT BELT: FRONT PASSENGER SEAT BELT WARNING LIGHT: INSPECTION

1. INSPECT FRONT PASSENGER SEAT BELT WARNING LIGHT

(a) Check the Front Passenger Seat Belt Warning Light:

(1) Apply battery voltage to the terminals and check that the indicator illuminates.

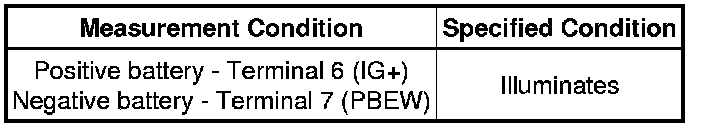

OK:





If the result is not as specified, replace the front passenger seat belt warning light.
