How To Proceed With Troubleshooting

SUPPLEMENTAL RESTRAINT SYSTEMS: AIRBAG SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT
*: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. CUSTOMER PROBLEM ANALYSIS How To Proceed With Troubleshooting

(a) Confirm problem symptoms.

NEXT -- Continue to next step.

3. CHECK CAN COMMUNICATION SYSTEM* Diagnosis System

Result





B -- CHECK CAN COMMUNICATION CIRCUIT
A -- Continue to next step.

4. WARNING LIGHT CHECK Diagnosis System

NEXT -- Continue to next step.

5. DTC CHECK (Present and Past DTCs)* Reading and Clearing Diagnostic Trouble Codes

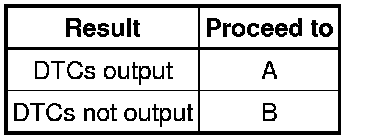

Result





B -- PROBLEM SYMPTOMS TABLE Problem Symptoms Table
A -- Continue to next step.

6. DTC CHART Airbag System

NEXT -- Continue to next step.

7. CIRCUIT INSPECTION

NEXT -- Continue to next step.

8. REPAIR OR REPLACEMENT

NEXT -- Continue to next step.

9. DTC CLEARANCE (Present and Past DTCs)* Reading and Clearing Diagnostic Trouble Codes

NEXT -- Continue to next step.

10. DTC CHECK* Reading and Clearing Diagnostic Trouble Codes

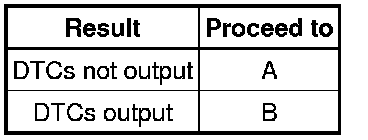

Result





B -- DIAGNOSTIC TROUBLE CODE CHART Airbag System
A -- Continue to next step.

11. CONFIRMATION TEST

NEXT -- END
