Component Tests and General Diagnostics

SUPPLEMENTAL RESTRAINT SYSTEMS: AIRBAG SYSTEM: TC and CG Terminal Circuit
- TC and CG Terminal Circuit

DESCRIPTION

DTC output mode is set by connecting terminals TC and CG of the DLC3.

The DTCs are displayed by blinking the SRS warning light.

HINT
* Make sure that DTCs which relate to the CAN communication system are not output. If any of these DTCs are output, check the CAN communication system Diagnosis System.
* When a warning light keeps blinking, a short to ground in the wiring of terminal TC of the DLC3 or an internal ground short in each ECU is suspected.
* The DTC output mode signal is transmitted through the CAN to each ECU including the center airbag sensor assembly. Thus if no systems enter DTC output mode, the ECM may have a malfunction.

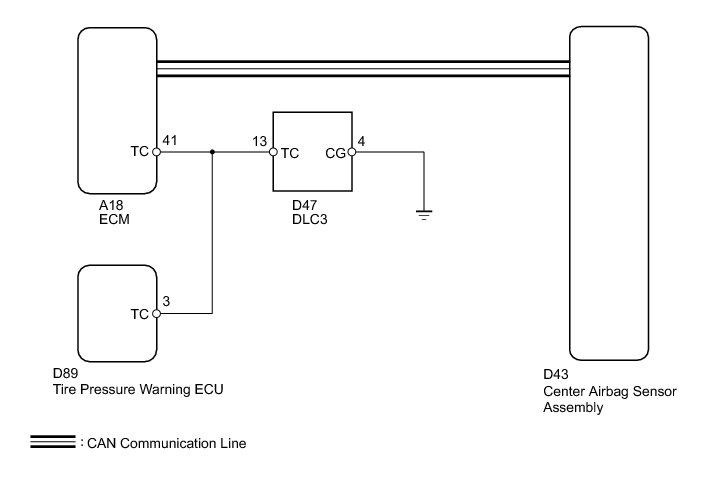

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (DLC3 - ECM)





(a) Turn the ignition switch off.

(b) Disconnect the connector from the ECM.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

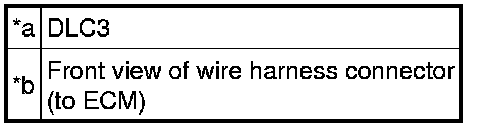

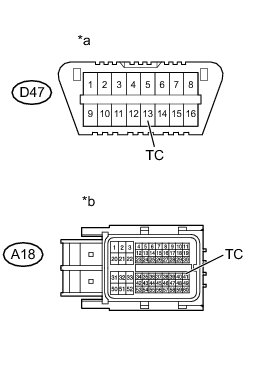

Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (CG OF DLC3 - BODY GROUND)

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:

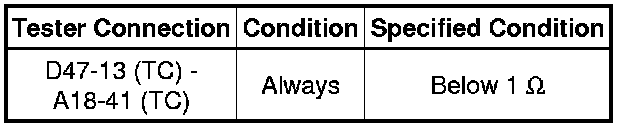

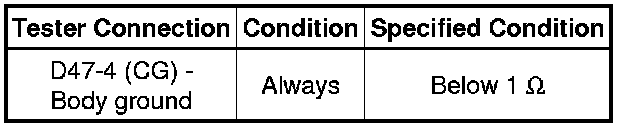

Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (TC OF ECM)

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:

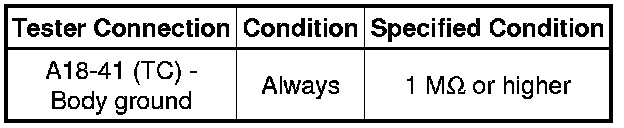

Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

4. CHECK DTC

SST : 09843-18040

(a) Using SST, connect terminals TC and CG of the DLC3.





NOTICE:
Connect the terminals to the correct positions to avoid a malfunction.

Text in Illustration

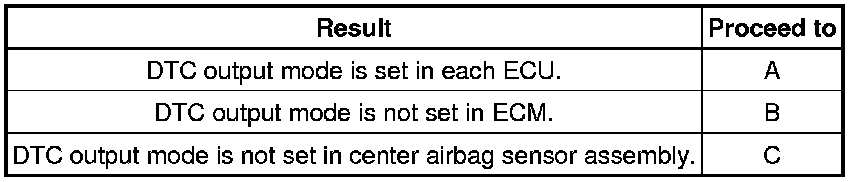

Result





B -- REPLACE ECM Removal

C -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY Removal

A -- USE SIMULATION METHOD TO CHECK
