Installation





SUPPLEMENTAL RESTRAINT SYSTEMS: REAR AIRBAG SENSOR: INSTALLATION

CAUTION:
Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing Service Precautions.

HINT
The procedure described below is for the RH side. Use the same procedure for both the LH and RH sides, unless otherwise specified.

1. INSTALL REAR AIRBAG SENSOR

(a) Check that the ignition switch is off.

(b) Check that the cable is disconnected from the negative (-) battery terminal.

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(c) Insert the pin (stopper) into the body hole to install the rear airbag sensor to the vehicle with the bolt.

Torque : 9.0 Nm (92 kgf-cm, 80 in-lbf)

NOTICE:
* If the rear airbag sensor has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.
* When installing the rear airbag sensor, be careful that the SRS wiring does not interfere with or is not pinched between other parts.
* Make sure that the pin (stopper) is securely inserted into the body hole.
* Tighten the bolt while holding the rear airbag sensor because the rear airbag sensor pin (stopper) is easily damaged.

(d) Connect the connector to the rear airbag sensor.

NOTICE:
When connecting any airbag connector, take care not to damage the airbag wire harness.

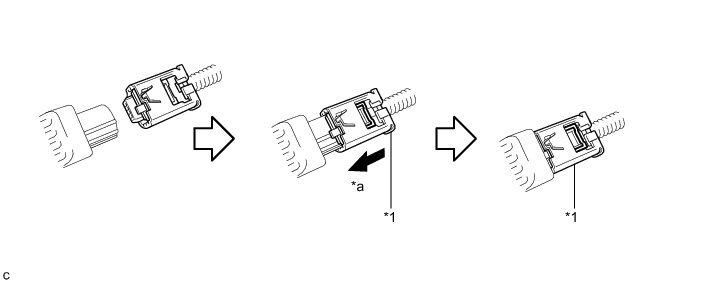

(1) Connect the connector as shown in the illustration (when locking, make sure that the outer connector locking sleeve returns to its original position and a click sound can be heard).





Text in Illustration





(e) Check that there is no looseness in the installation parts of the rear airbag sensor.

2. INSTALL SIDE NO. 1 TRIM ASSEMBLY RH Installation

3. INSTALL DECK TRIM SIDE BELT HOLE COVER Installation

4. INSTALL REAR DECK TRIM COVER Installation

5. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP

6. INSTALL FRONT DOOR SCUFF PLATE Installation

7. INSTALL REAR SEAT ASSEMBLY

Installation

8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

9. INSPECT SRS WARNING LIGHT

Diagnosis System
