Front Passenger Airbag Assembly

SUPPLEMENTAL RESTRAINT SYSTEMS: FRONT PASSENGER AIRBAG ASSEMBLY: DISPOSAL

CAUTION:
Before performing pre-disposal deployment of any SRS part, review and closely follow all applicable environmental and hazardous material regulations. Predisposal deployment may be considered hazardous material treatment.

HINT
When scrapping a vehicle equipped with the SRS or disposing of the front passenger airbag assembly, be sure to deploy the airbag first in accordance with the procedure described below. If any abnormality occurs with airbag deployment, contact the SERVICE DEPT. of the TOYOTA MOTOR SALES, U.S.A., INC.

CAUTION:
* An airbag or pretensioner may be activated by static electricity. To prevent this, be sure to touch a metal surface with bare hands to discharge static electricity before performing this procedure.
* Never dispose of a front passenger airbag assembly that has an undeployed airbag.
* The airbag produces an exploding sound when it is deployed, so perform the operation outdoors and where it will not create a nuisance to nearby residents.
* When deploying the airbag, always use the specified SST (SRS Airbag Deployment Tool). Perform the operation in a place away from electrical noise.
* When deploying the airbag, perform the operation at least 10 m (33 ft.) away from the front passenger airbag assembly.
* The front passenger airbag assembly becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
* Use gloves and safety glasses when handling a front passenger airbag assembly a deployed airbag.
* Do not apply water, etc. to a front passenger airbag assembly with a deployed airbag.
* Always wash your hands with water after completing the operation.
1. DISPOSE OF FRONT PASSENGER AIRBAG ASSEMBLY (When Installed in Vehicle)

HINT
Prepare a battery as the power source to deploy the airbag.

(a) Check the function of SST.

SST : 09082-00700

CAUTION:
Always use the specified SST (SRS Airbag Deployment Tool) when deploying the airbag.

(1) Connect the red clip of SST to the positive battery terminal and the black clip of SST to the negative battery terminal.

Text in Illustration

SST : 09082-00700

(2) Press the SST activation switch, and check that the LED on the SST activation switch illuminates.

CAUTION:
* Do not connect the SST connector (yellow colored one) to the airbag.
* If the LED illuminates when the activation switch is not being pressed, SST may be malfunctioning. Do not use SST.
(3) Disconnect SST from the battery.

(b) Disconnect the cable from the negative (-) battery terminal.

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

(c) Remove the knee airbag assembly (for Front Passenger Side) Removal.

(d) Install SST to the instrument panel wire inflator side.

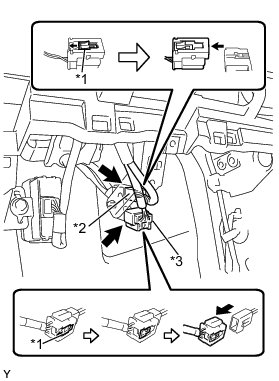

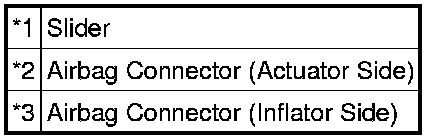

(1) Pull the slider in the direction indicated by the arrow to release the lock and disconnect the 2 airbag connectors.

Text in Illustration

NOTICE:
When handling the airbag connector, take care not to damage the airbag wire harness.

(2) Connect SST connector to the instrument panel wire inflator side.

SST : 09082-00780

NOTICE:
* To avoid damaging SST connector and the wire harness, do not lock the secondary lock of the twin lock.
* At this time, do not connect SST to the instrument panel wire actuator side.

(3) Check that the lock slider is in the lock position.

(4) Connect SST connector.

NOTICE:
Take care not to damage SST wire harness.

(5) Close all doors.

(6) Move SST at least 10 m (33 ft.) away from the vehicle front side window.

Text in Illustration

(e) Deploy the front passenger airbag assembly inflator.

(1) Check that no one is inside the vehicle or within a 10 m (33 ft.) radius of the vehicle.

(2) Press SST activation switch and deploy the airbag.

CAUTION:
* When deploying the airbag, make sure that no one is near the vehicle.
* The front passenger airbag assembly becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
* Use gloves and safety glasses when handling a front passenger airbag assembly with a deployed airbag.
* Do not apply water, etc. to a front passenger airbag assembly with a deployed airbag.
* Always wash your hands with water after completing the operation.
HINT
The airbag is deployed as the LED of SST activation switch comes on.

(f) Install SST to the instrument panel wire actuator side.

CAUTION:
Before performing this procedure, be sure to wait 30 minutes or more after performing the procedure to deploy the front passenger airbag assembly inflator with the front passenger airbag assembly installed to the vehicle.

(1) Pull the slider in the direction indicated by the arrow to release the lock and disconnect SST connector from the instrument panel wire inflator side.

Text in Illustration

NOTICE:
Take care not to damage SST wire harness.

(2) Connect SST connector to the instrument panel wire actuator side.

SST : 09082-00760

NOTICE:
To avoid damaging SST connector and the wire harness, do not lock the secondary lock of the twin lock.

(3) Connect SST connector.

NOTICE:
Take care not to damage SST wire harness.

(g) Deploy the front passenger airbag actuator.

(1) Check that no one is inside the vehicle or within a 10 m (33 ft.) radius of the vehicle.

(2) Press SST activation switch and deploy the actuator.

CAUTION:
* When deploying the airbag, make sure that no one is near the vehicle.
* The front passenger airbag assembly becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
* Use gloves and safety glasses when handling a front passenger airbag assembly with a deployed airbag.
* Do not apply water, etc. to a front passenger airbag assembly with a deployed airbag.
* Always wash your hands with water after completing the operation.
HINT
The airbag is deployed as the LED of SST activation switch comes on.

2. DISPOSE OF FRONT PASSENGER AIRBAG ASSEMBLY INFLATOR (When not Installed in Vehicle)

HINT
Prepare a battery as the power source to deploy the airbag.

(a) Check the function of SST.

Text in Illustration

SST : 09082-00700

(2) Press the SST activation switch, and check that the LED on the SST activation switch illuminates.

CAUTION:
* Do not connect the SST connector (yellow colored one) to the airbag.
* If the LED illuminates when the activation switch is not being pressed, SST may be malfunctioning. Do not use SST.
(3) Disconnect SST from the battery.

(b) Remove the front passenger airbag assembly Removal.

CAUTION:
* Before removing the front passenger airbag assembly, wait at least 90 seconds after turning the power switch off and disconnecting the cable from the negative (-) battery terminal.
* When storing the front passenger airbag assembly, keep the airbag deployment side facing upward.
(c) Connect SST.

(1) Connect the 2 SST connectors to the front passenger airbag assembly inflator.

Text in Illustration

SST : 09082-00802

09082-10801

09082-30801

NOTICE:
To avoid damaging SST connector and the wire harness, do not lock the secondary lock of the twin lock.

(2) Push in the 2 locking buttons to lock the 2 SST connectors.

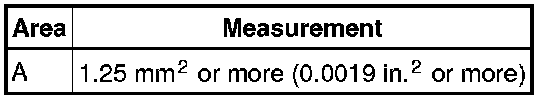

(d) Using a service-purpose wire harness for the vehicle, tie the front passenger airbag assembly to a tire.

Text in Illustration

Stripped Wire Harness Section

CAUTION:
If the wire harness is too thin or an alternative object is used to tie the front passenger airbag assembly, it may be snapped by the shock when the airbag is deployed. Always use a wire harness for vehicle use with a cross-sectional area of at least 1.25 mm2 (0.0019 in.2).

HINT
To calculate the cross-sectional area of the stripped wire harness section:

Cross-sectional area = 3.14 x (Diameter)2 / 4

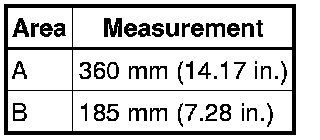

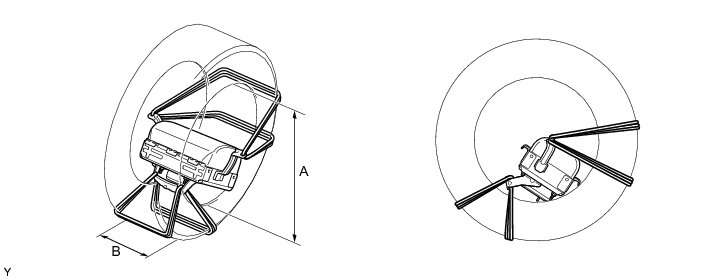

(1) Position the front passenger airbag assembly inside a tire with the airbag deployment side facing inside.

Tire Size

CAUTION:
* Make sure that the wire harnesses are tight. If there is slack in the wire harnesses, the front passenger airbag assembly may become loose due to the shock when the airbag is deployed.
* Always tie down the front passenger airbag assembly with the airbag deployment side facing inside the tire.
NOTICE:
The tire will be marked by the airbag deployment, so use a waste tire.

(e) Place tires.

Text in Illustration

(1) Place at least 2 tires under the tire which the front passenger airbag assembly is tied to.

(2) Place at least 2 tires over the tire which the front passenger airbag assembly is tied to. The top tire should have a disc wheel installed.

NOTICE:
* Do not place the SST connector under the tire because it could be damaged.
* As the disc wheel will be marked by the airbag deployment, use a waste disc wheel.
* As the tires will be marked by the airbag deployment, use waste tires.

(3) Tie the tires together with 2 wire harnesses.

CAUTION:
Make sure that the wire harnesses are tight. Looseness in the wire harnesses results in the tires coming free due to the shock when the airbag is deployed.

(f) Install SST.

(1) Connect SST connector.

Text in Illustration

SST : 09082-00700

NOTICE:
Do not lock the secondary lock of the twin lock to avoid damaging the SST connector and wire harness. Also, secure some slack for SST wire harness inside the tire.

(g) Deploy the front passenger airbag assembly inflator.

(1) Check that no one is within a 10 m (33 ft.) radius of the tire which the front passenger airbag assembly is tied to.

(2) Connect the red clip of SST to the positive battery terminal and the black clip of SST to the negative battery terminal.

(3) Press SST activation switch and deploy the airbag.

CAUTION:
Make sure that no one is near the tires when deploying the airbag.

HINT
The airbag is deployed as the LED of SST activation switch comes on.

(4) Disconnect the red clip of SST from the positive (+) battery terminal and the black clip of SST from the negative (-) battery terminal.

3. DISPOSE OF FRONT PASSENGER AIRBAG ASSEMBLY ACTUATOR (When not Installed in Vehicle)

CAUTION:
Before performing this procedure, be sure to wait 30 minutes or more after performing the procedure to deploy the front passenger airbag assembly inflator with the front passenger airbag assembly removed from the vehicle.

NOTICE:
Be sure to follow the procedure detailed below when deploying the airbag.

(a) Connect SST connector.

(1) Check that the tires used when deploying the front passenger airbag assembly inflator are not damaged.

CAUTION:
If the tires are damaged, replace the tires.

(2) Check that the wire harnesses used to tie the front passenger airbag assembly are not severed.

CAUTION:
If any of the wire harnesses are severed, retie the airbag with new wire harnesses.

(3) Disconnect the 2 SST connectors from the front passenger airbag assembly inflator.

(4) Connect SST connector to the front passenger airbag assembly actuator.

SST : 09082-50800

Text in Illustration

NOTICE:
* To avoid damaging SST connector and the wire harness, do not lock the secondary lock of the twin lock.
* At this time, do not connect SST to the front passenger airbag assembly actuator side.

(5) Push in the locking button to lock SST connector.

(b) Install SST.

(1) Connect SST connector.

Text in Illustration

CAUTION:
* The front passenger airbag assembly becomes extremely hot when the airbag is deployed, so do not touch it for at least 30 minutes after deployment.
* Use gloves and safety glasses when handling a front passenger airbag assembly with a deployed airbag.
* Do not apply water, etc. to a front passenger airbag assembly with a deployed airbag.
* Always wash your hands with water after completing the operation.
(1) Remove the front passenger airbag assembly from the tire.

(2) Place the front passenger airbag assembly in a plastic bag, tie it tightly and dispose of it according to local regulations.
