Horn Relay: Testing and Inspection

HORN: RELAY: ON-VEHICLE INSPECTION

1. INSPECT INTEGRATION NO. 1 RELAY

(a) Check the resistance.

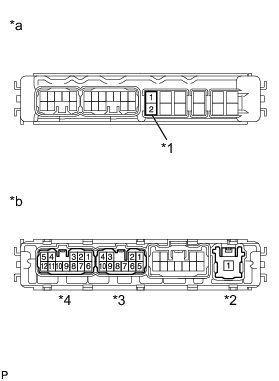

Text in Illustration





(1) Remove the horn fuse.

(2) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the relay.

(3) Install the horn fuse.

(b) Check the resistance.

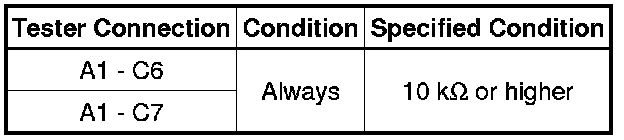

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the relay.

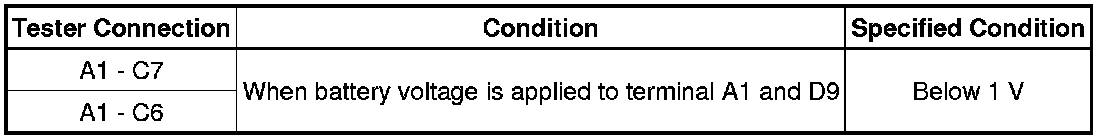

(2) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





If the result is not as specified, replace the relay.
