Fail-Safe Chart

K41B CVT: CONTINUOUSLY VARIABLE TRANSAXLE SYSTEM: FAIL-SAFE CHART

1. Description

This function minimizes the loss of the Continuously Variable Transaxle (CVT) system functions when a malfunction occurs in a sensor or solenoid.

2. Fail-safe

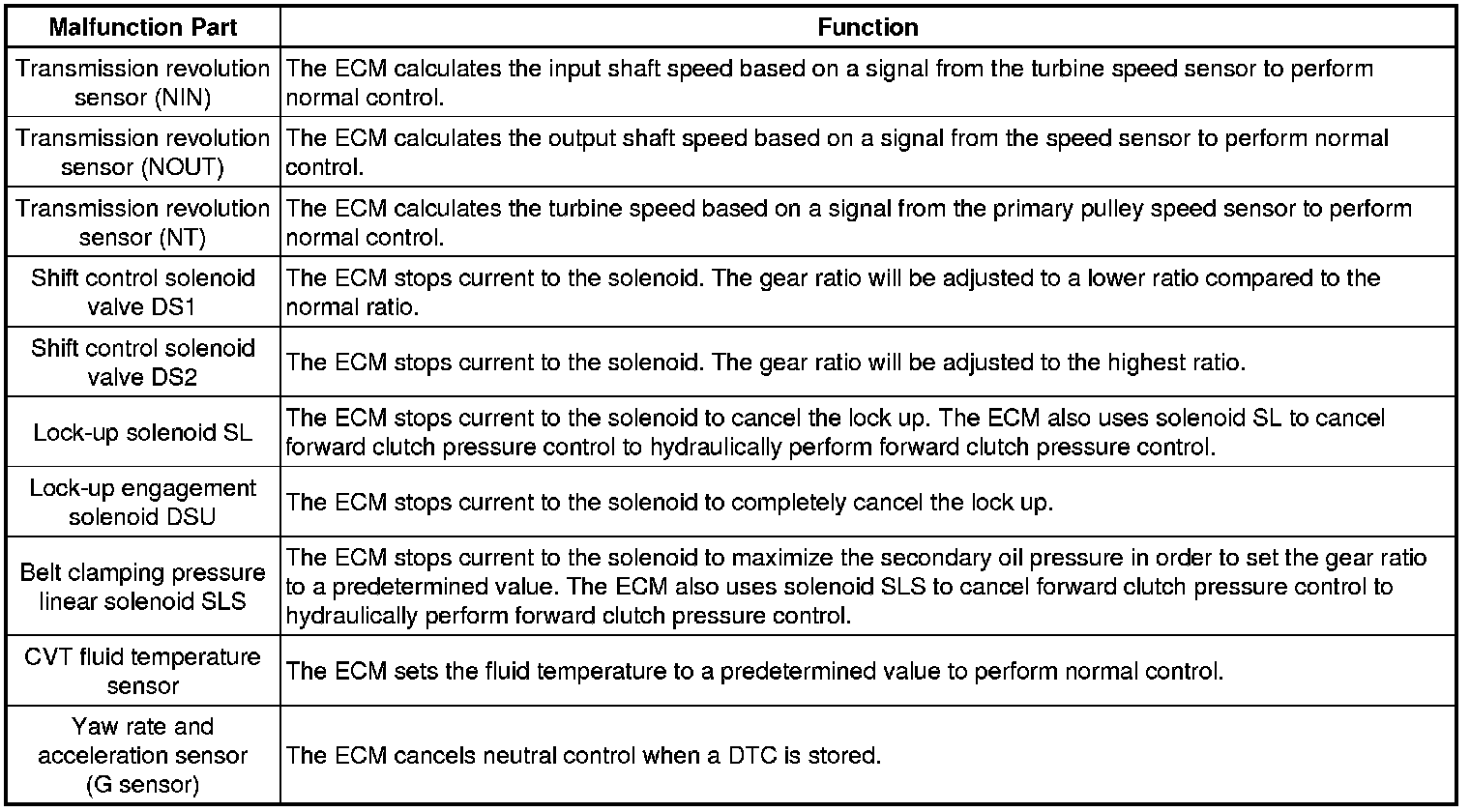

(a) Fail-safe control list:
