Removal
1NR-FE FUEL: FUEL PUMP: REMOVAL
1. DISCHARGE FUEL SYSTEM PRESSURE
Fuel System: Precaution
2. SEPARATE FUEL TANK WIRE Removal
3. REMOVE NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY Removal
4. DISCONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY Removal
5. DRAIN FUEL Removal
6. REMOVE FUEL TANK VENT HOSE Removal
7. REMOVE FUEL TANK FILLER PIPE PROTECTOR Removal
8. DISCONNECT FUEL TANK FILLER PIPE SUB-ASSEMBLY Removal
9. REMOVE FUEL TANK ASSEMBLY Removal
10. DISCONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY

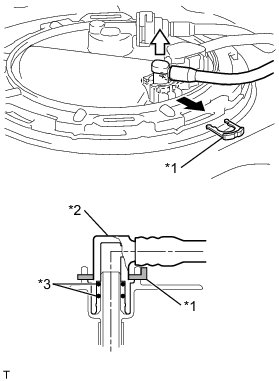

(a) Widen the tip of the tube joint clip and pull out the clip in the direction indicated by the arrow.

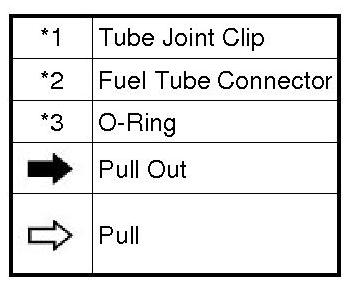

Text in Illustration
(b) Pull the fuel tank main tube out of the fuel suction tube assembly to disconnect it.
NOTICE:
* Check for dirt or other foreign matter on the parts to be disconnected and clean them if necessary.
* The fuel tube connector seals with an O-ring. Ensure that there is no damage or foreign matter on the contact surface.
* Do not use any tools.
* Do not bend or twist the tubes.
* Protect the contact surface by covering it with a plastic bag.
* If the connector is stuck, push and pull on the parts to separate them.
11. DISCONNECT FUEL TANK WIRE
(a) Disconnect the fuel tank wire connector from the fuel suction tube assembly.
12. DISCONNECT NO. 1 FUEL EVAPORATION TUBE SUB-ASSEMBLY

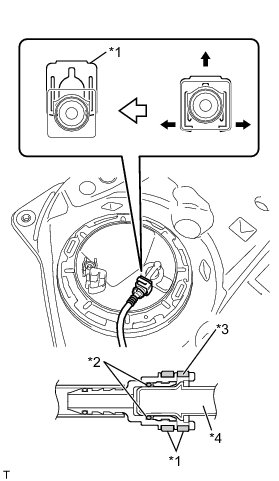

(a) Release the retainer as shown in the illustration and disconnect the No. 1 fuel evaporation tube from the fuel suction tube assembly.

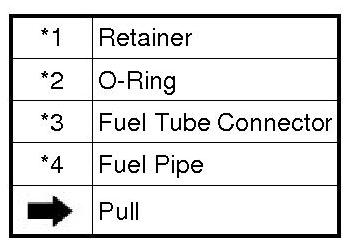

Text in Illustration
NOTICE:
* Check for dirt or other foreign matter on the parts to be disconnected and clean them if necessary.
* The fuel tube connector seals with an O-ring. Ensure that there is no damage or foreign matter on the contact surface.
* Do not use any tools.
* Do not bend or twist the tubes.
* Protect the contact surface by covering it with a plastic bag.
* If the connector is stuck, push and pull on the parts to separate them.
13. REMOVE FUEL PUMP GAUGE RETAINER Removal
14. REMOVE FUEL SUCTION TUBE ASSEMBLY Removal
15. REMOVE FUEL TANK SUCTION TUBE GASKET Removal
