Canister Purge Solenoid: Testing and Inspection

1NR-FE EMISSION CONTROL: PURGE VALVE: INSPECTION

1. INSPECT DUTY VACUUM SWITCHING VALVE

(a) Check the resistance.

(1) Measure the resistance according to the value(s) in the table below.





Standard Resistance:

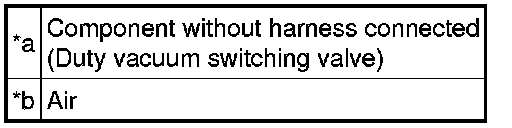

Text in Illustration





If the result is not as specified, replace the duty vacuum switching valve.

(b) Check the operation.

(1) Check that air does not flow from port E to port F.





OK:





Text in Illustration





(2) Apply battery voltage across the terminals to check that air flows from port E to port F.





OK:





Text in Illustration





If the result is not as specified, replace the duty vacuum switching valve.
