1NR-FE ENGINE CONTROL: SFI SYSTEM: DATA LIST / ACTIVE TEST

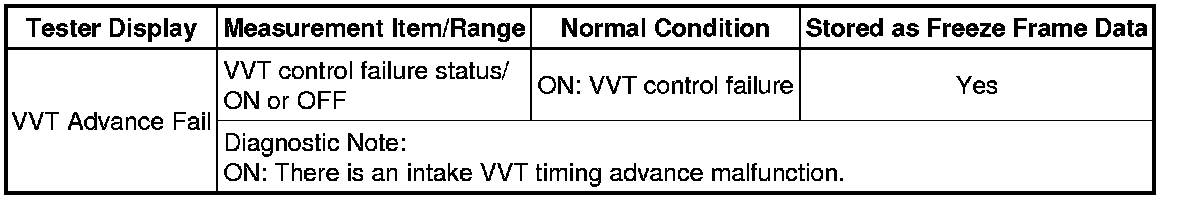

VVT Advance Fail

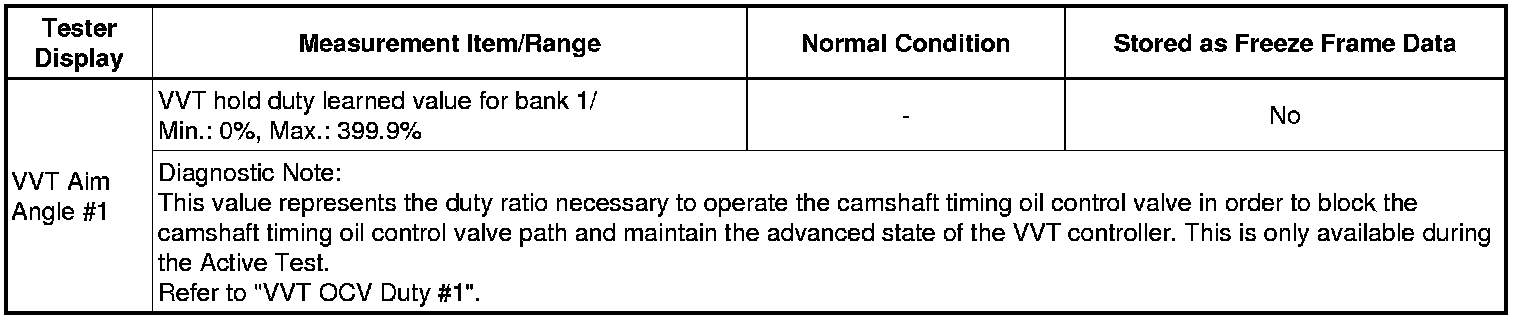

VVT Aim Angle #1

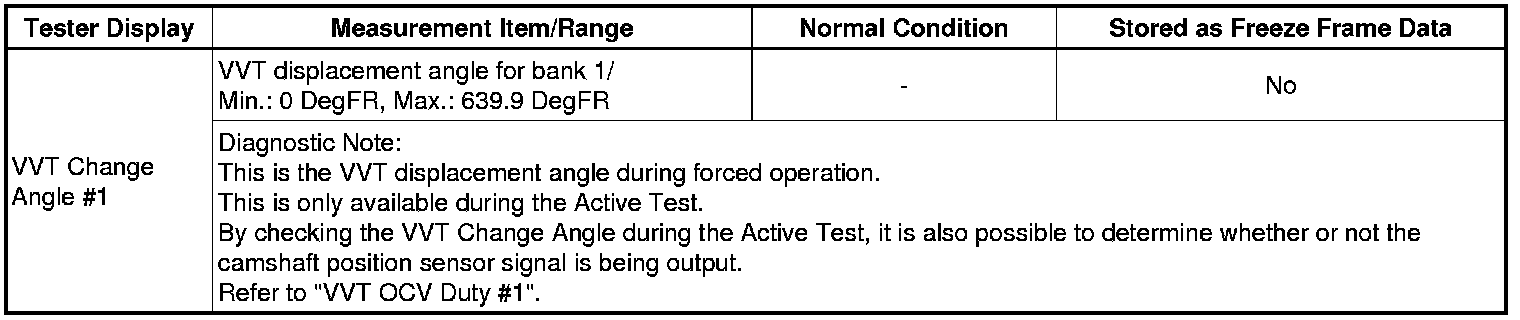

VVT Change Angle #1

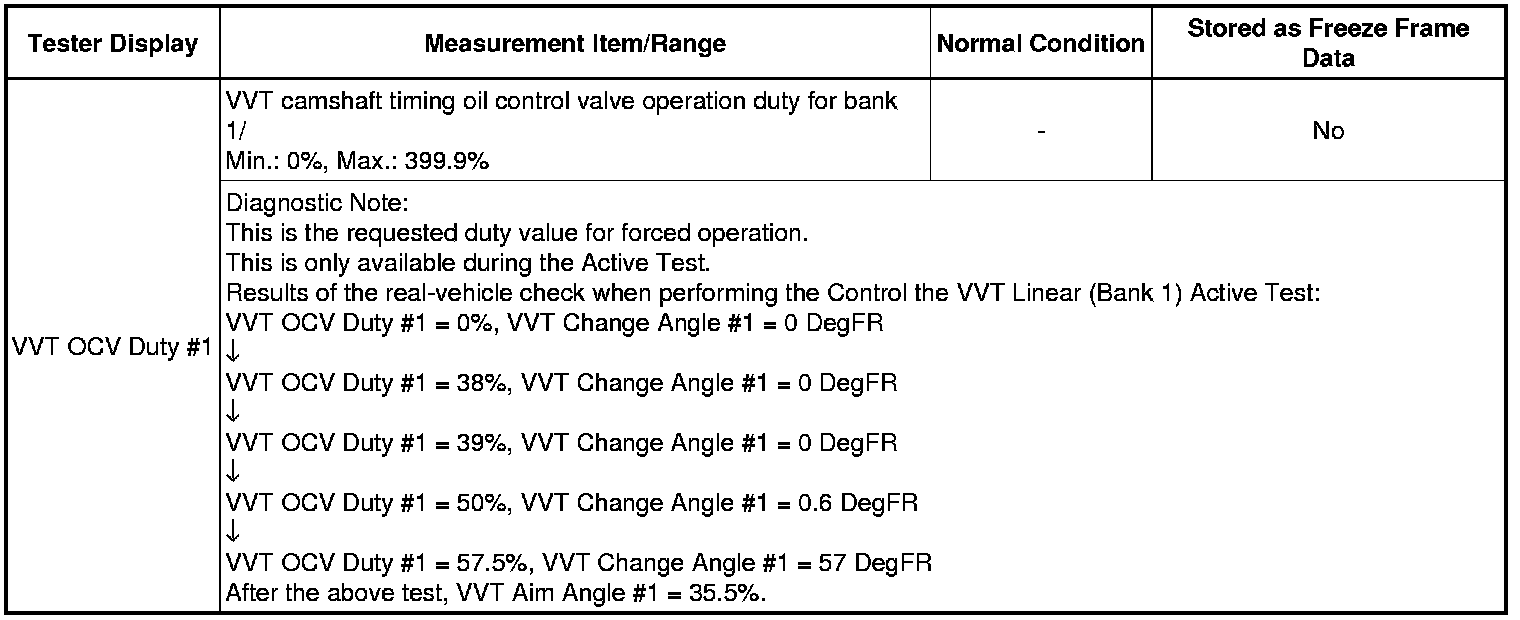

VVT OCV Duty #1

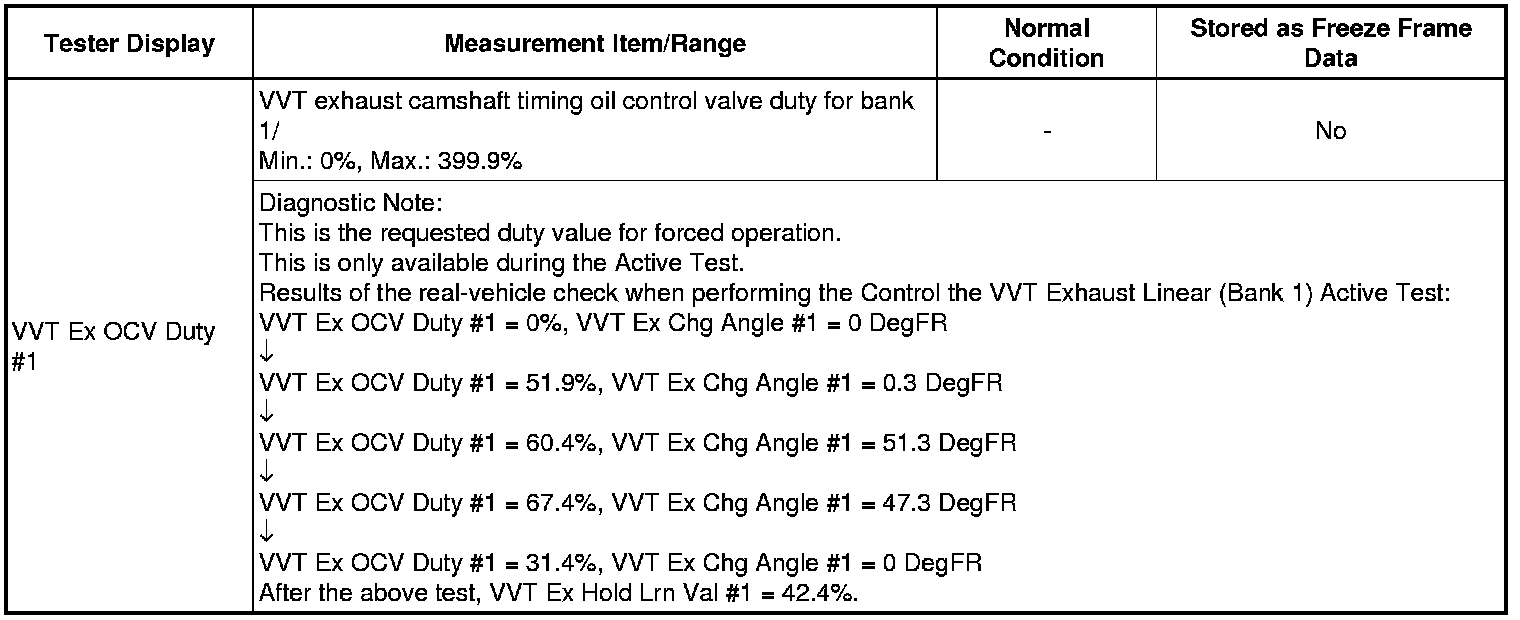

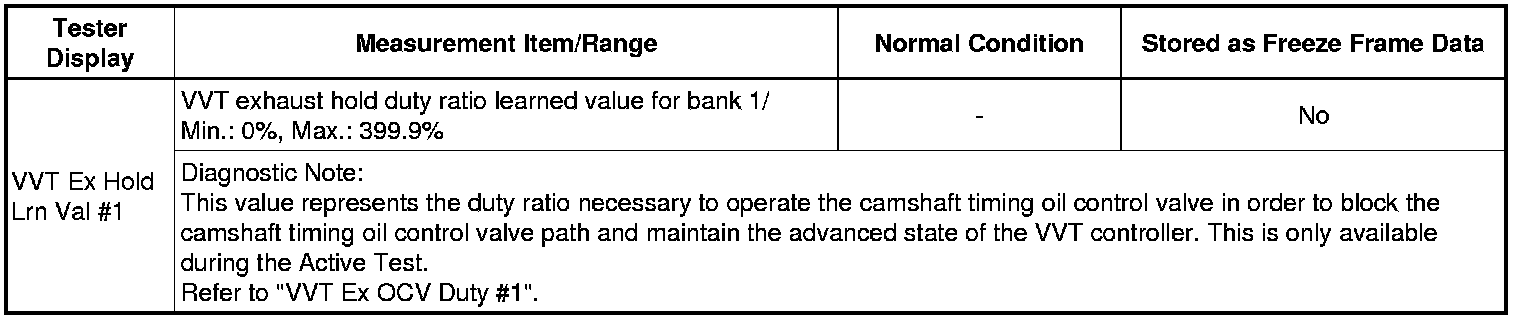

VVT Ex Hold Lrn Val #1





VVT Ex Chg Angle #1





VVT Ex OCV Duty #1





15. Catalyst (Gas CAT Converter)

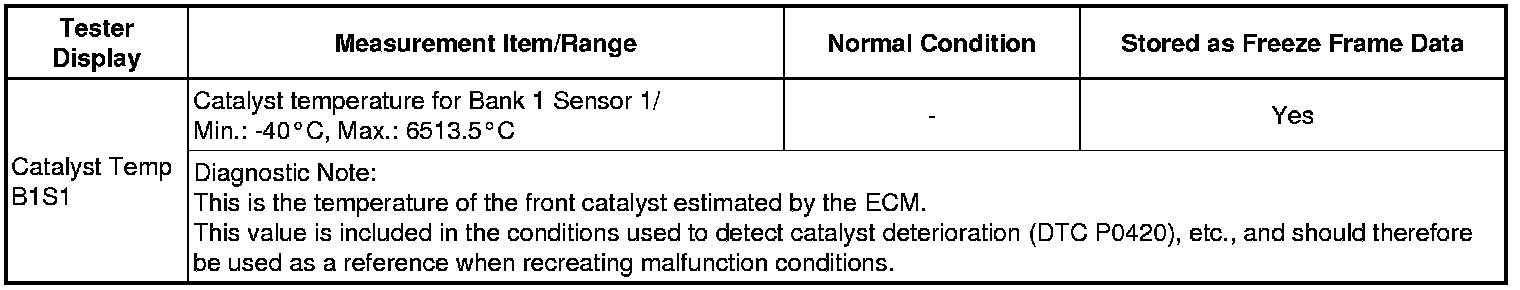

Catalyst Temp B1S1





Catalyst Temp B1S2





16. Various Vehicle Conditions 2 (All Data)

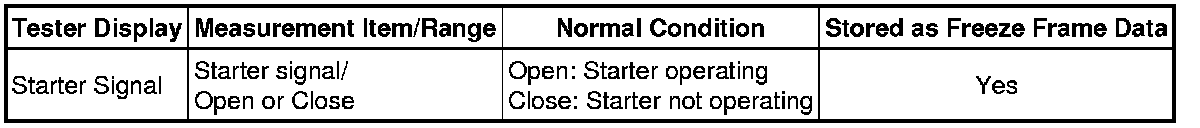

Starter Signal





Power Steering Signal

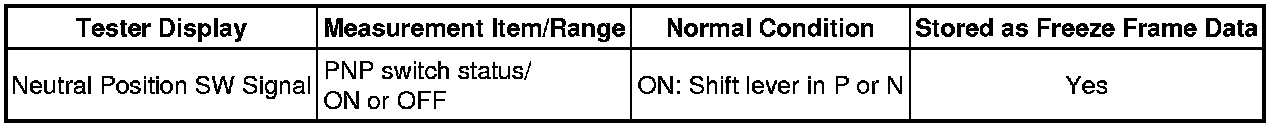

Neutral Position SW Signal

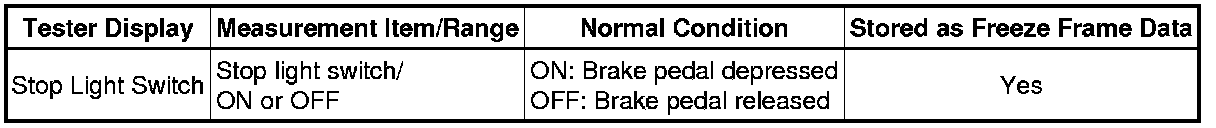

Stop Light Switch

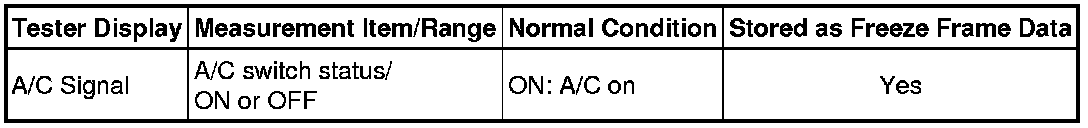

A/C Signal





Closed Throttle Position SW

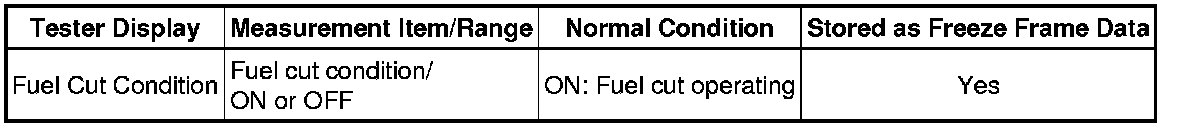

Fuel Cut Condition

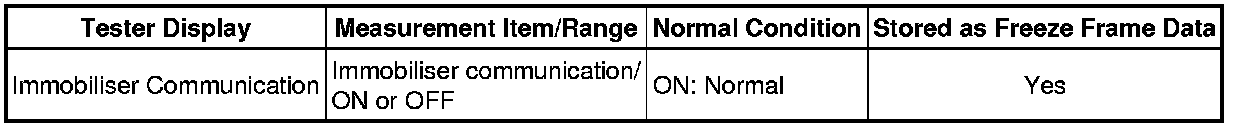

Immobiliser Communication





17. Check Mode (Check Mode)

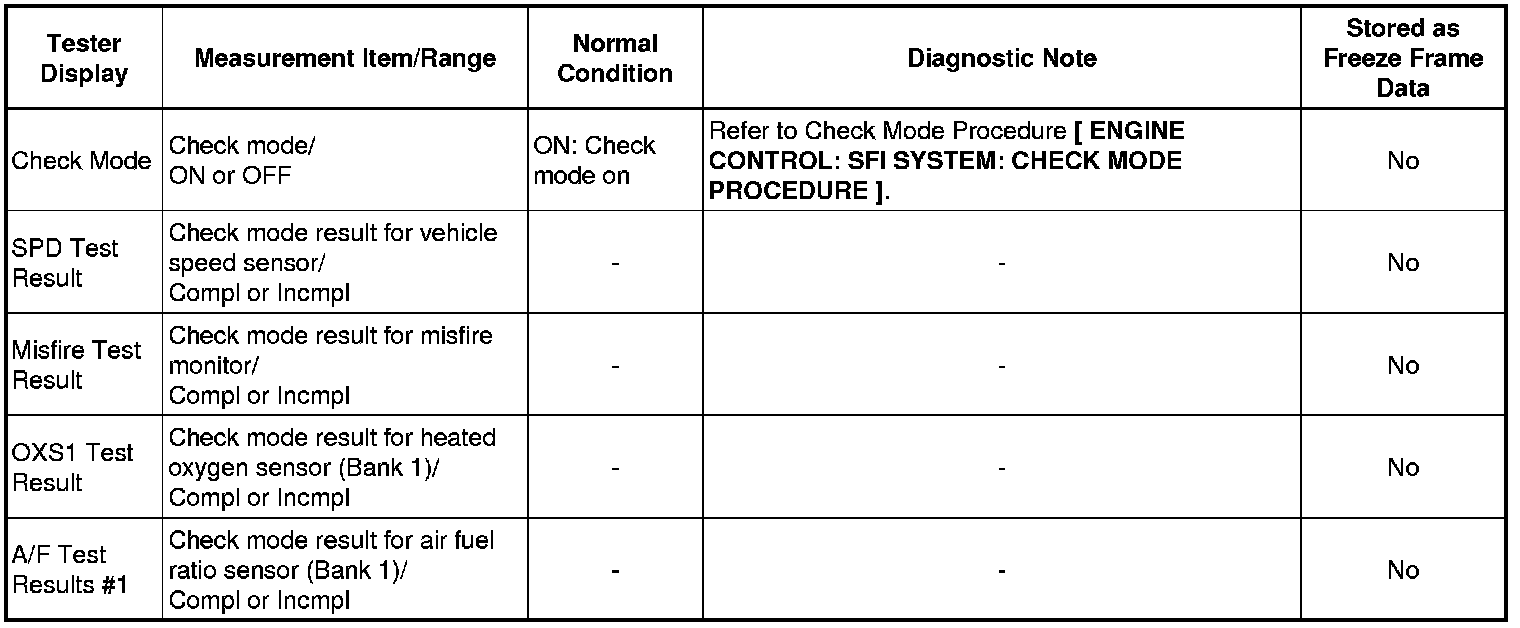

Check Mode

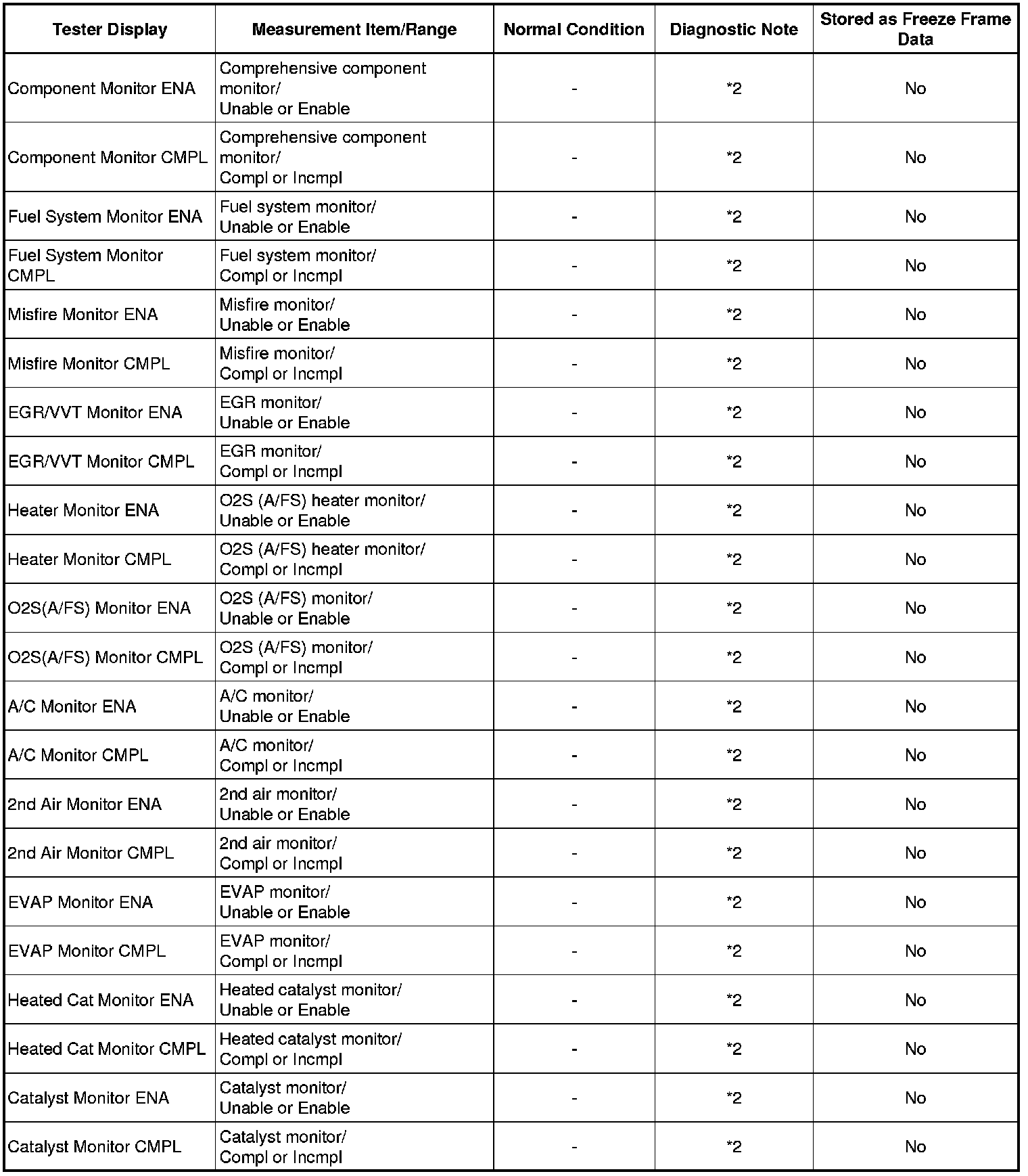

18. Test Result (Monitor Status)

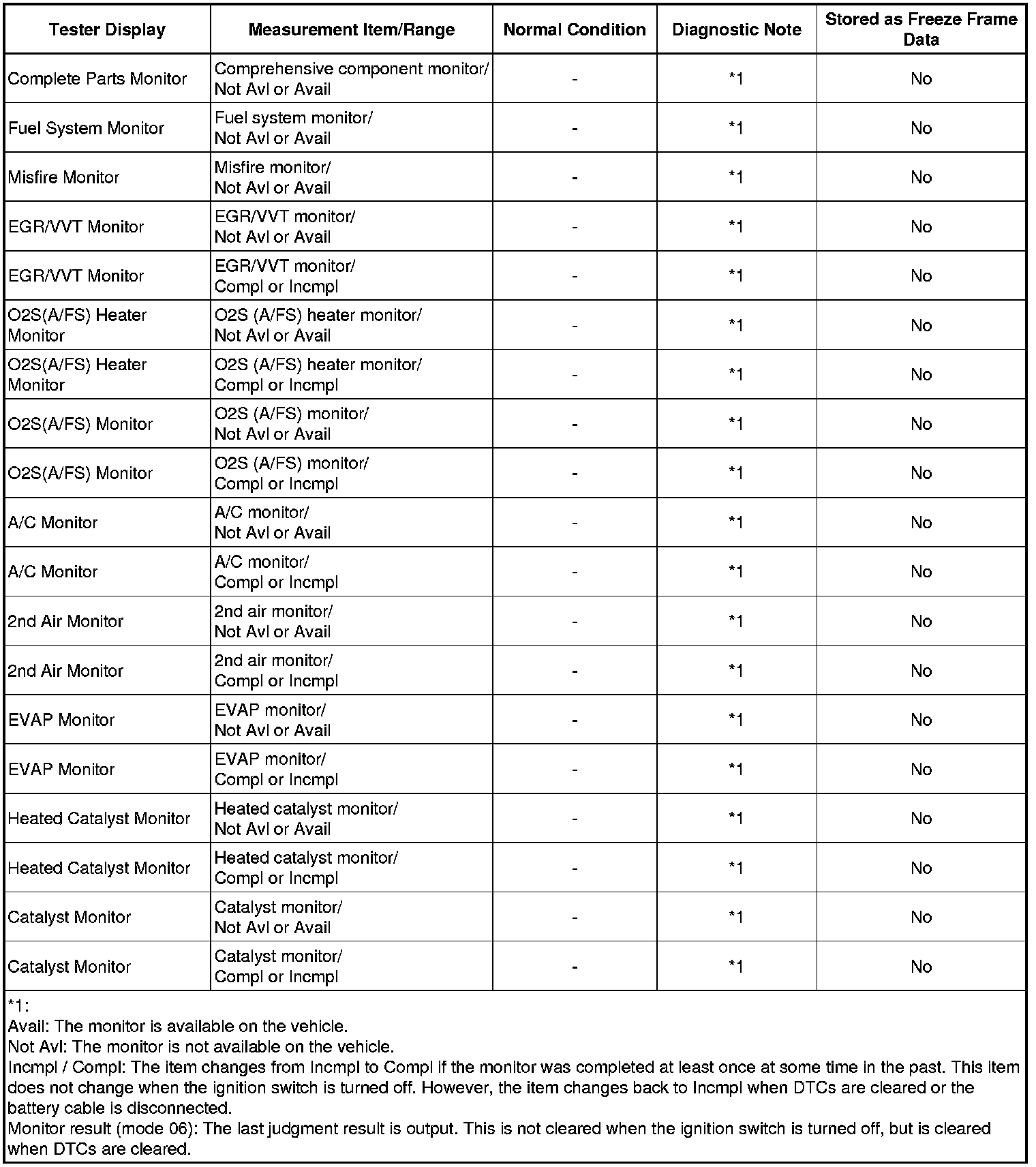

Monitor Information 1

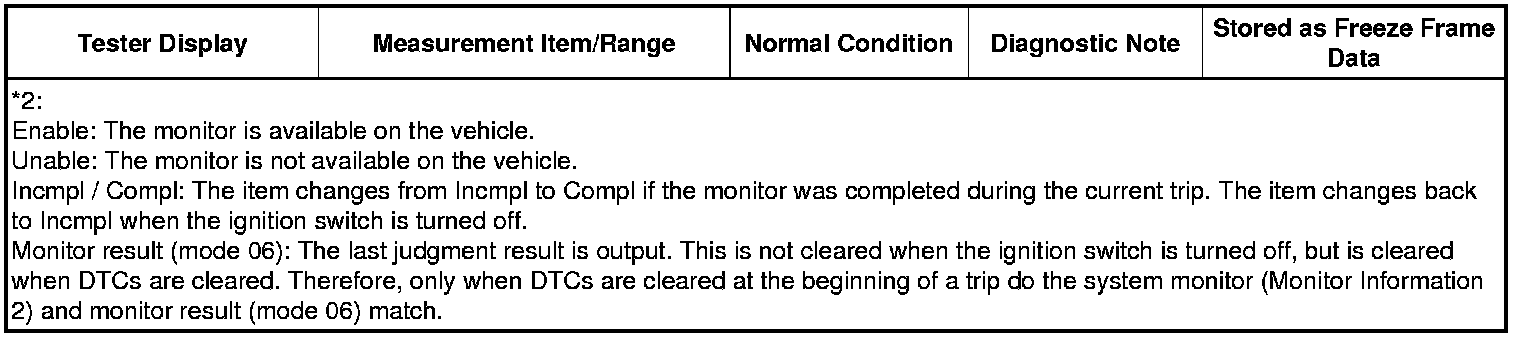

Monitor Information 2









19. Various Vehicle Conditions 3 (All Data)

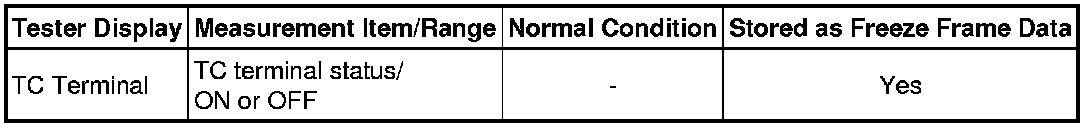

TC Terminal

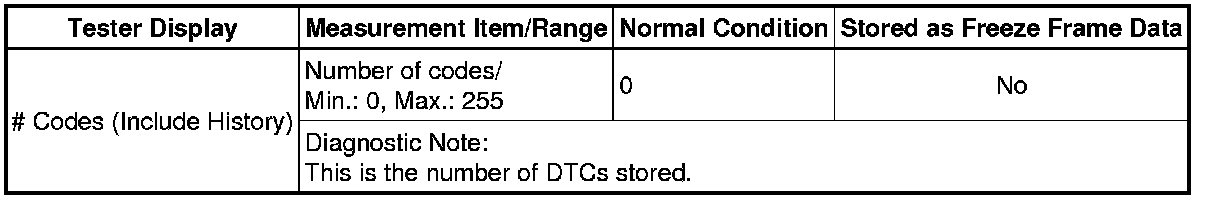

# Codes (Include History)

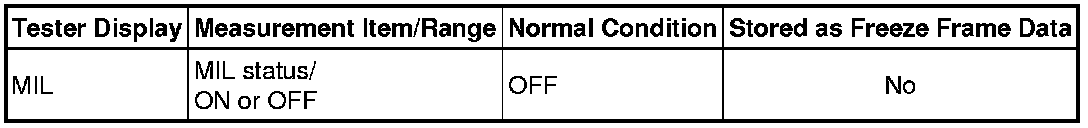

MIL

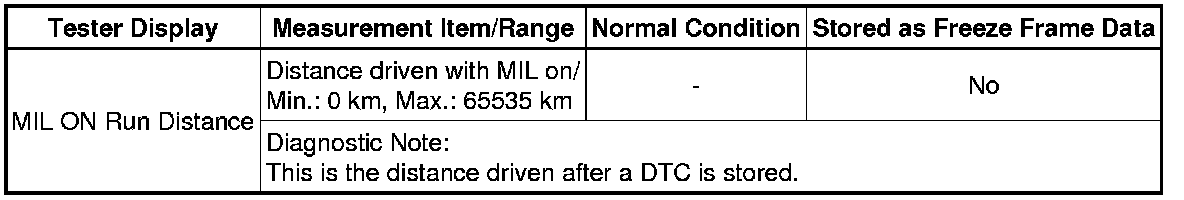

MIL ON Run Distance

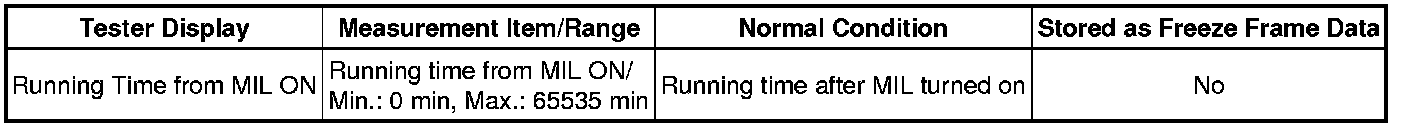

Running Time from MIL ON

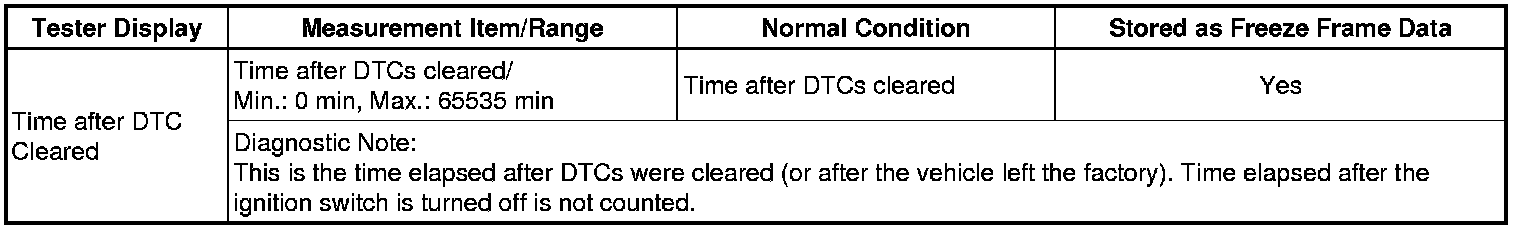

Time after DTC Cleared

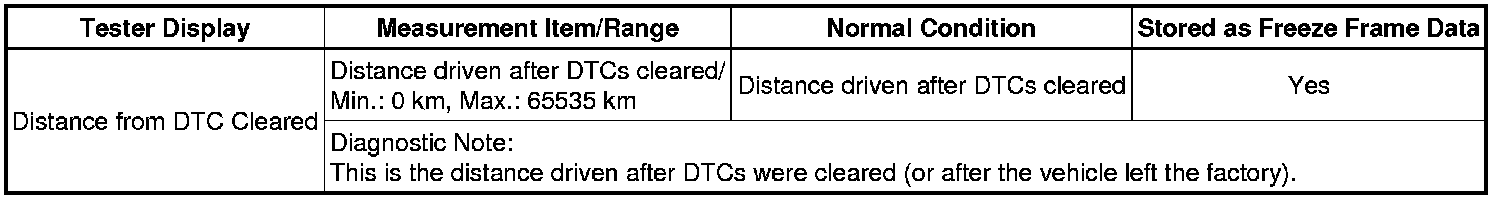

Distance from DTC Cleared

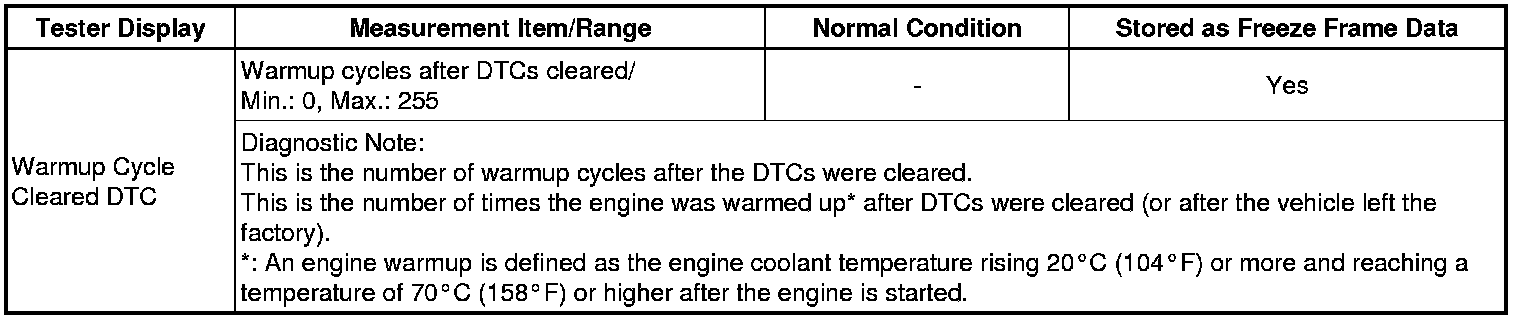

Warmup Cycle Cleared DTC

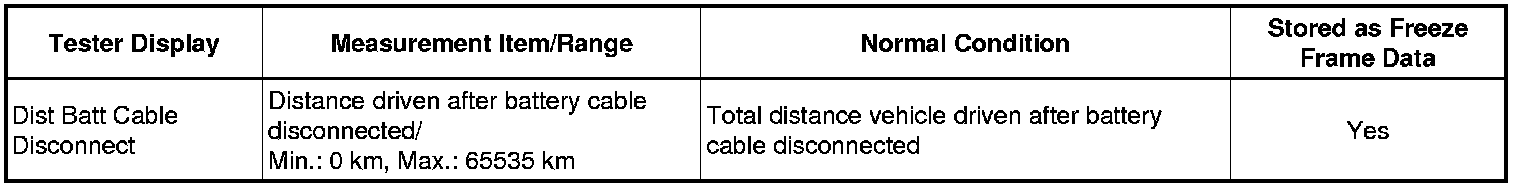

Dist Batt Cable Disconnect

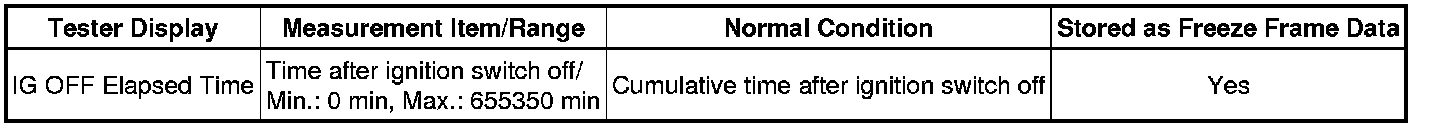

IG OFF Elapsed Time





OBD Requirements

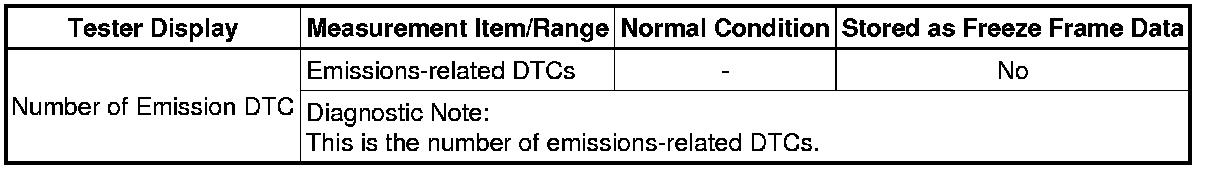

Number of Emission DTC

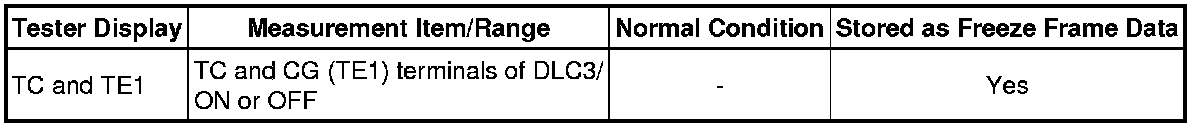

TC and TE1





20. Misfire (Gas Misfire)

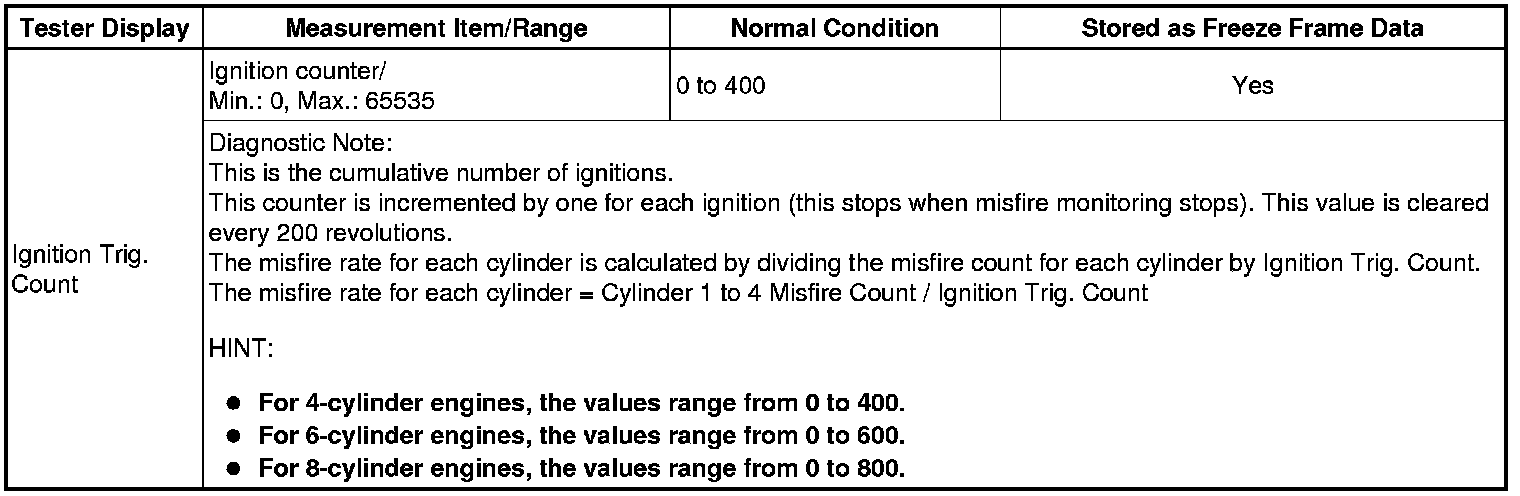

Ignition Trig. Count





Cylinder #1 Misfire Count to Cylinder #4 Misfire Count

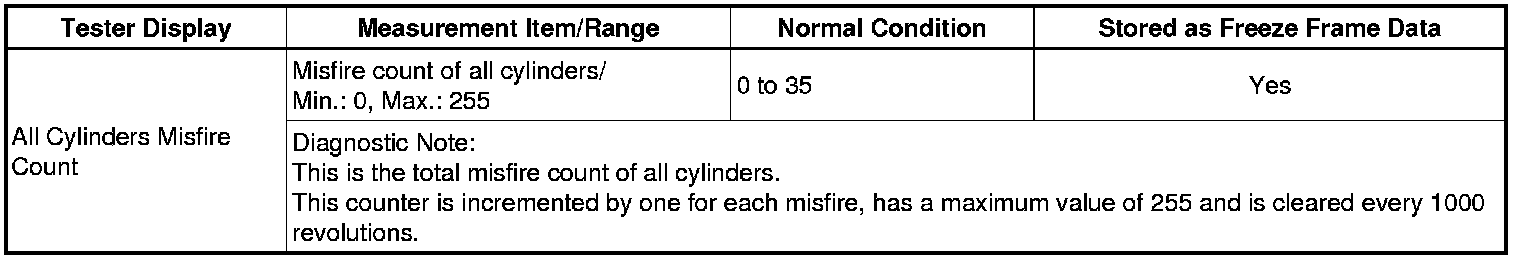

All Cylinders Misfire Count

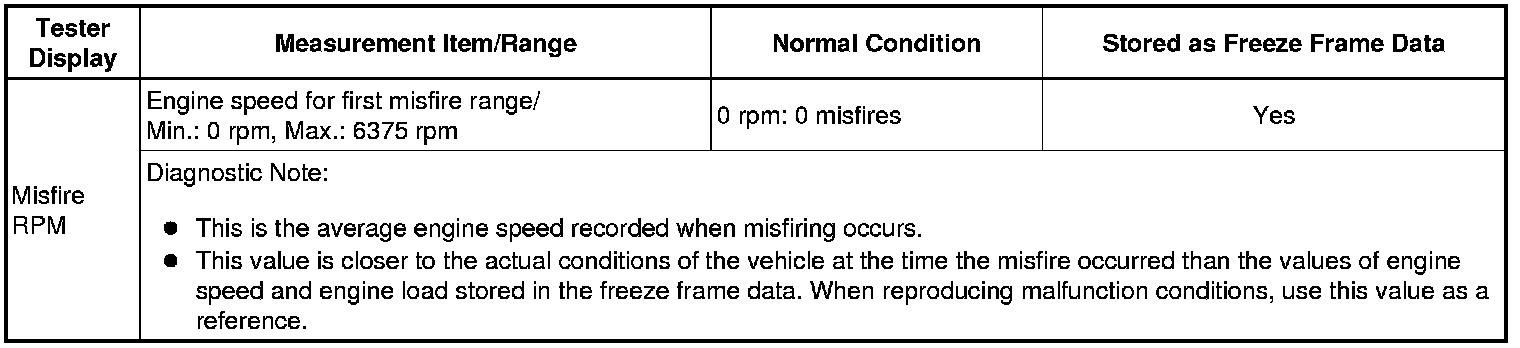

Misfire RPM

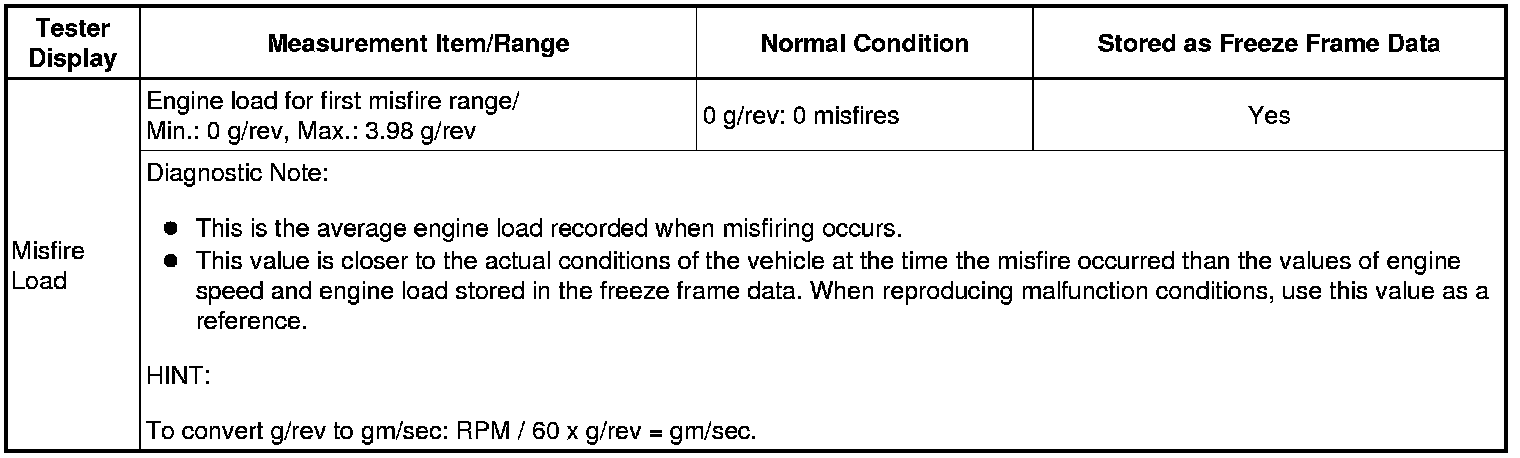

Misfire Load

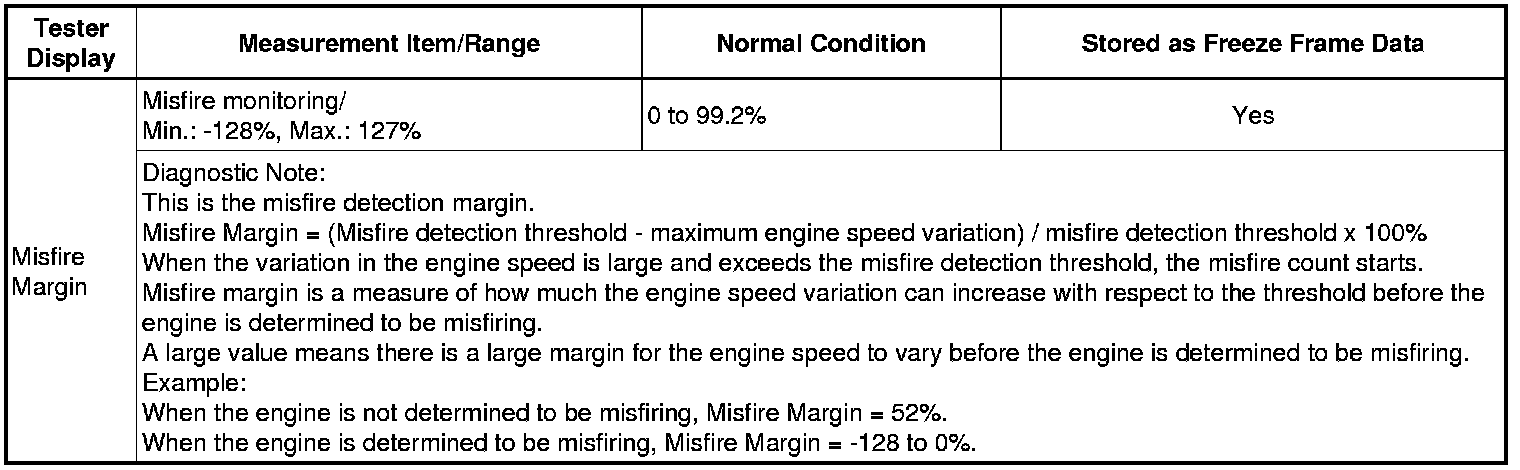

Misfire Margin

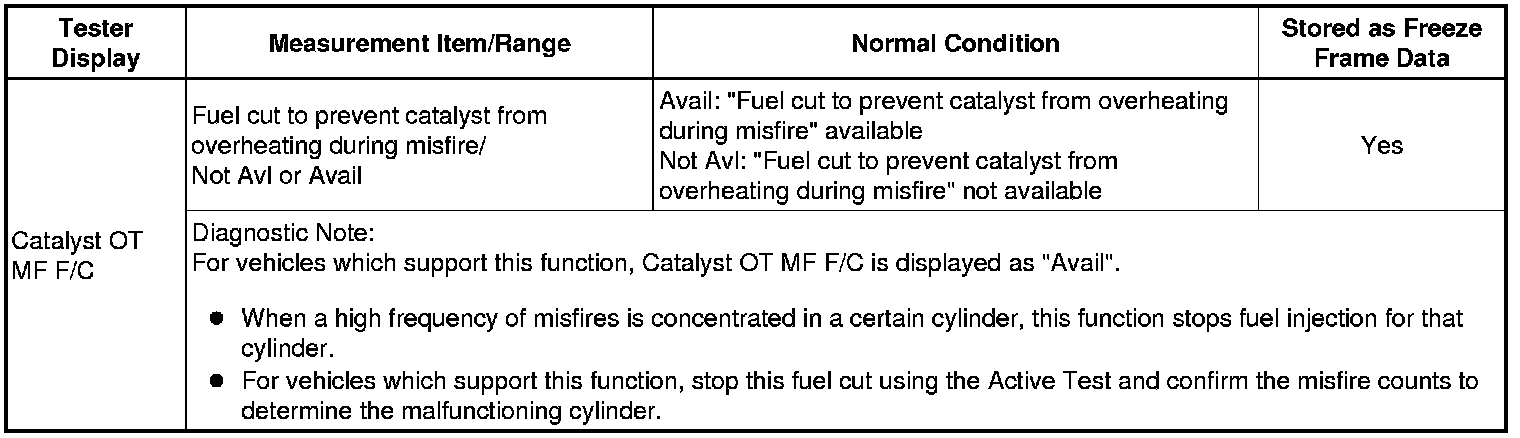

Catalyst OT MF F/C

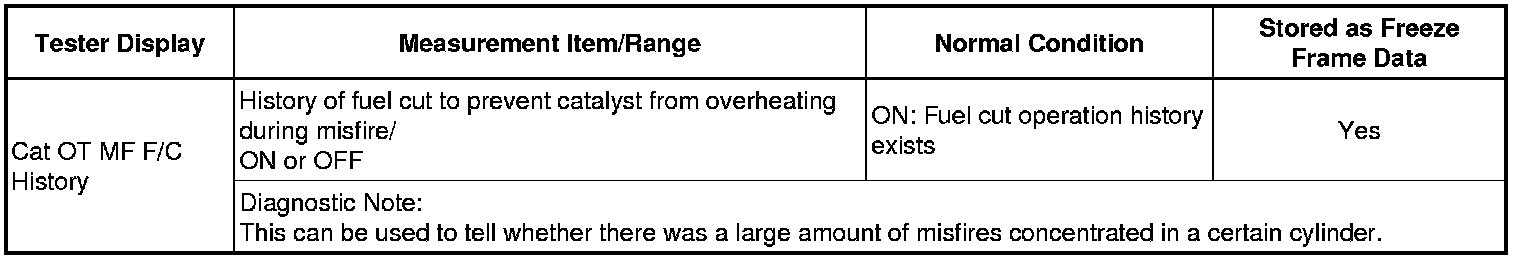

Cat OT MF F/C History

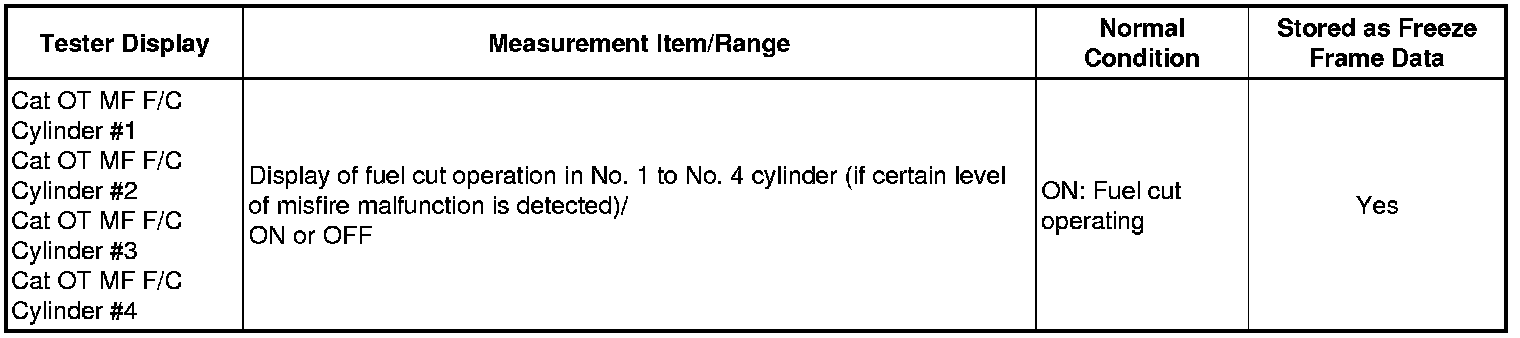

Cat OT MF F/C Cylinder #1 to #4





21. Various Vehicle Conditions 4 (All Data)

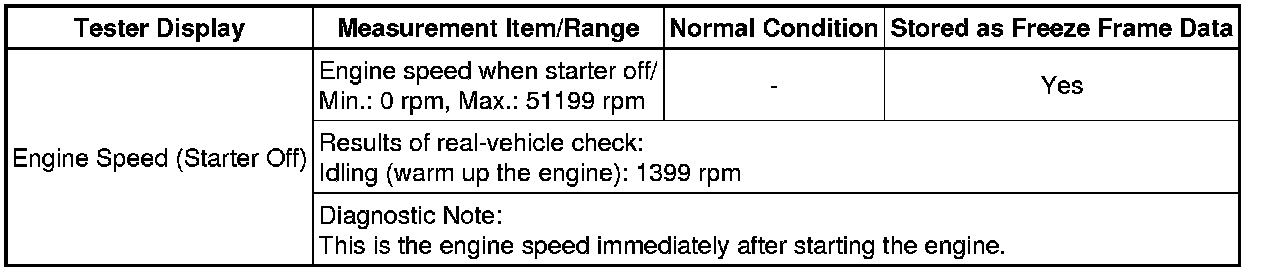

Engine Speed (Starter Off)

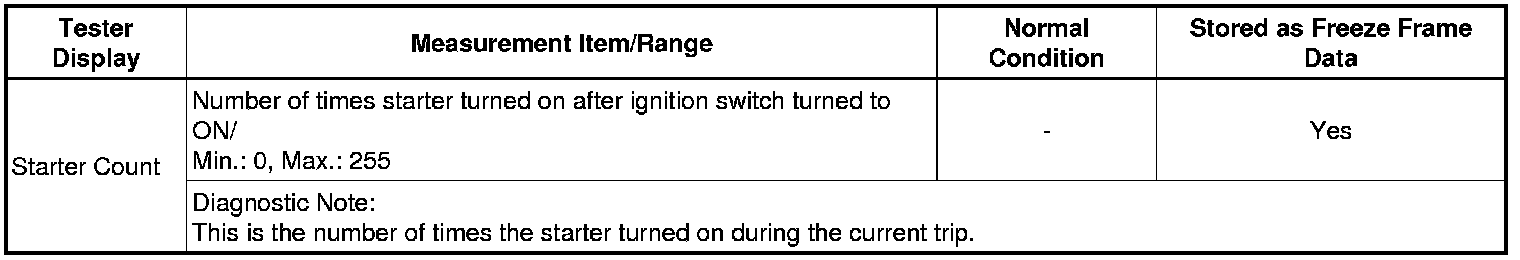

Starter Count

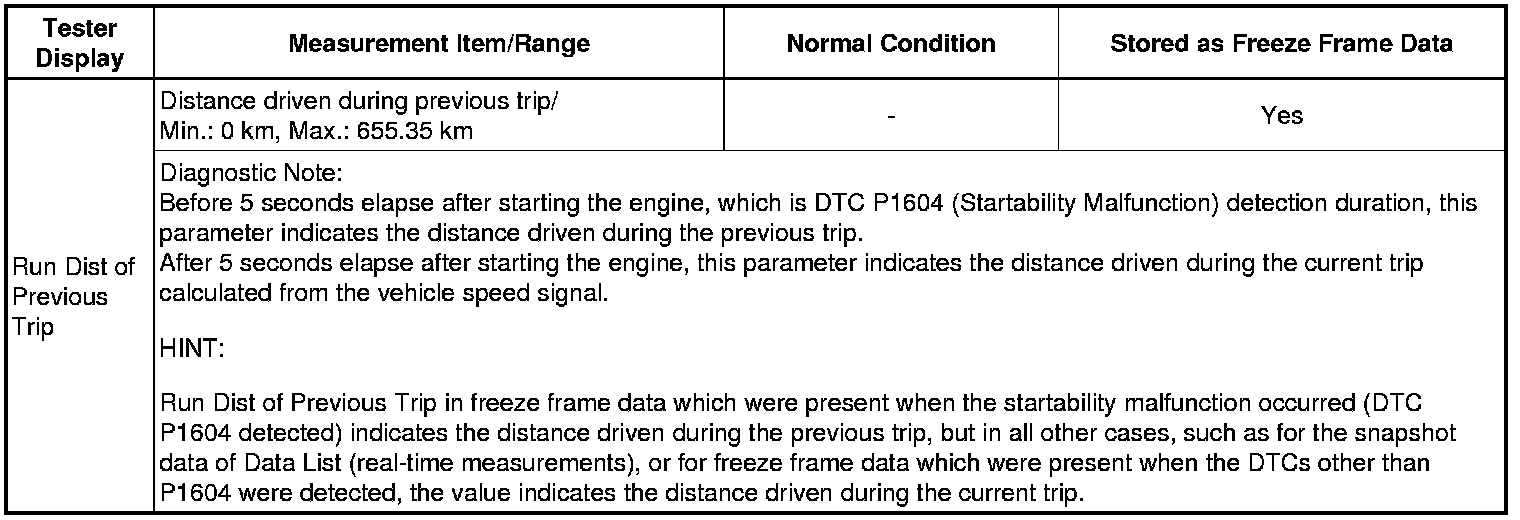

Run Dist of Previous Trip

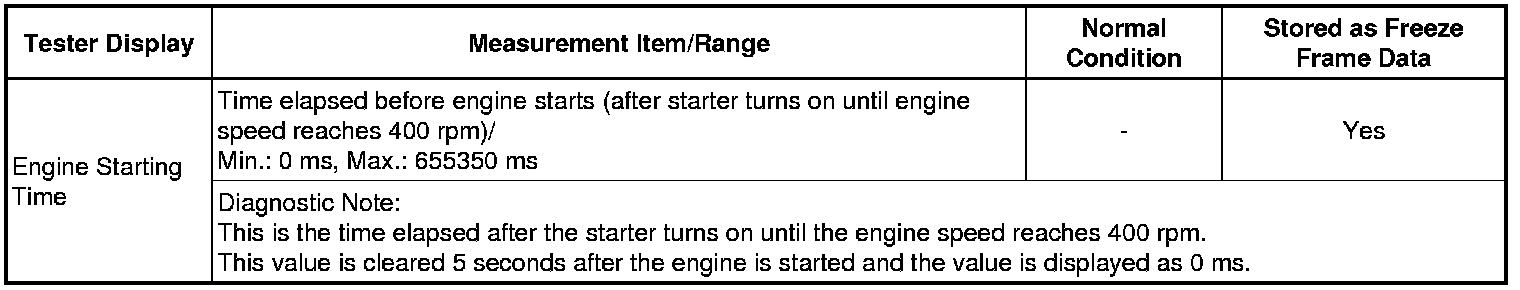

Engine Starting Time

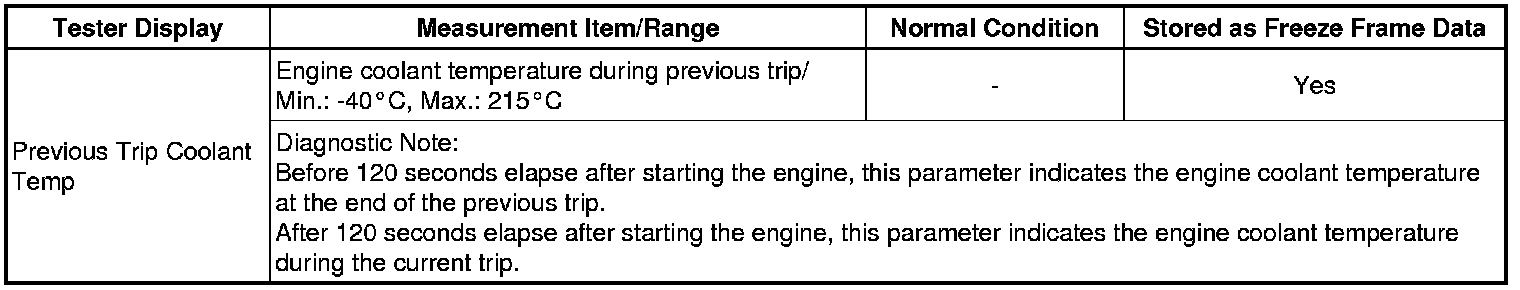

Previous Trip Coolant Temp

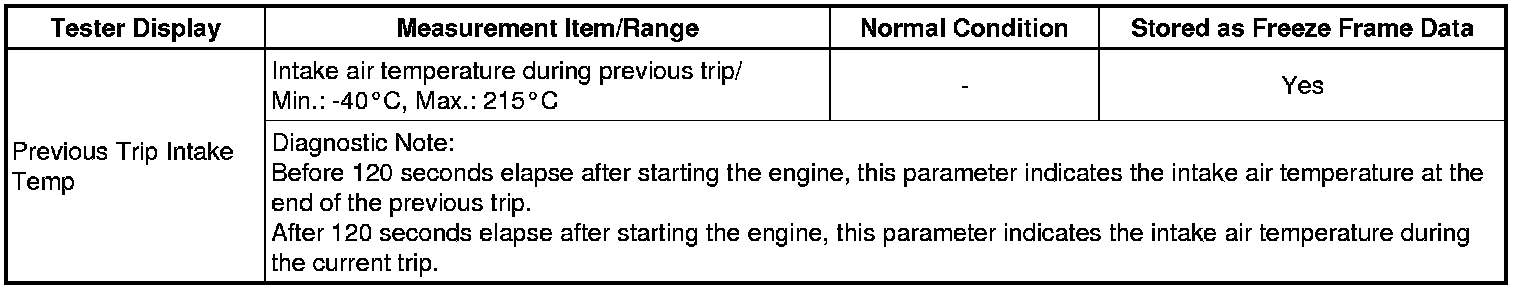

Previous Trip Intake Temp

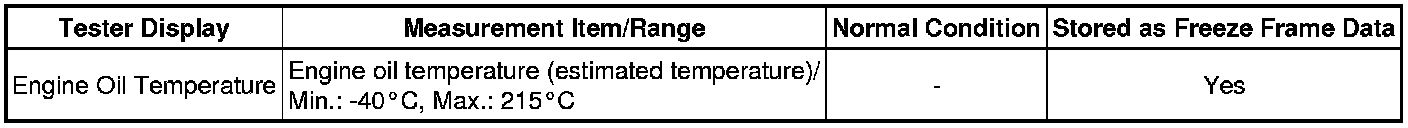

Engine Oil Temperature

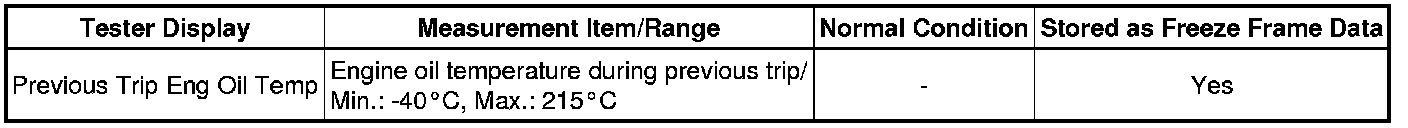

Previous Trip Eng Oil Temp

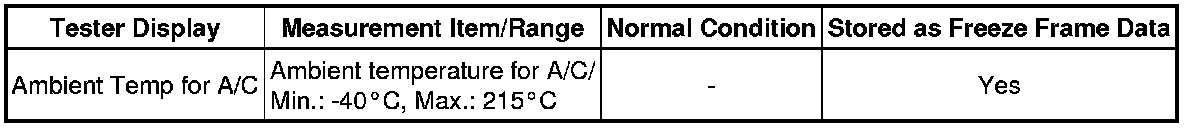

Ambient Temp for A/C

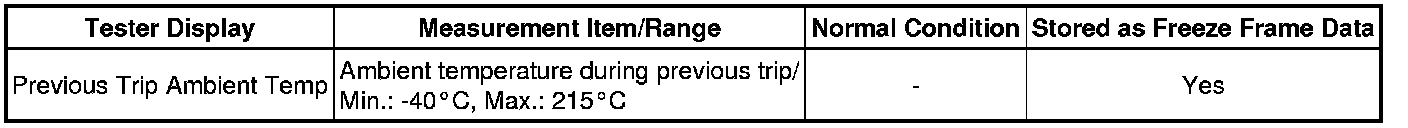

Previous Trip Ambient Temp

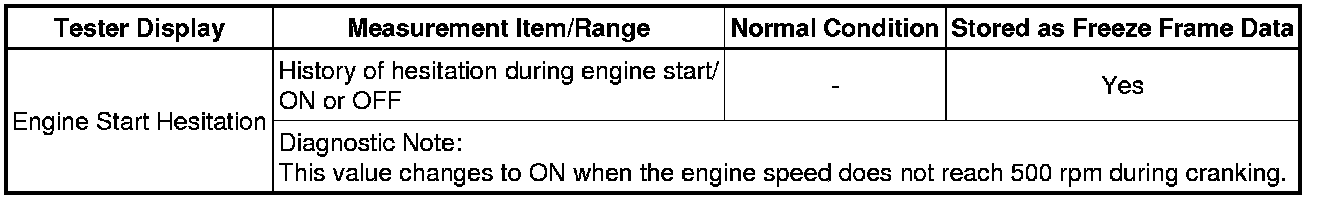

Engine Start Hesitation

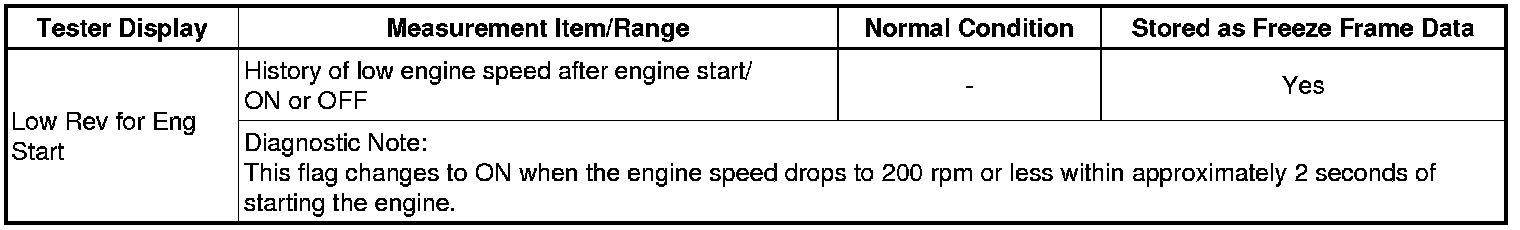

Low Rev for Eng Start

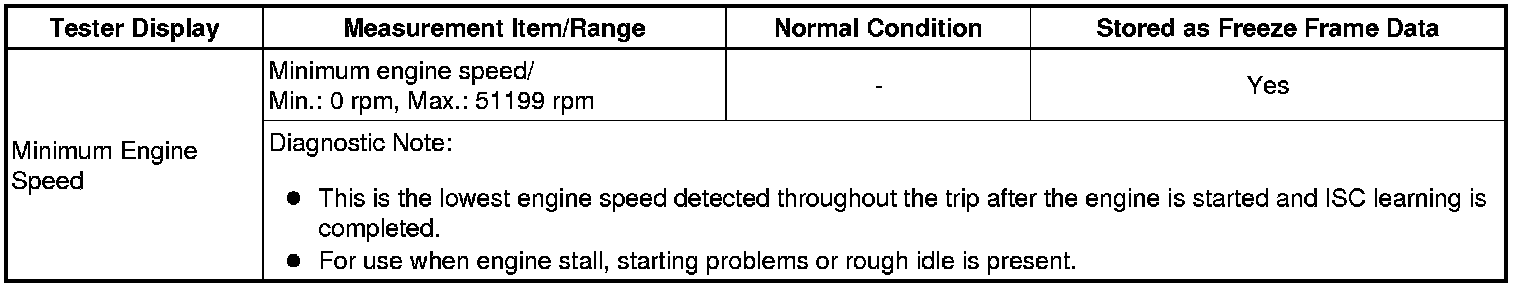

Minimum Engine Speed

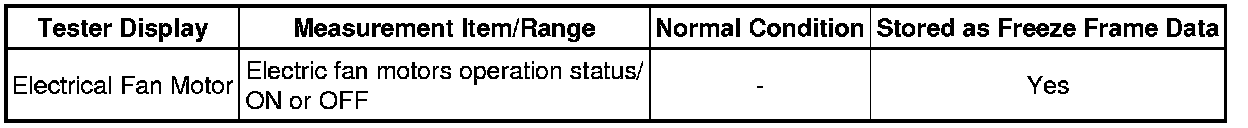

Electrical Fan Motor

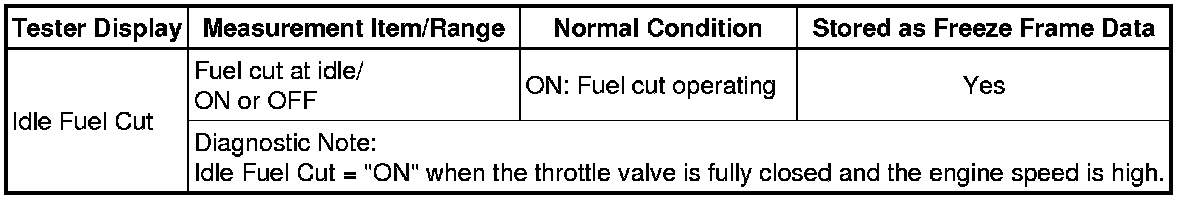

Idle Fuel Cut

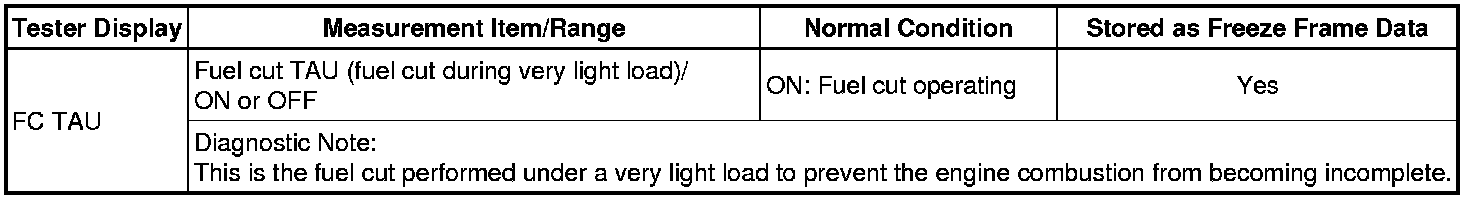

FC TAU

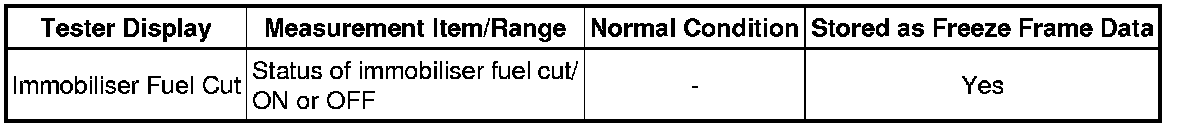

Immobiliser Fuel Cut

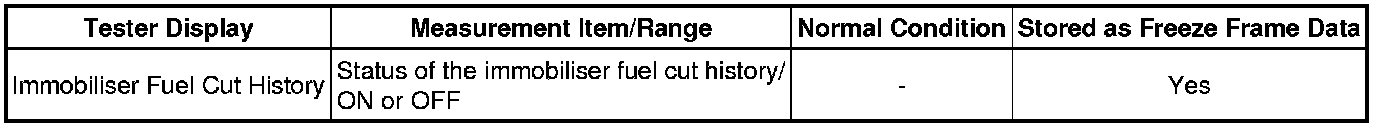

Immobiliser Fuel Cut History
