Part 2

1NR-FE ENGINE CONTROL: SFI SYSTEM: DATA LIST / ACTIVE TEST

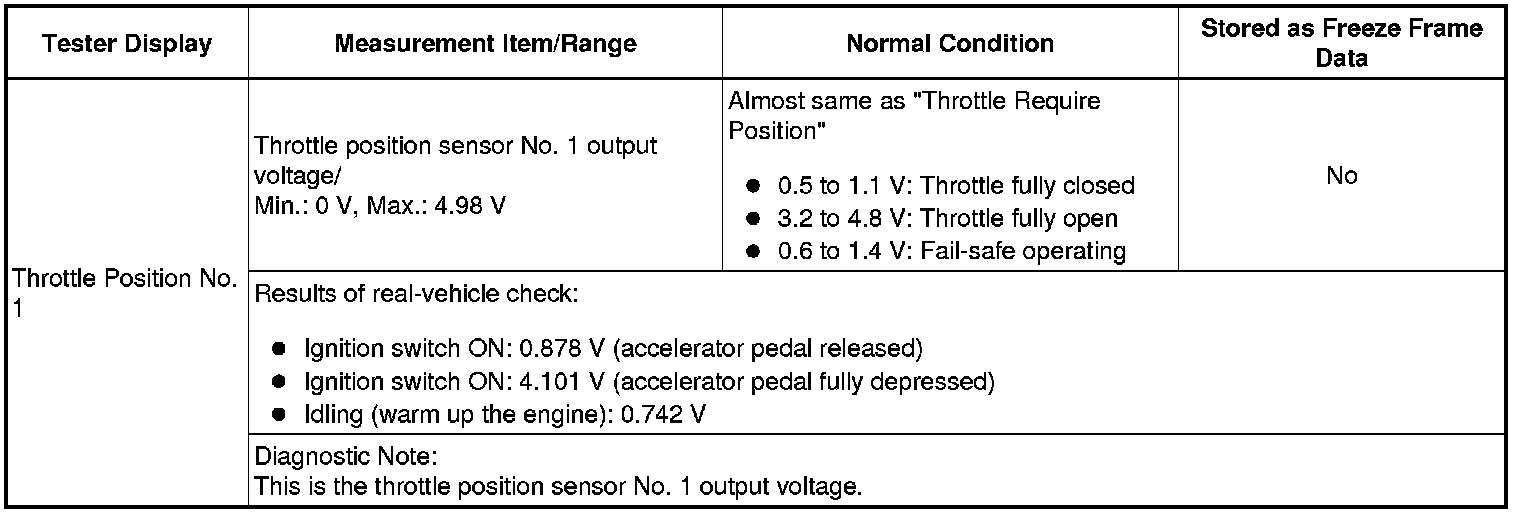

Throttle Position No. 1

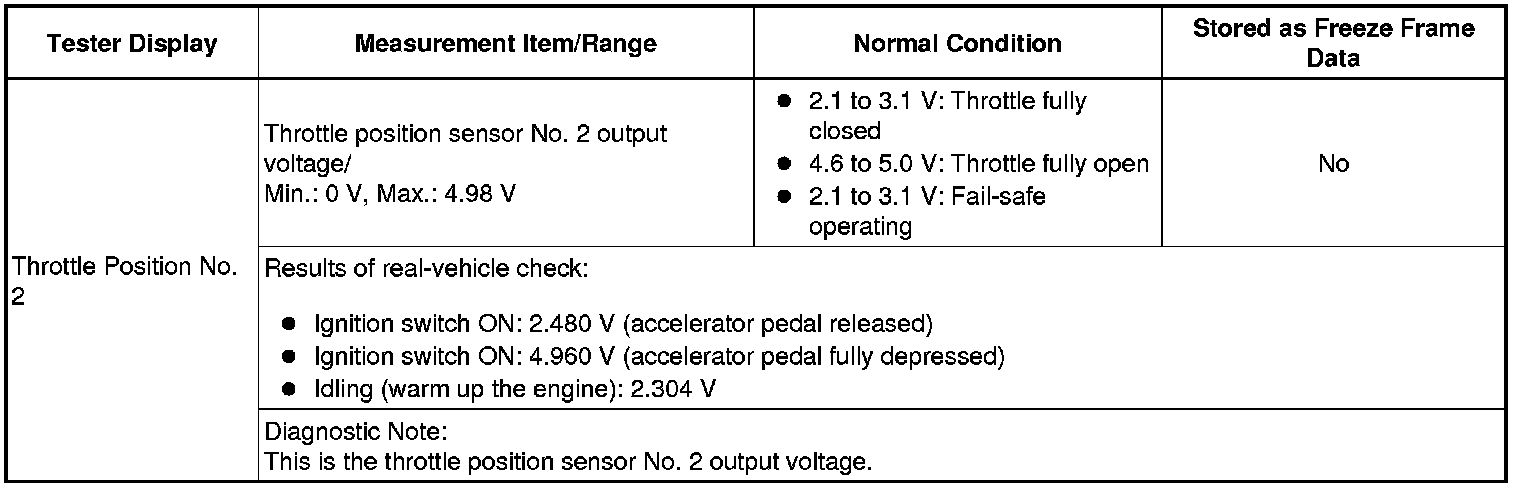

Throttle Position No. 2

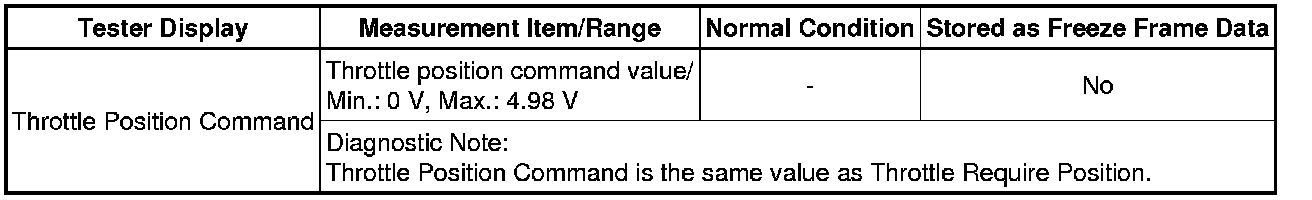

Throttle Position Command





Throttle Sens Open Pos #1

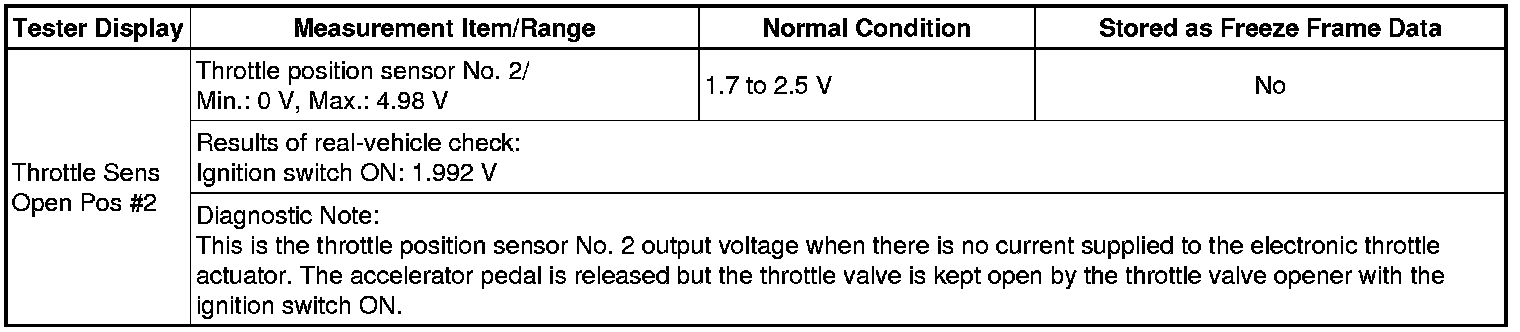

Throttle Sens Open Pos #2

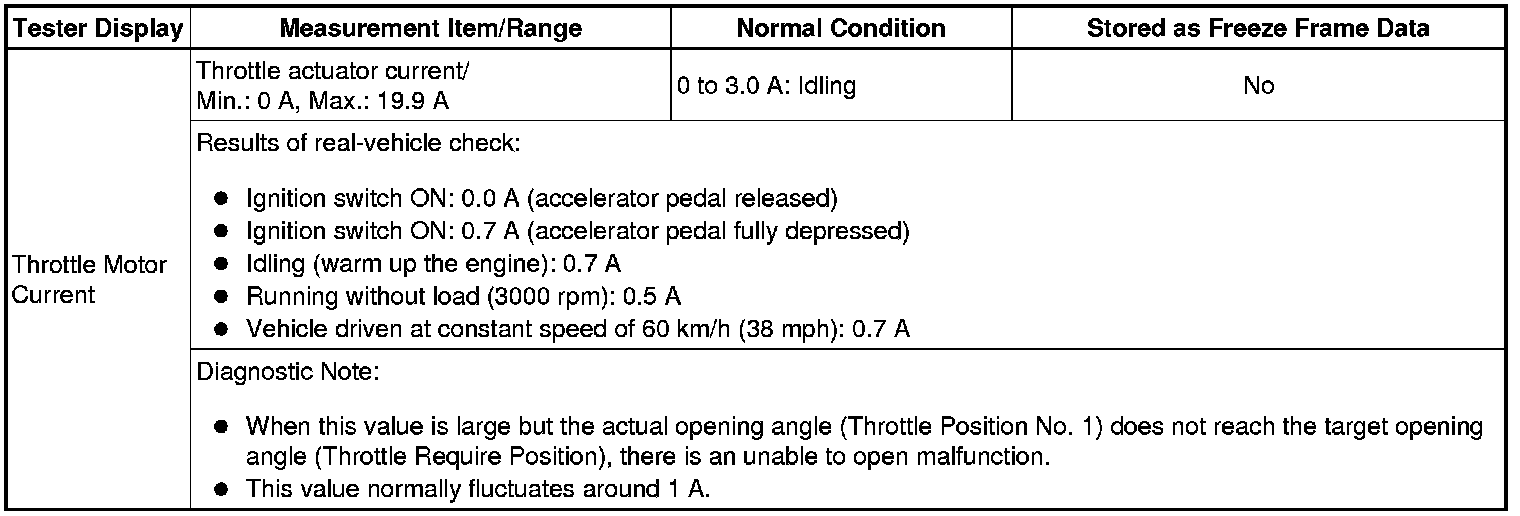

Throttle Motor Current

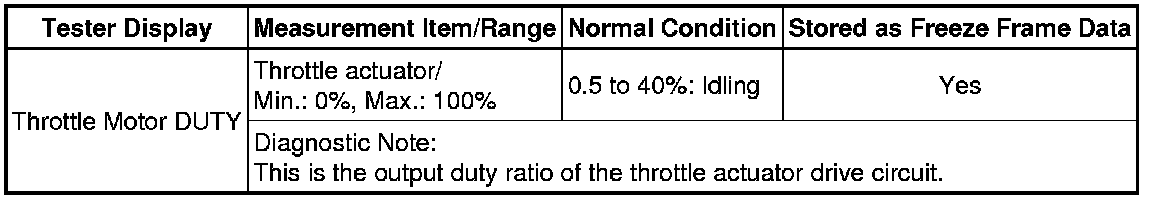

Throttle Motor DUTY

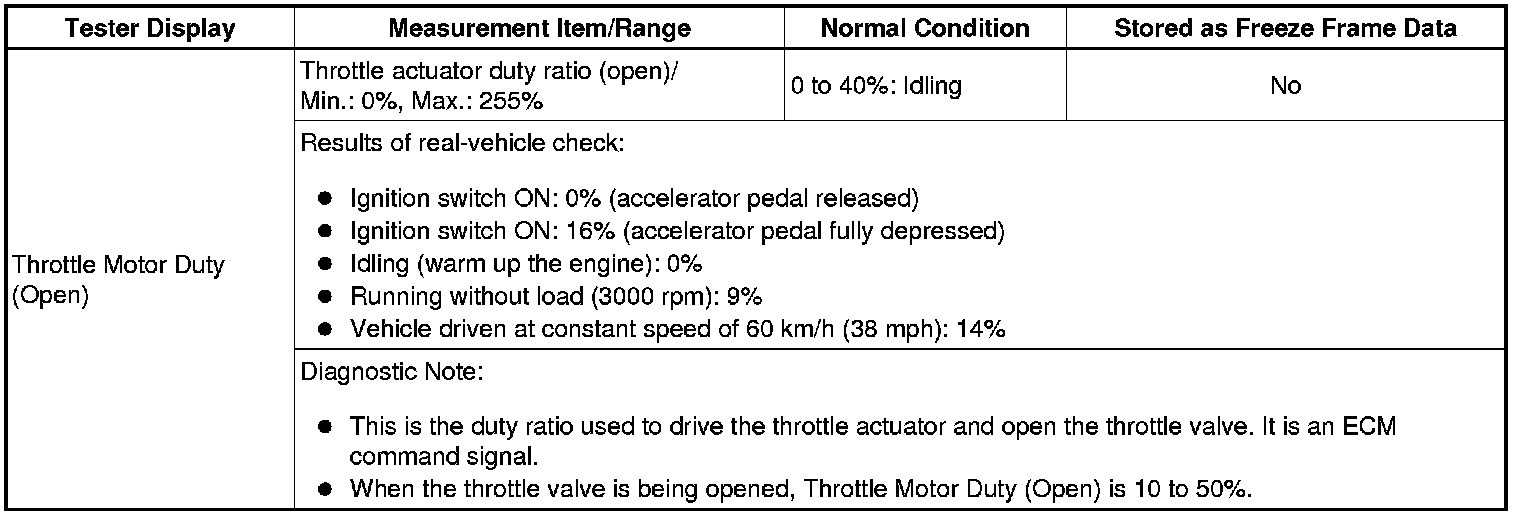

Throttle Motor Duty (Open)

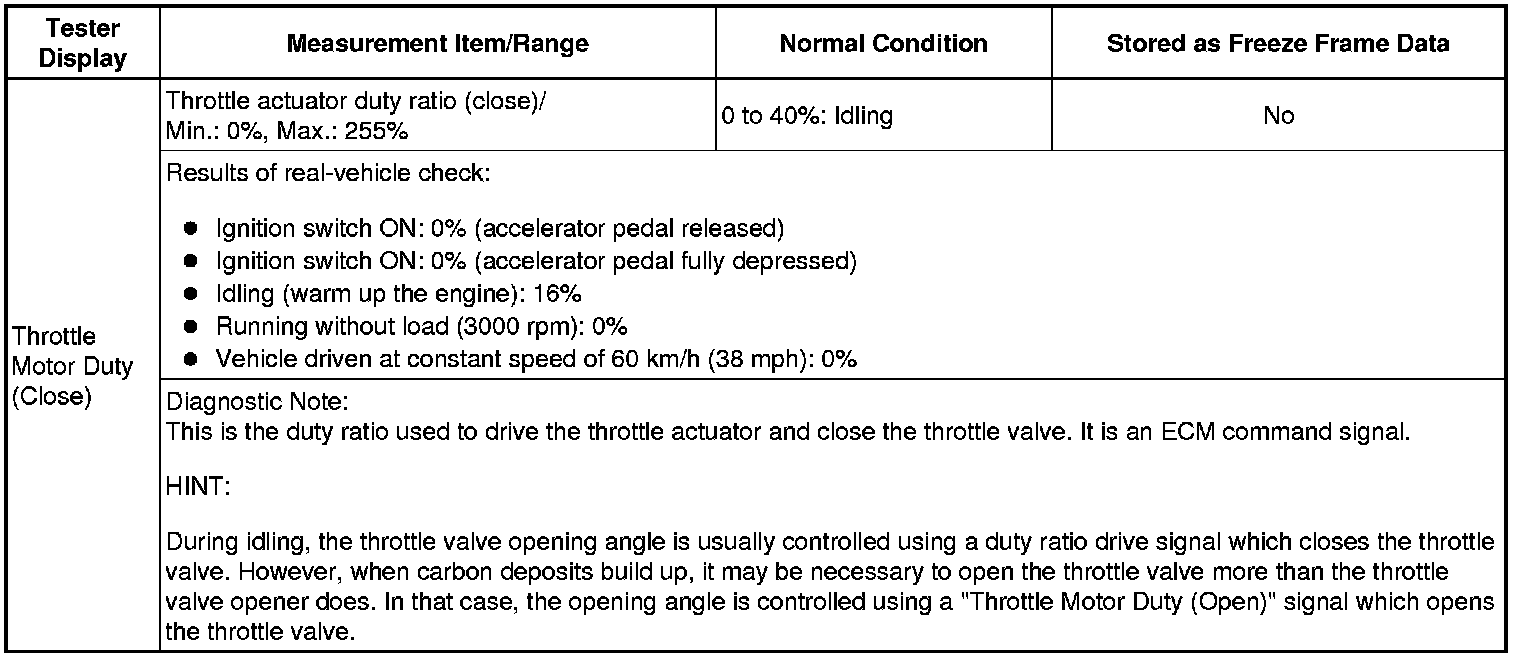

Throttle Motor Duty (Close)

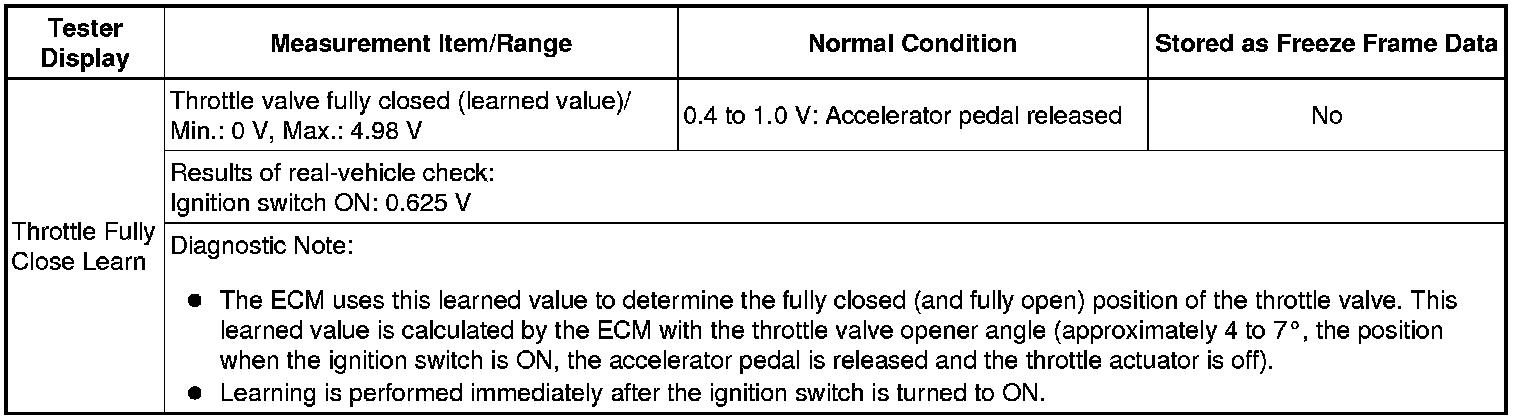

Throttle Fully Close Learn

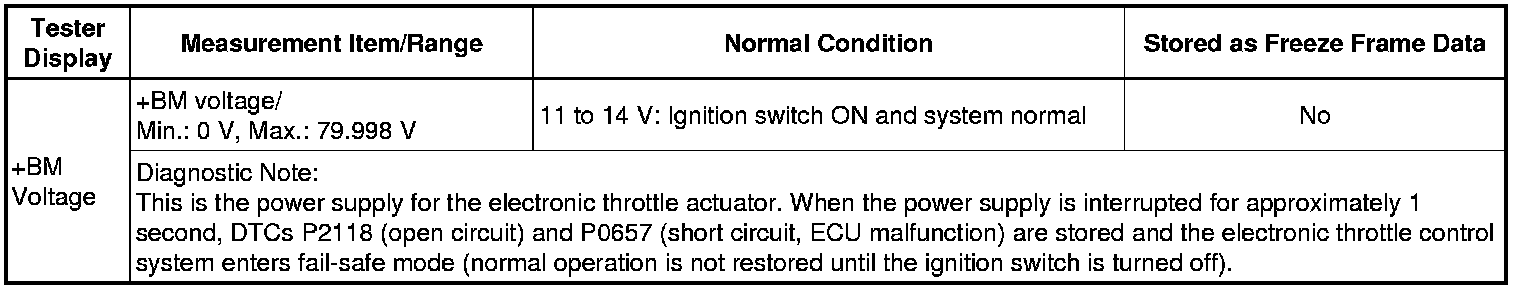

+BM Voltage

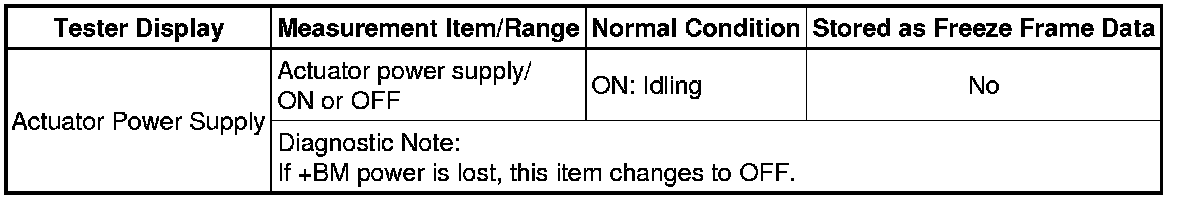

Actuator Power Supply

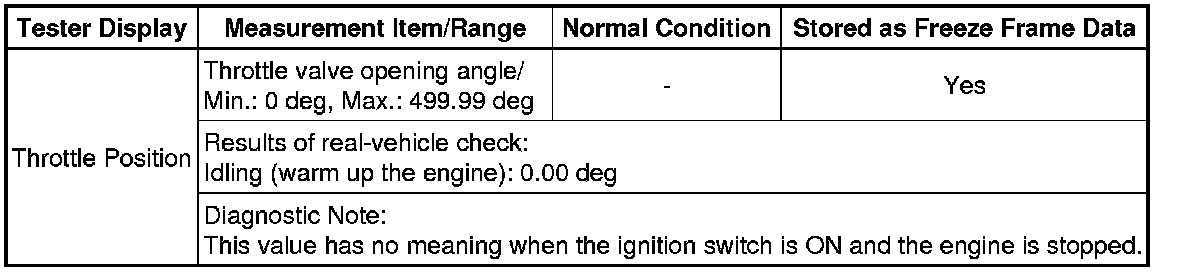

Throttle Position





6. Idle Speed Control (Gas Rough Idle)

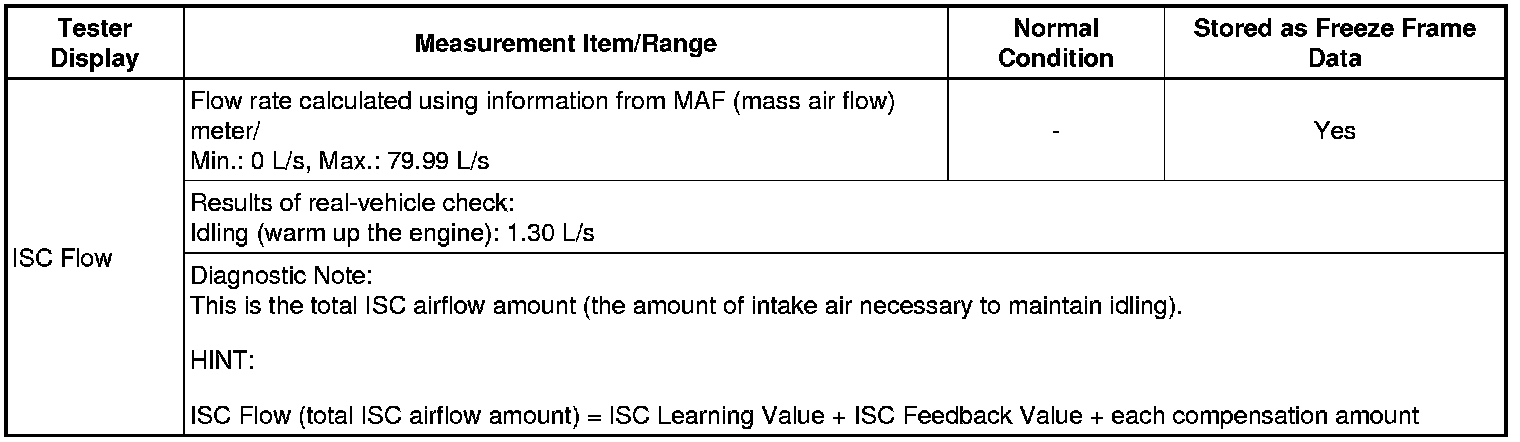

ISC Flow

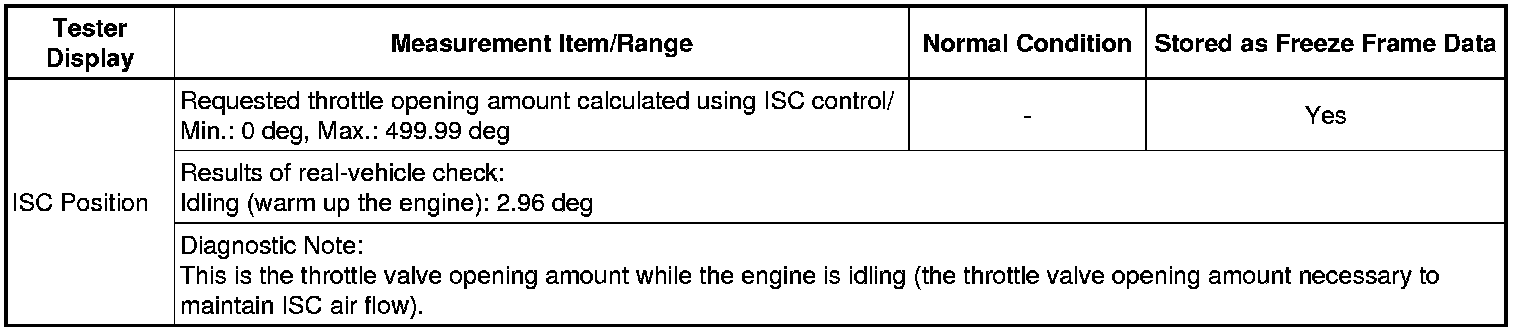

ISC Position

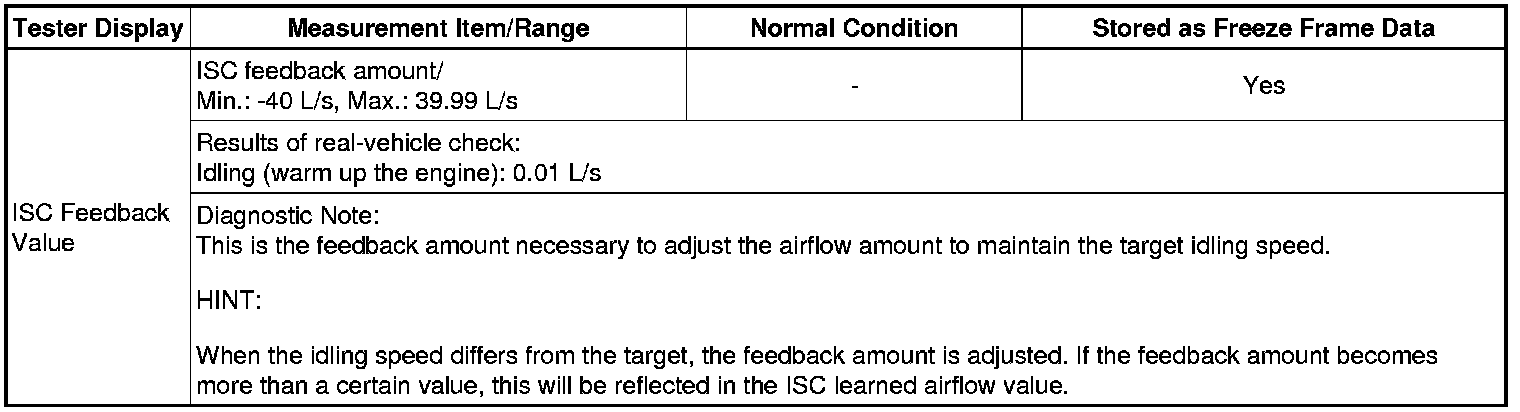

ISC Feedback Value

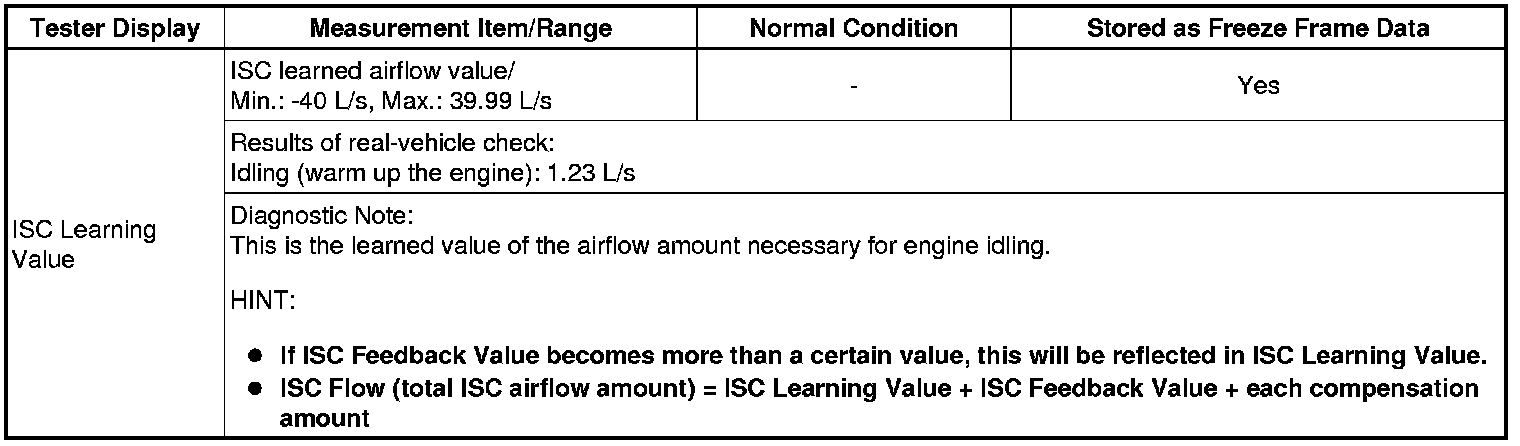

ISC Learning Value

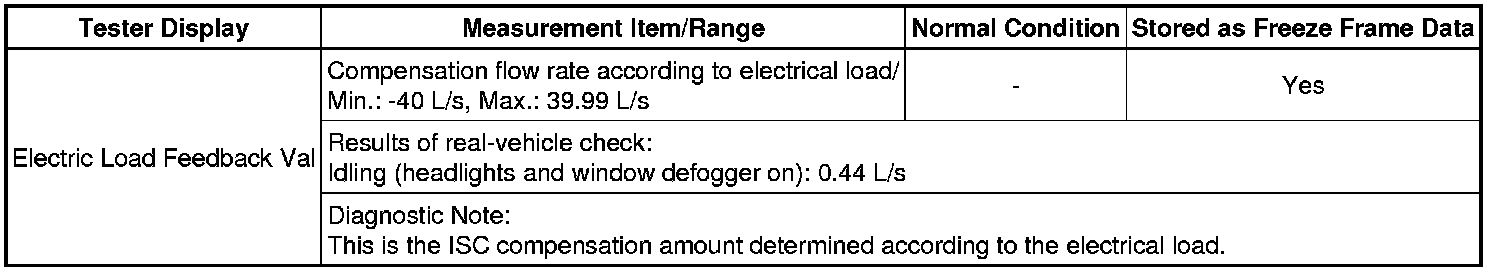

Electric Load Feedback Val

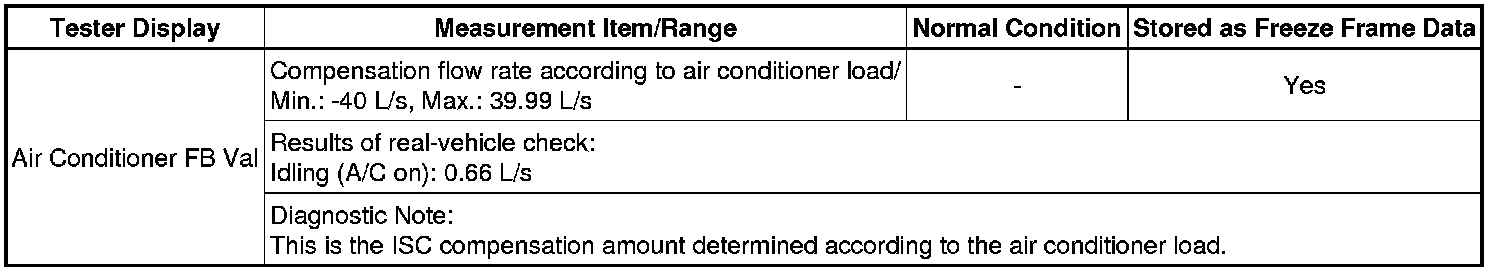

Air Conditioner FB Val

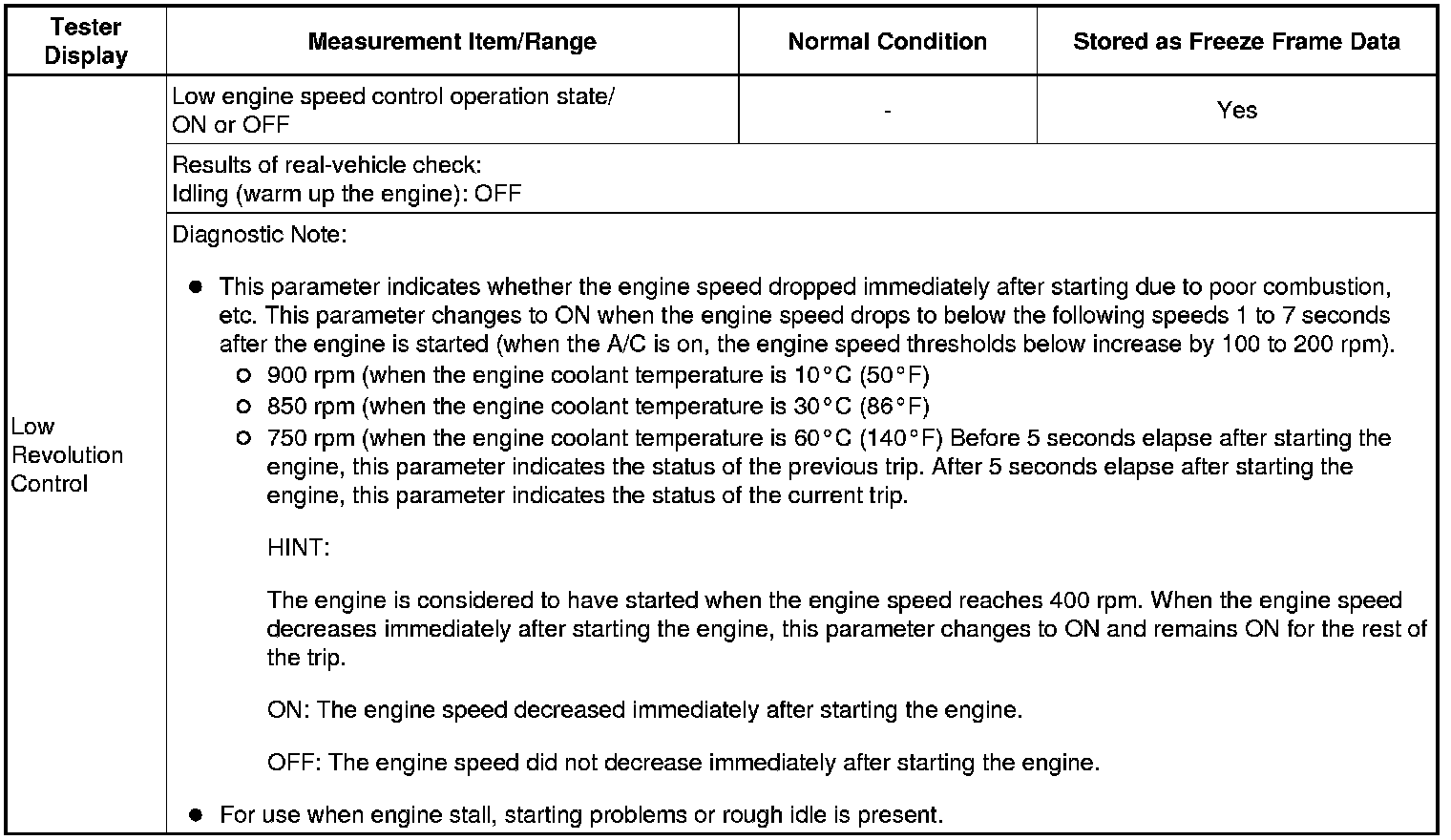

Low Revolution Control

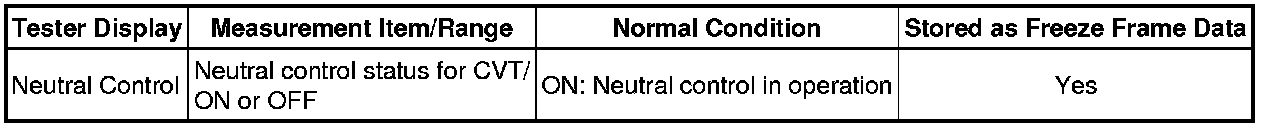

Neutral Control

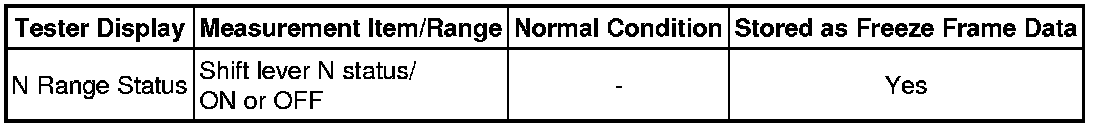

N Range Status

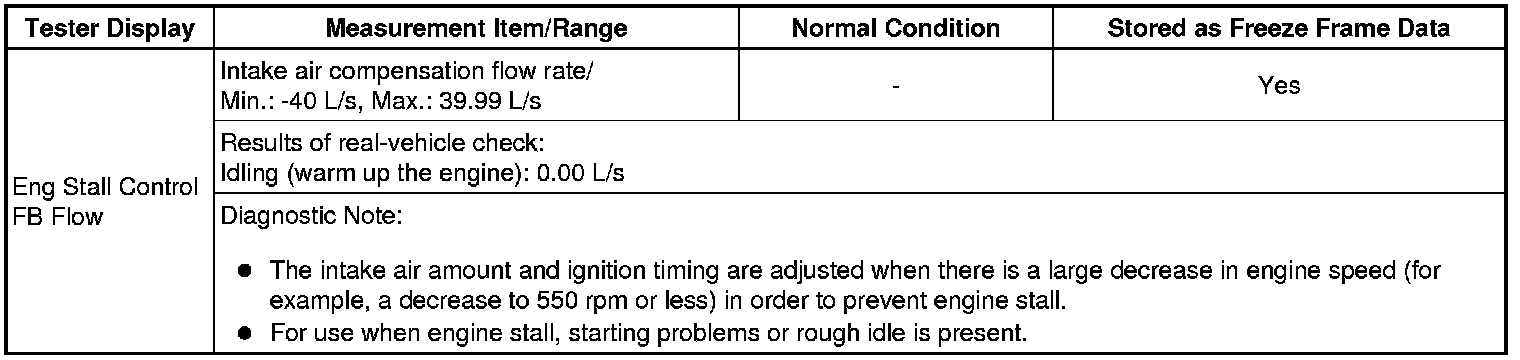

Eng Stall Control FB Flow

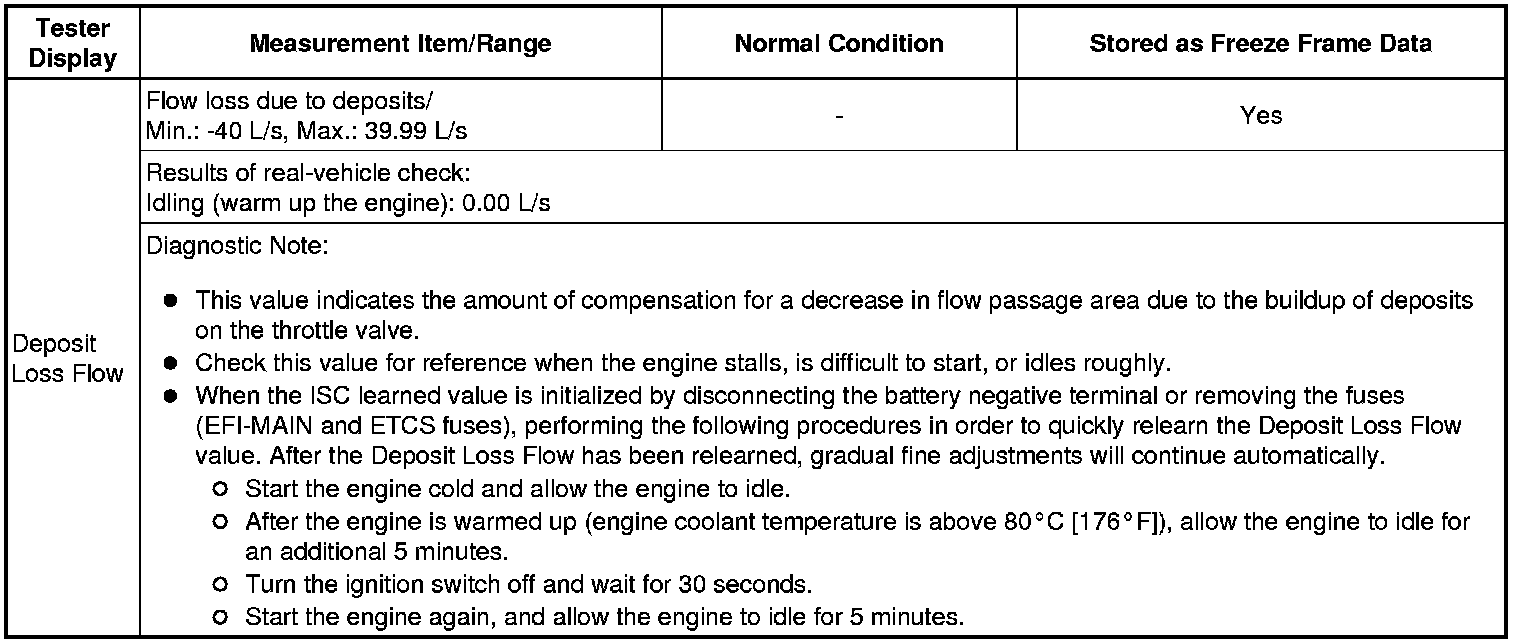

Deposit Loss Flow





7. Fuel System (Gas General)

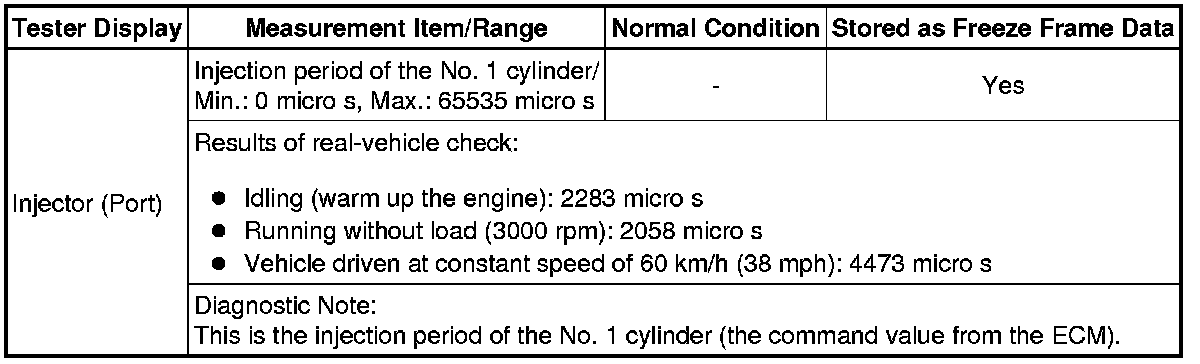

Injector (Port)

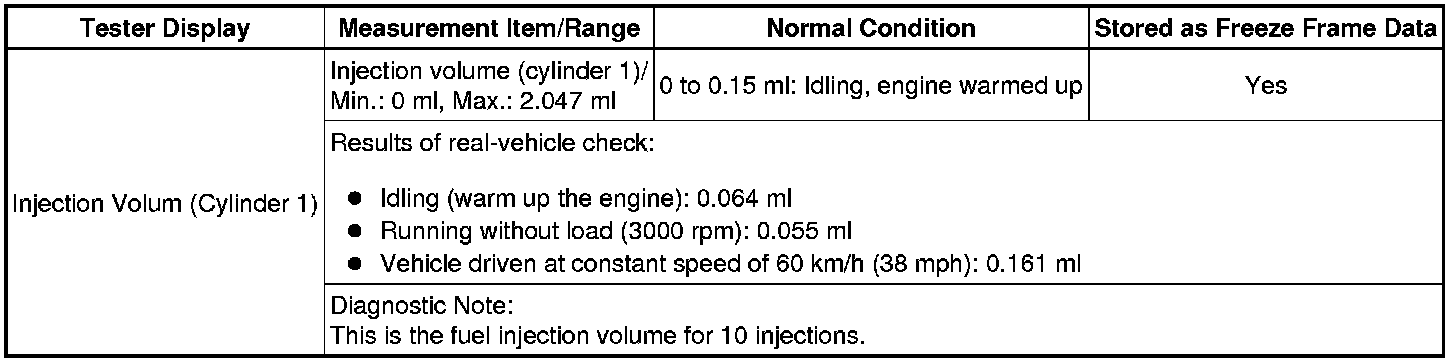

Injection Volume (Cylinder 1)

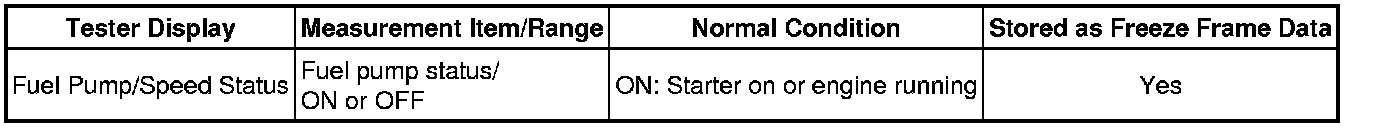

Fuel Pump/Speed Status





8. EVAP System 1 (All Data)

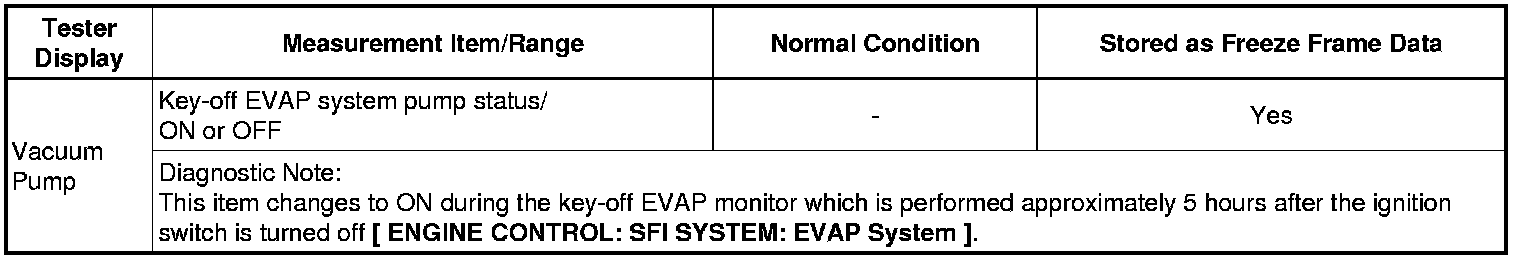

Vacuum Pump





9. EVAP System 2 (Gas Evaporative)

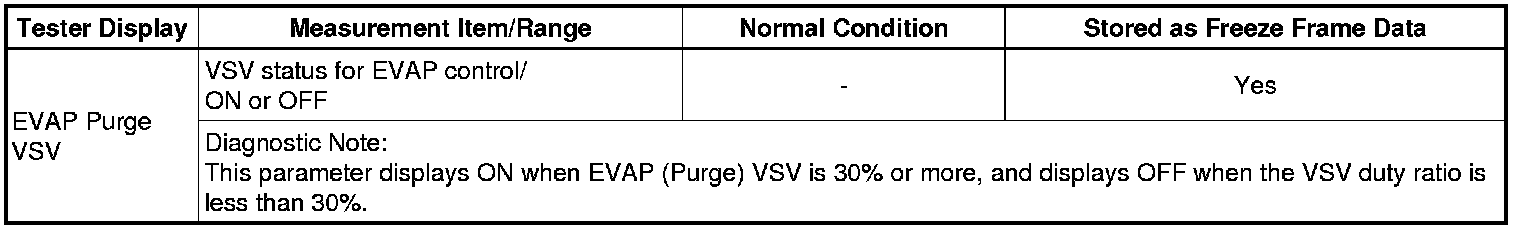

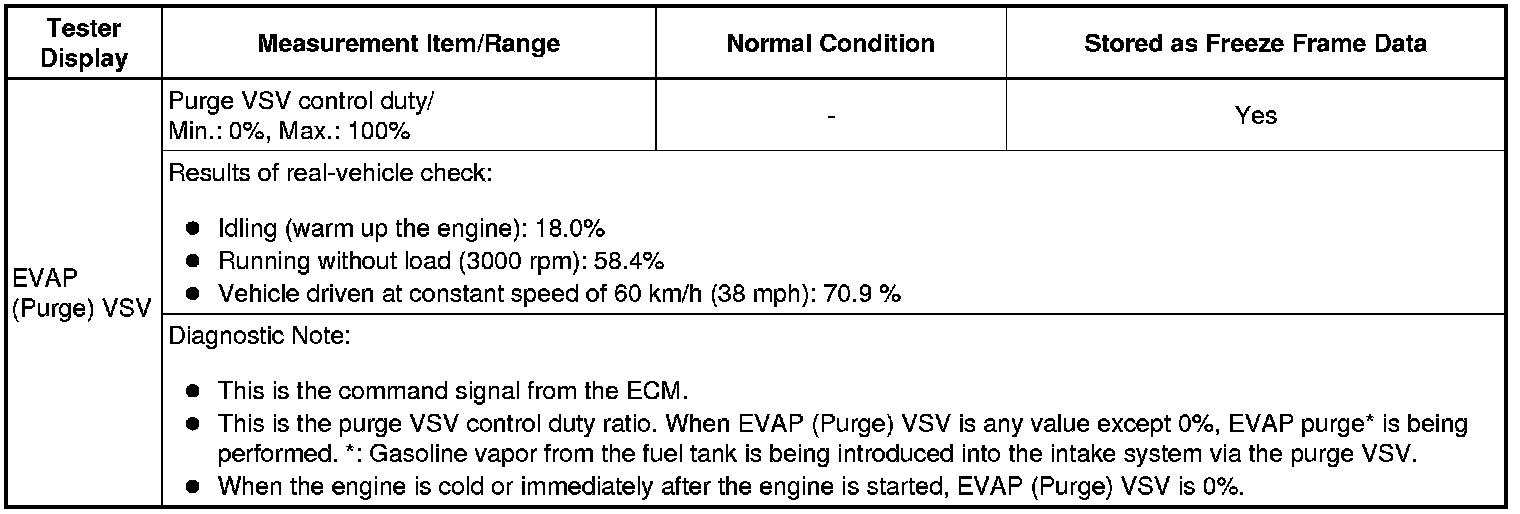

EVAP (Purge) VSV

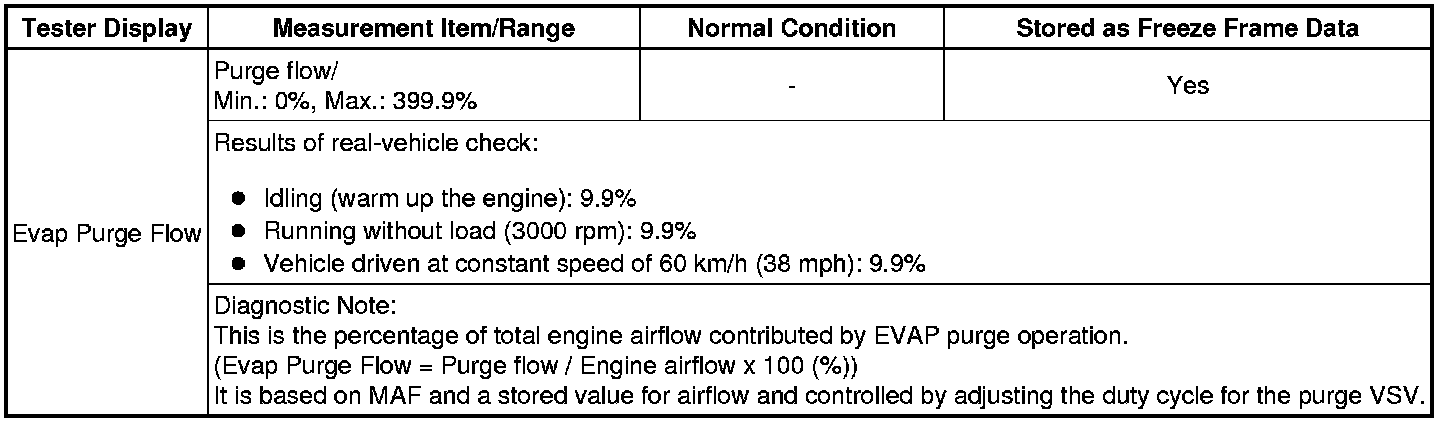

Evap Purge Flow

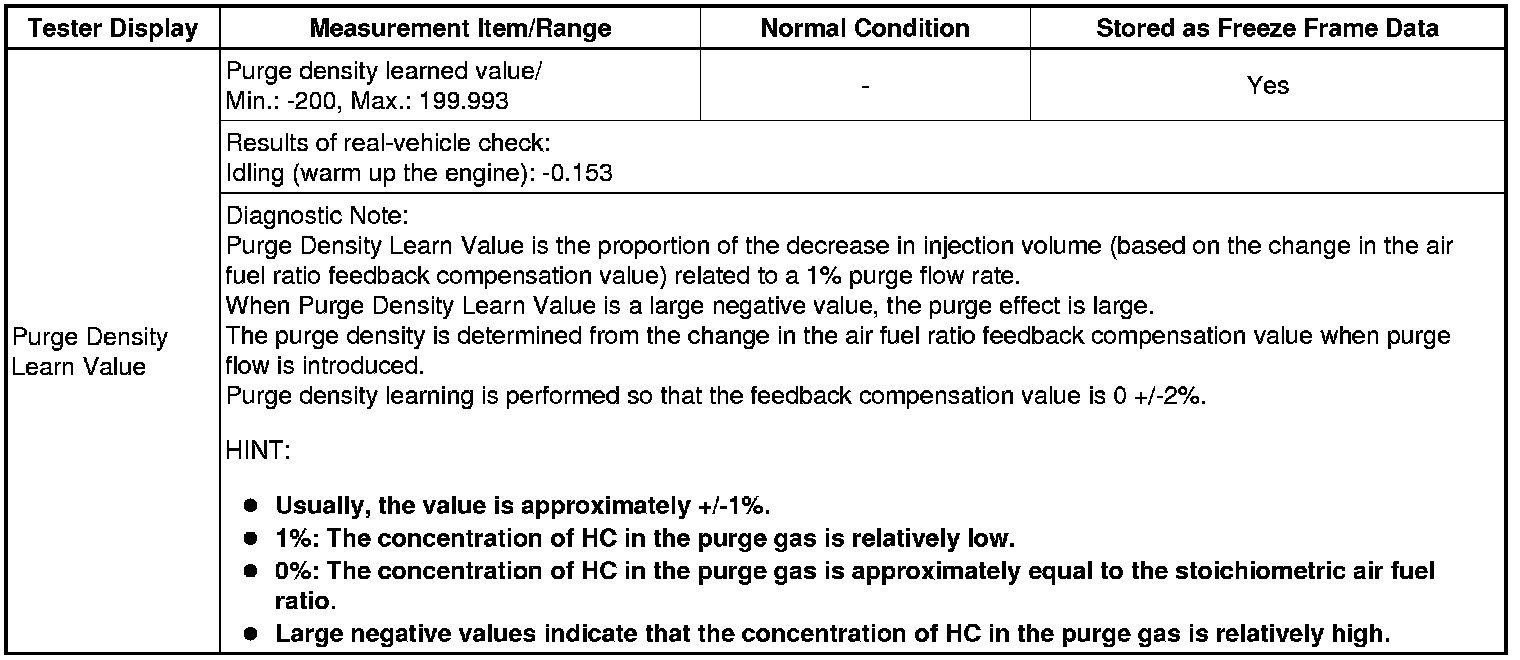

Purge Density Learn Value

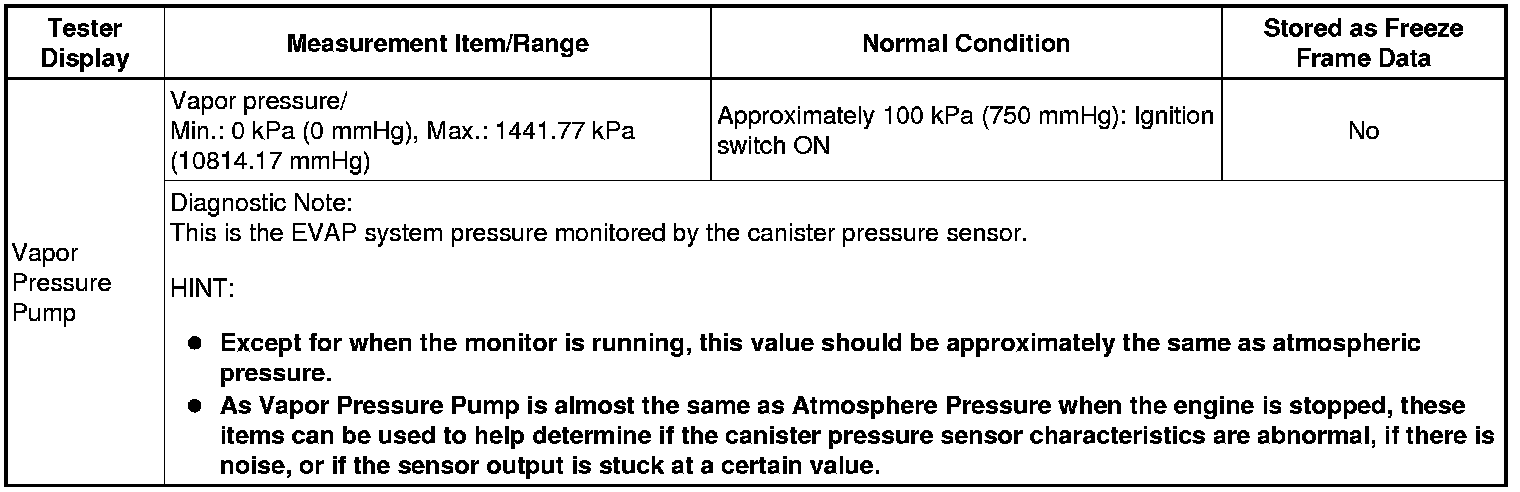

Vapor Pressure Pump

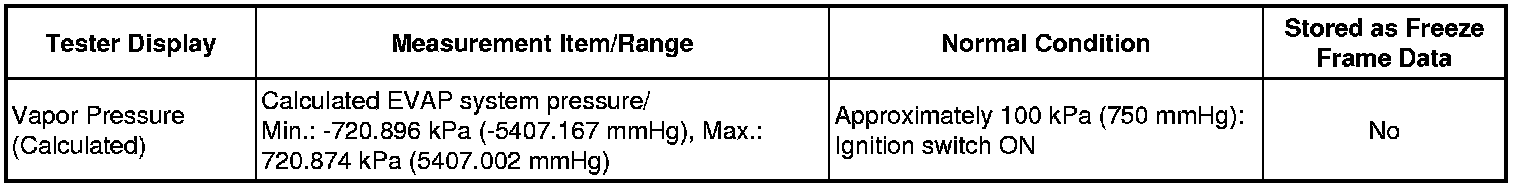

Vapor Pressure (Calculated)

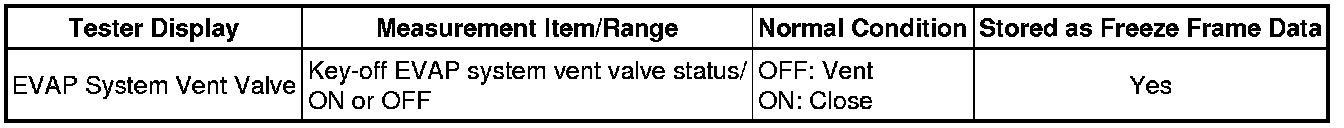

EVAP System Vent Valve





EVAP Purge VSV

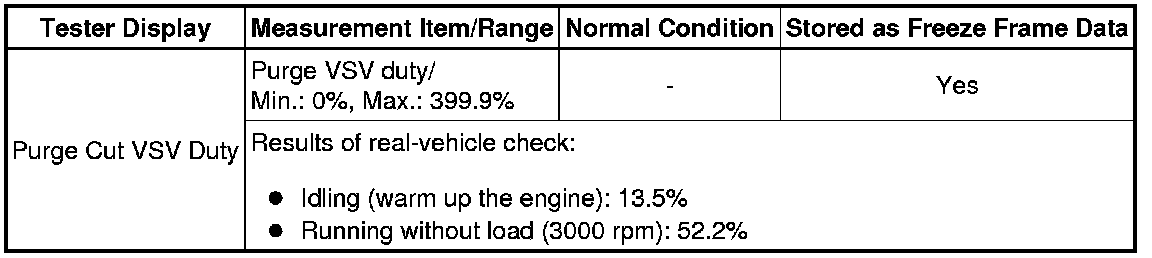

Purge Cut VSV Duty





10. Air Fuel Ratio Control 1 (All Data)

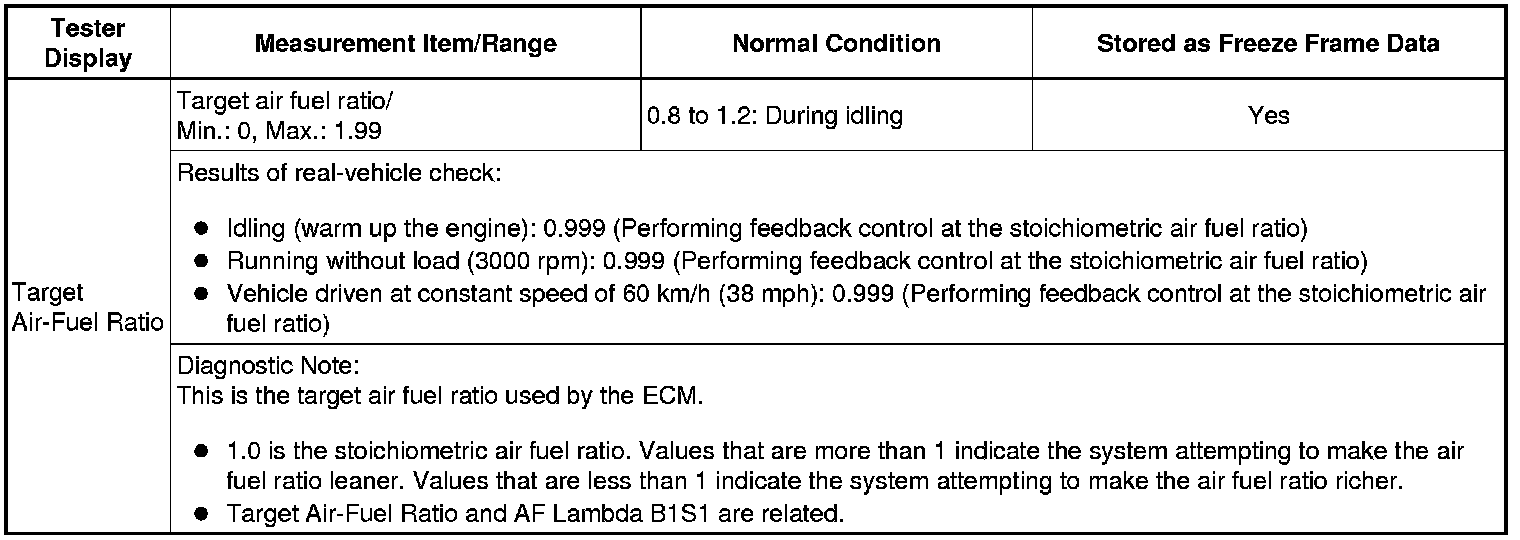

Target Air-Fuel Ratio





11. Air Fuel Ratio Control 2 (Gas AF O2 Sensor)

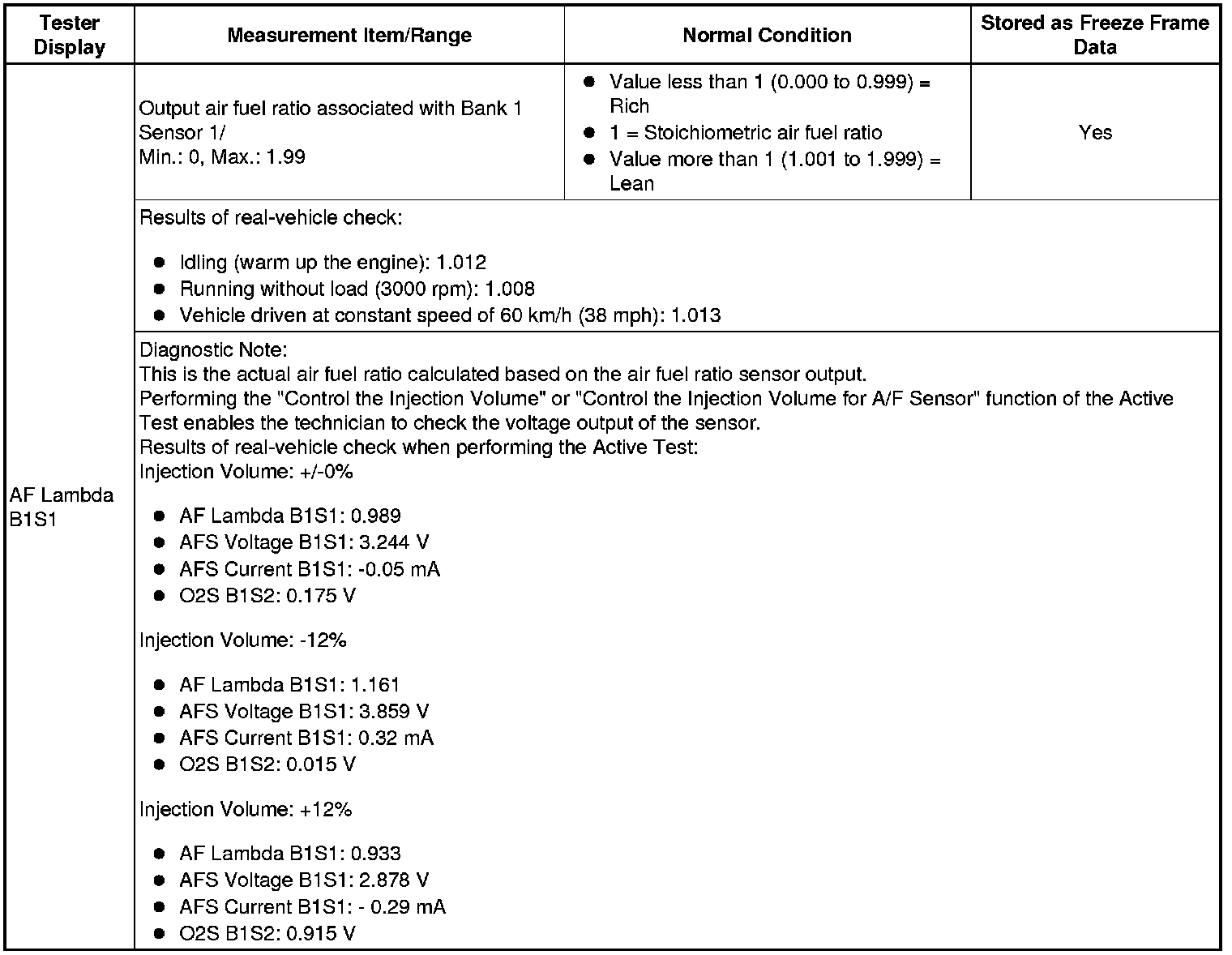

AF Lambda B1S1

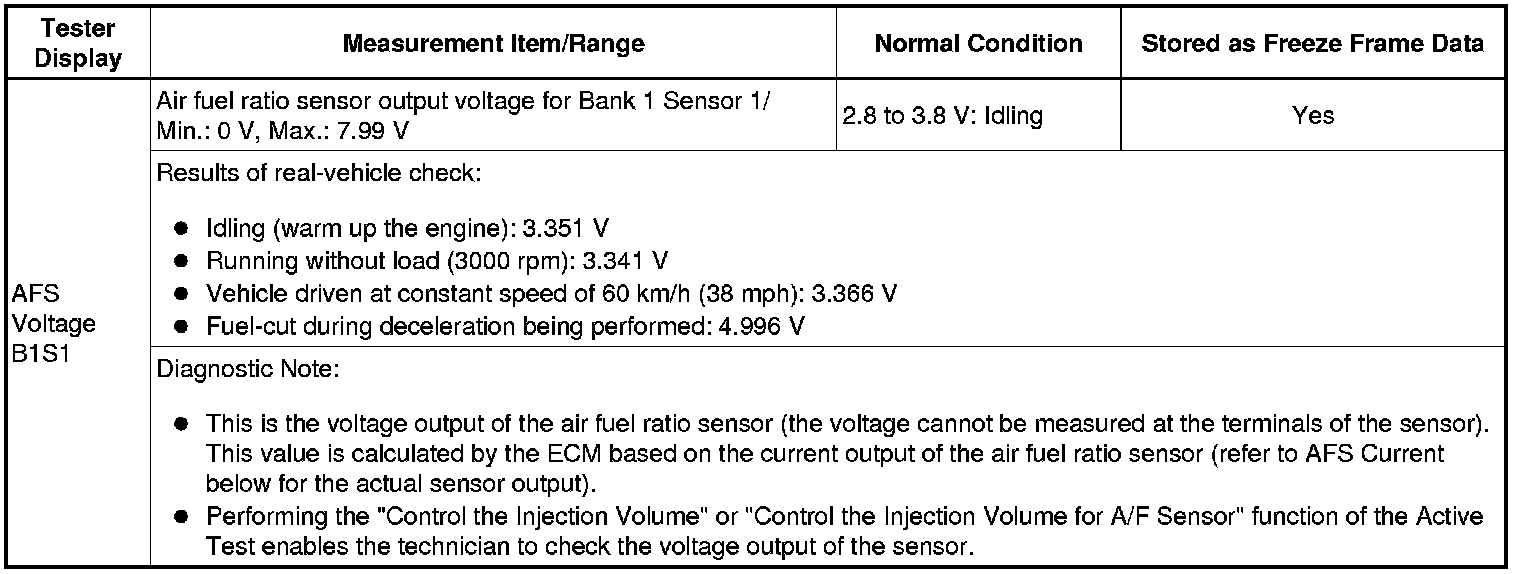

AFS Voltage B1S1

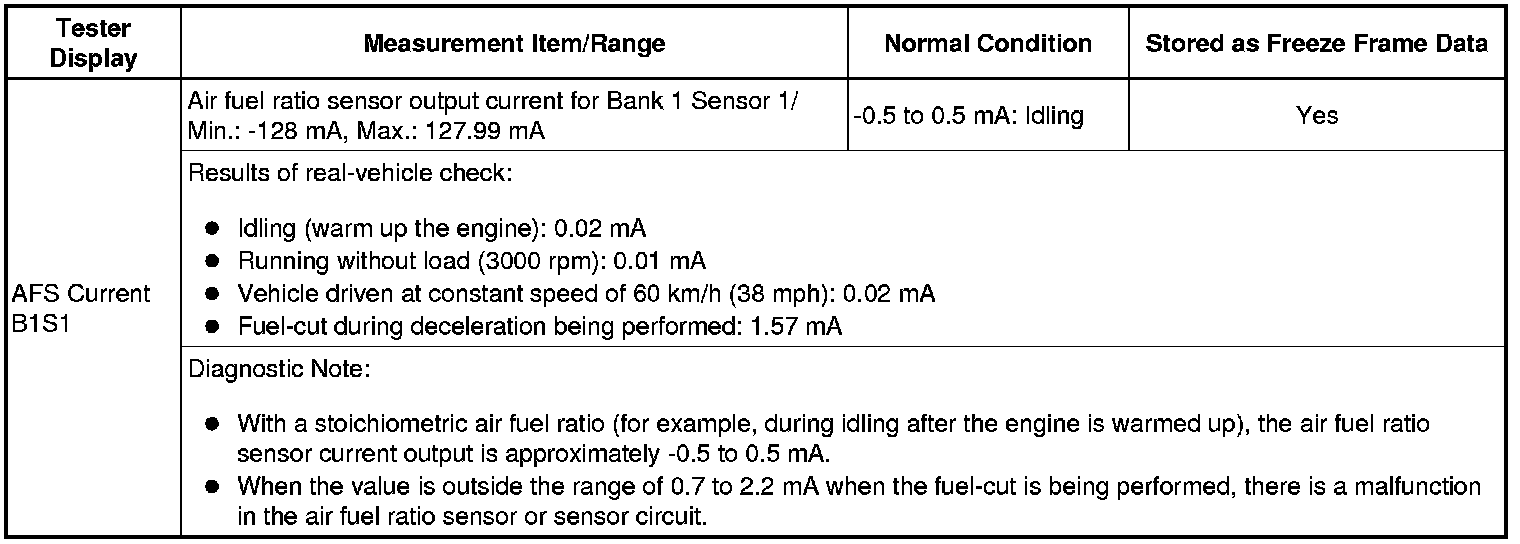

AFS Current B1S1

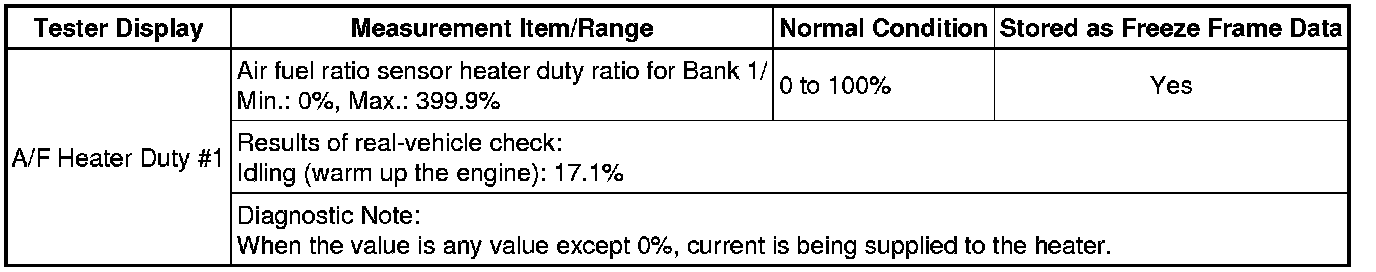

A/F Heater Duty #1





O2S B1S2

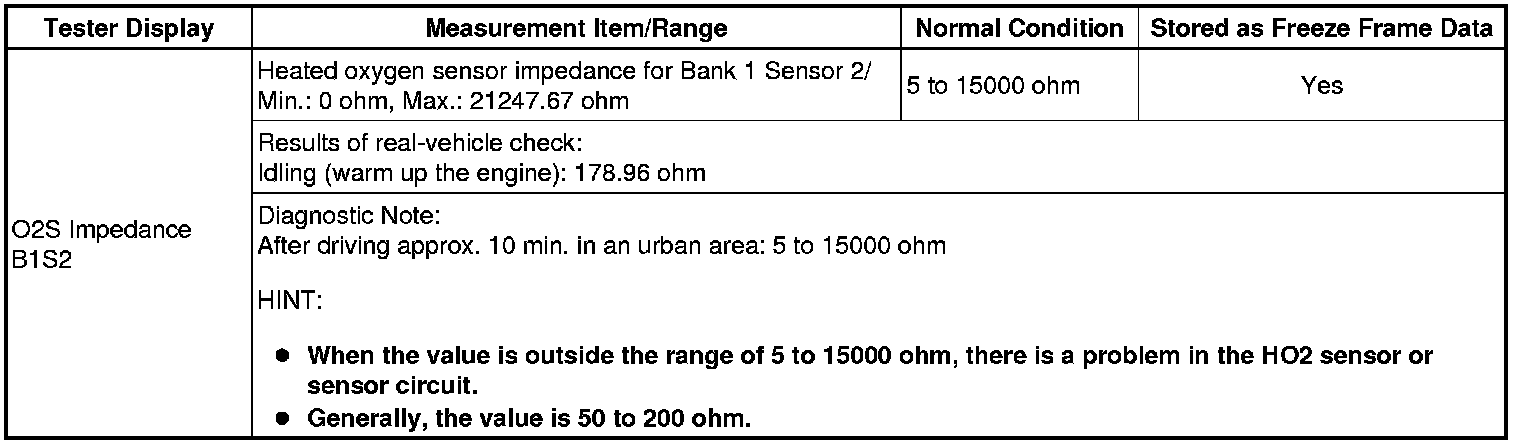

O2S Impedance B1S2

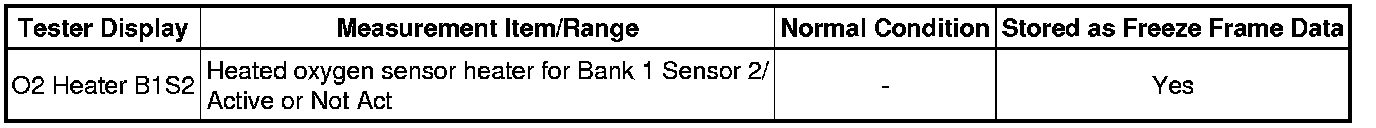

O2 Heater B1S2

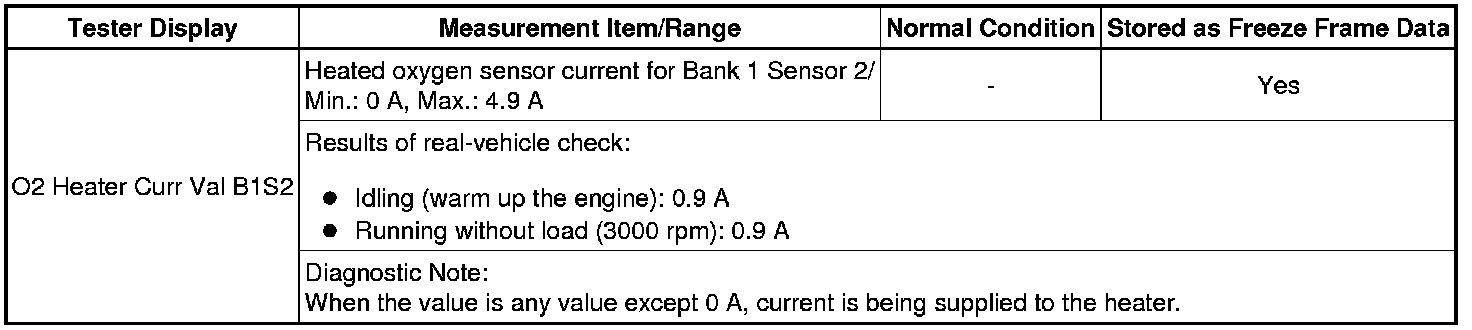

O2 Heater Curr Val B1S2





Short FT #1

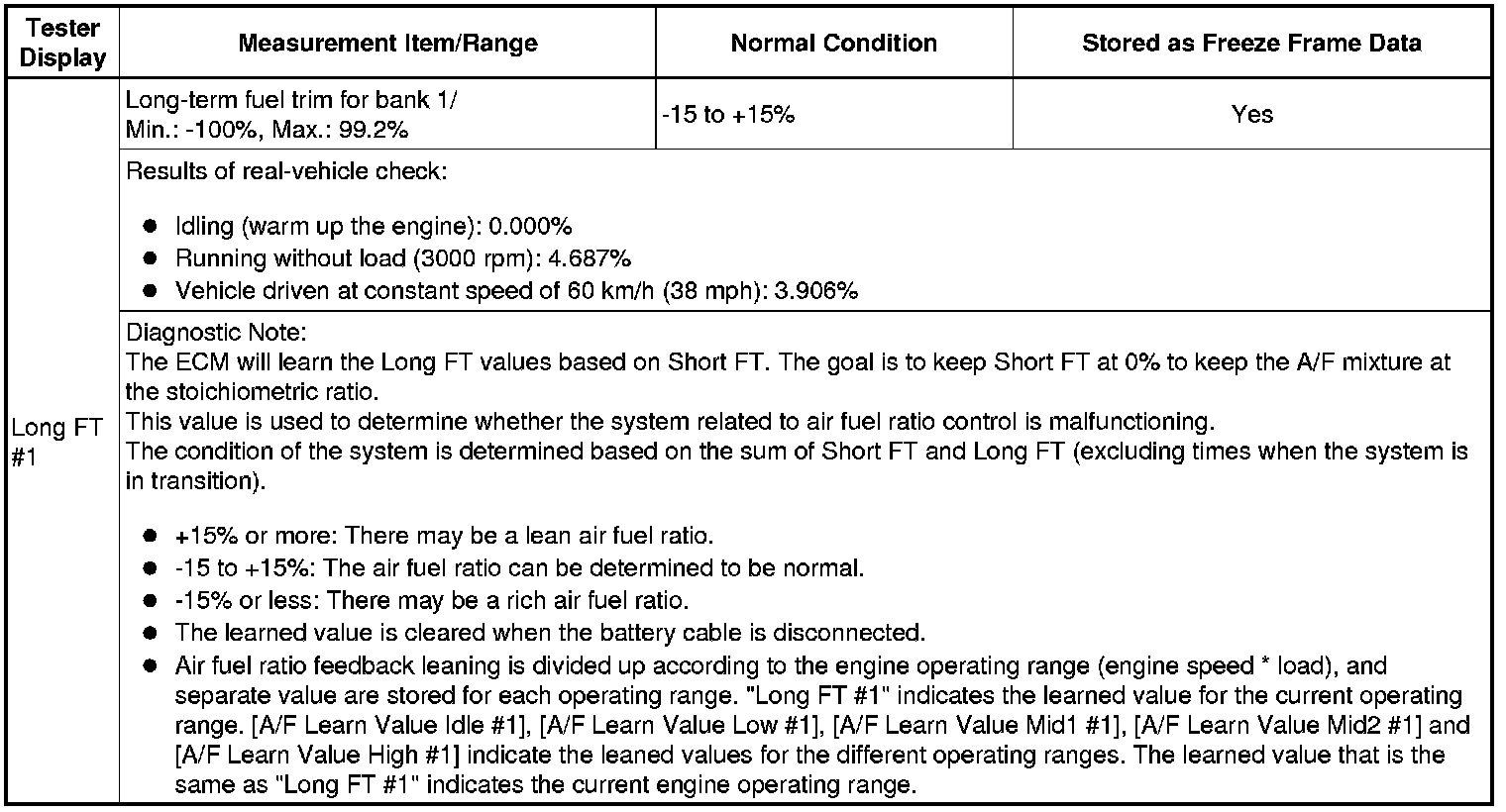

Long FT #1

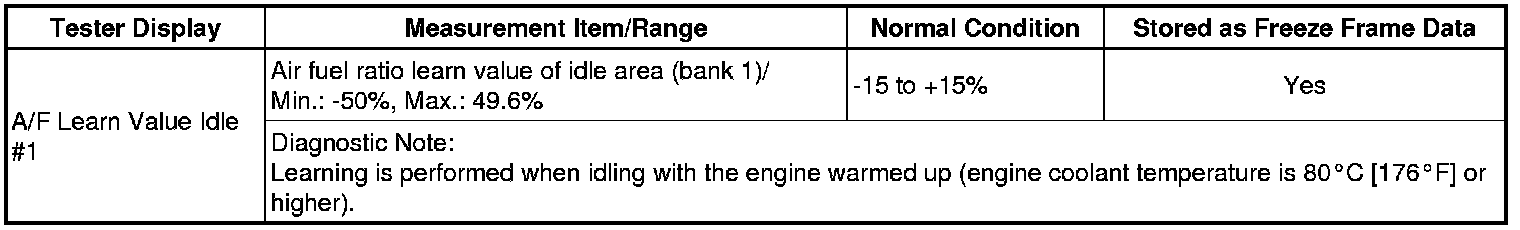

A/F Learn Value Idle #1

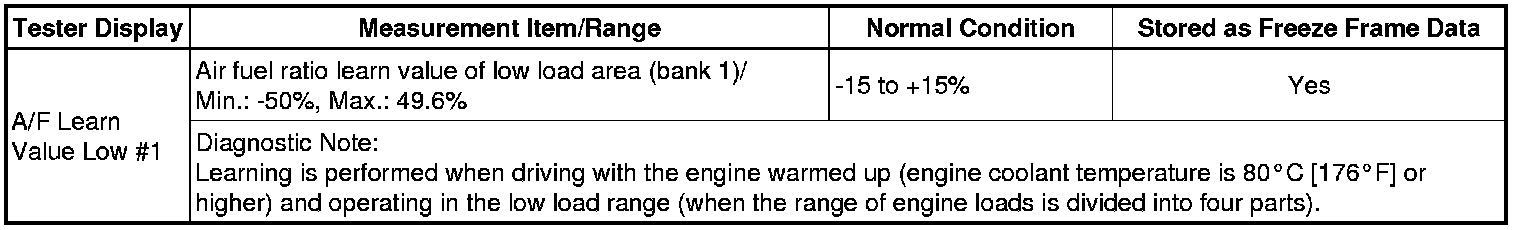

A/F Learn Value Low #1

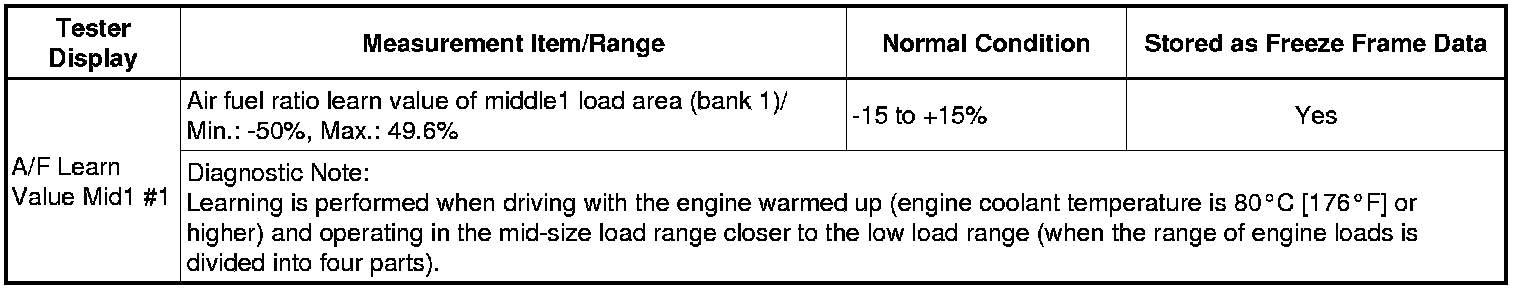

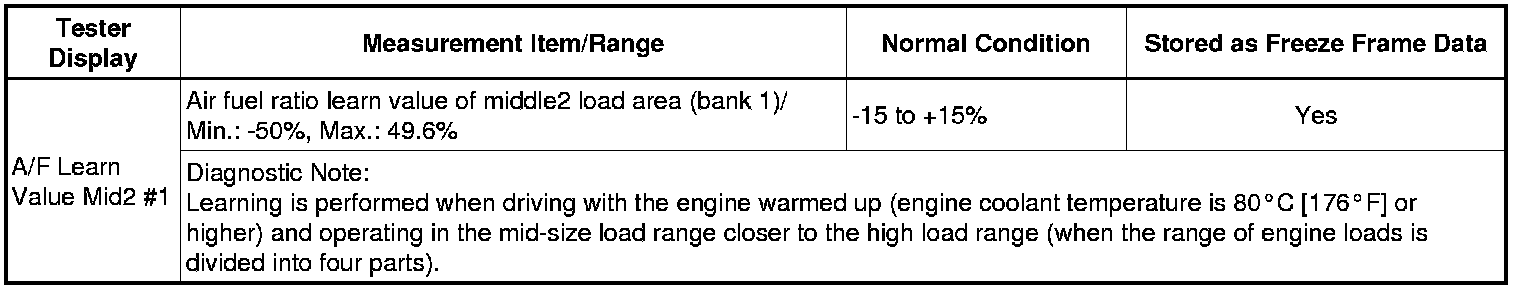

A/F Learn Value Mid1 #1





A/F Learn Value Mid2 #1

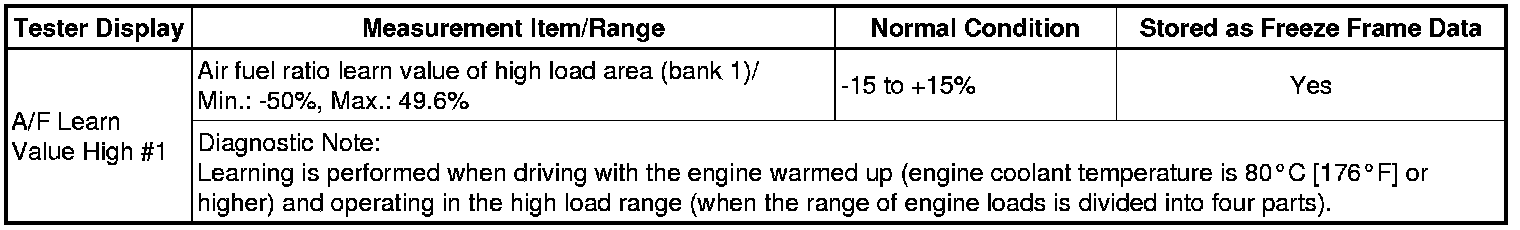

A/F Learn Value High #1

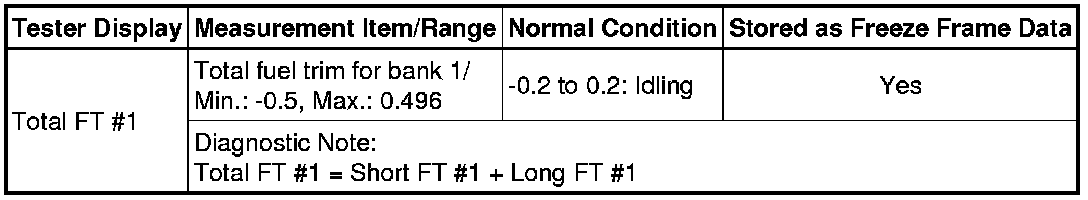

Total FT #1

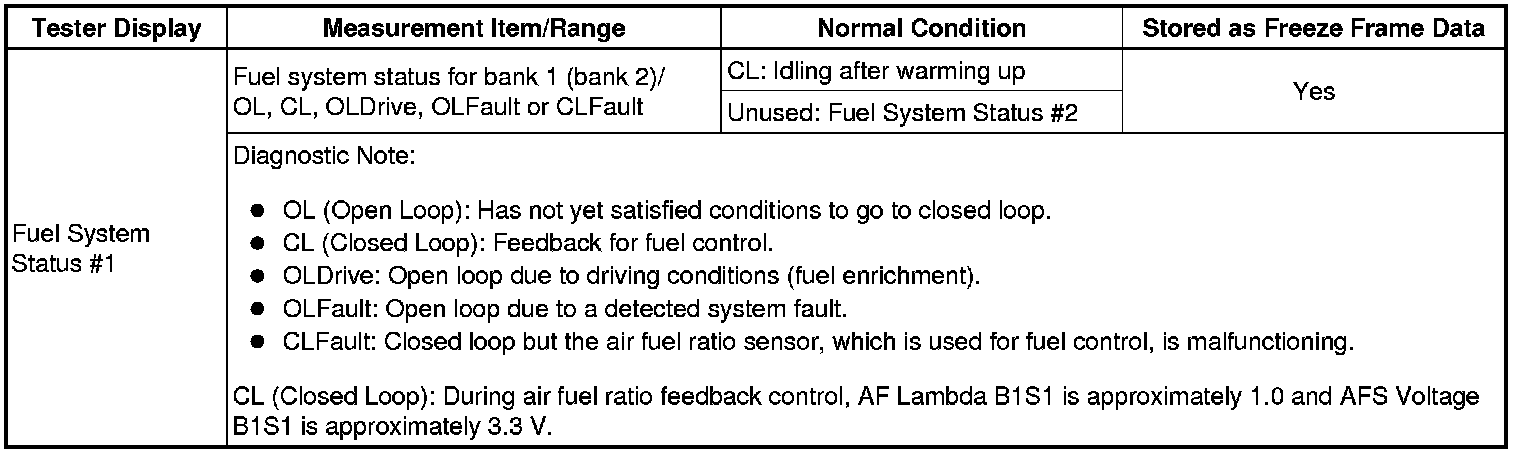

Fuel System Status #1





12. Ignition System (Ignition)

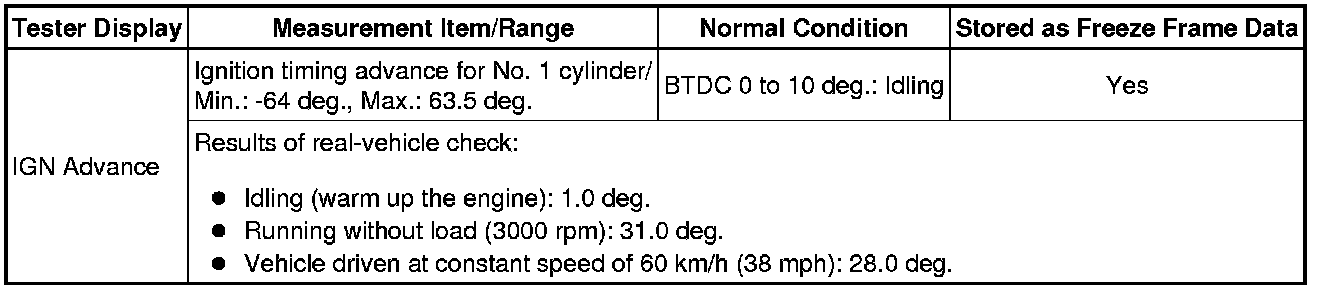

IGN Advance

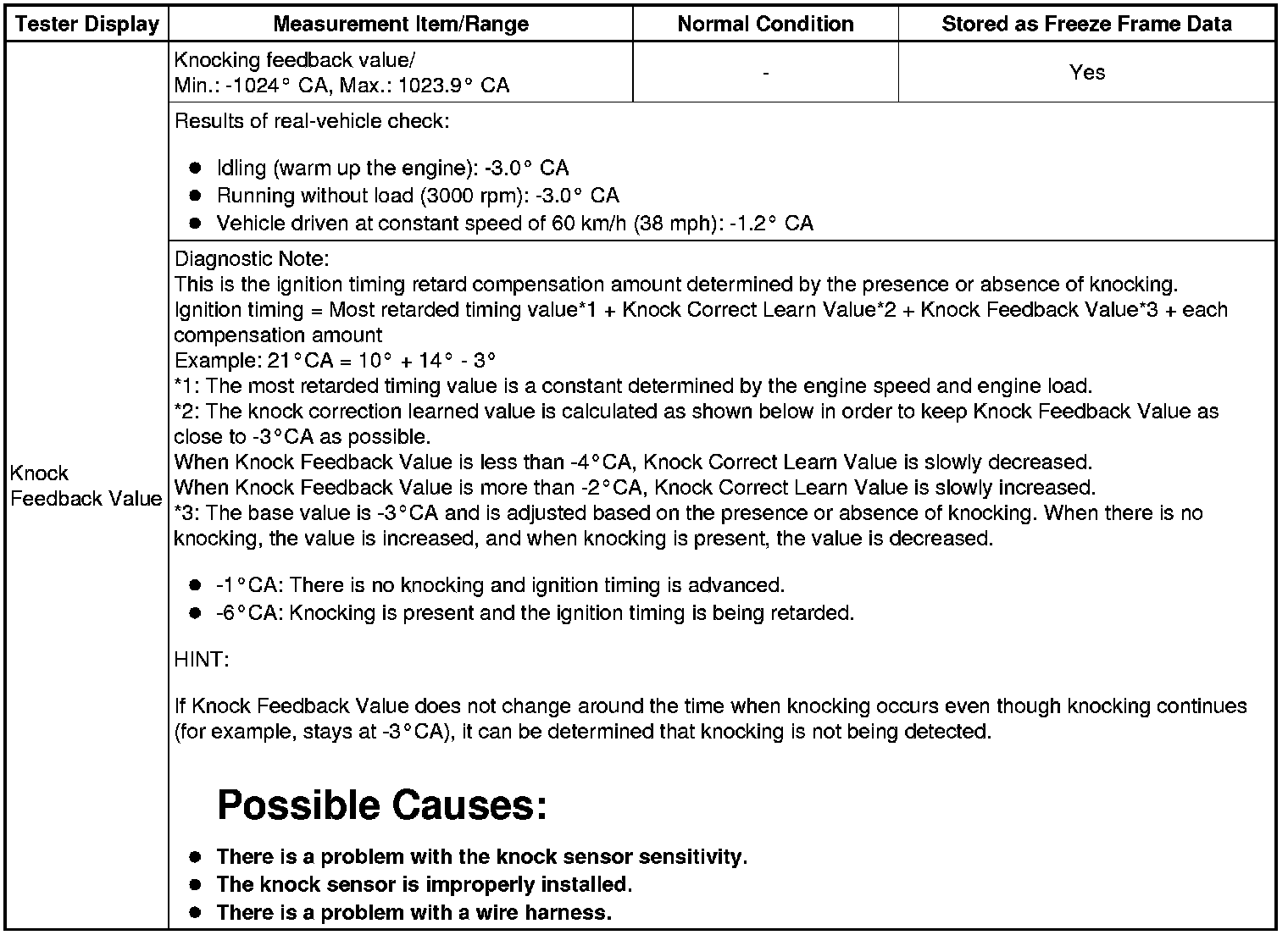

Knock Feedback Value

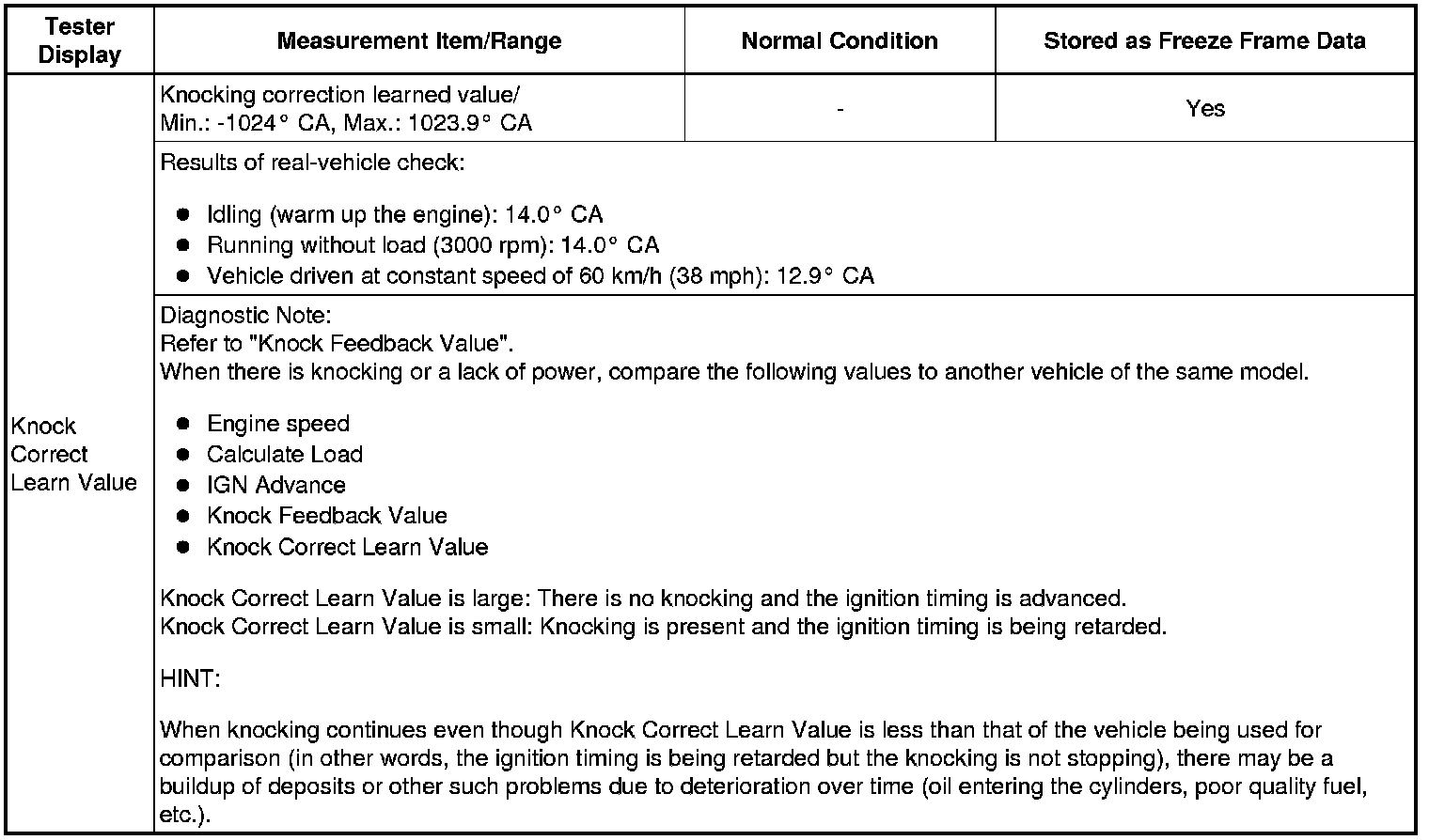

Knock Correct Learn Value

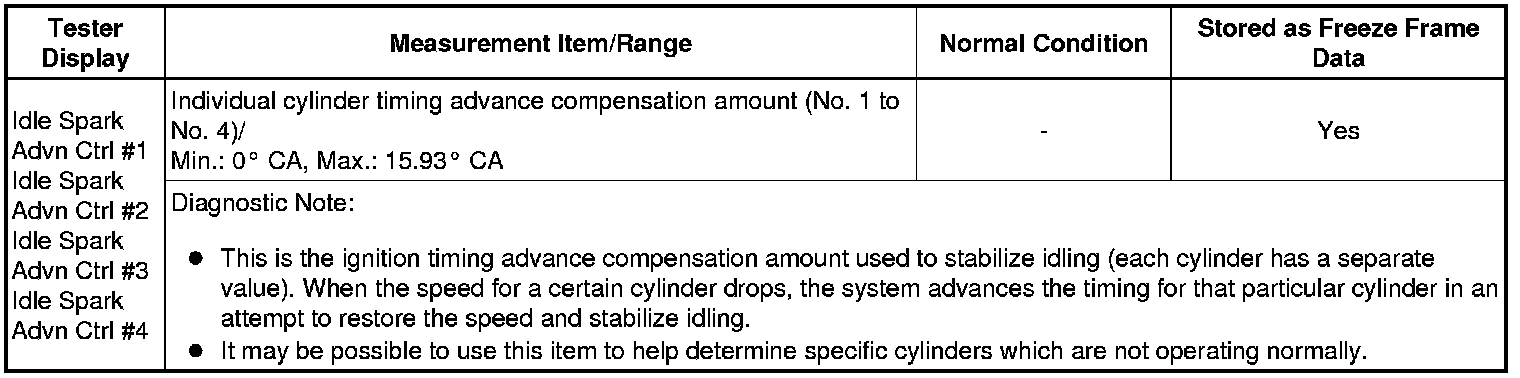

Idle Spark Advn Ctrl #1 to #4





13. VVT Control 1 (All Data)

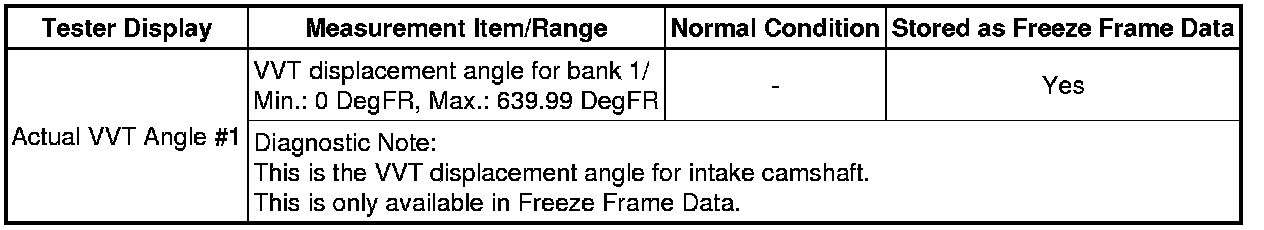

Actual VVT Angle #1

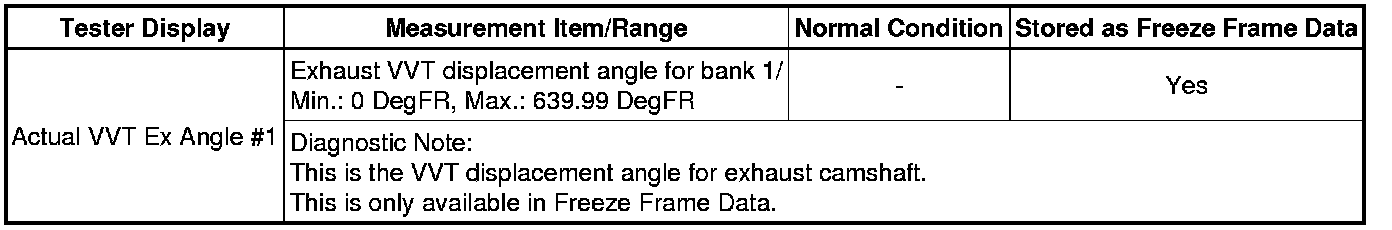

Actual VVT Ex Angle #1





14. VVT Control 2 (Gas Valve Control)

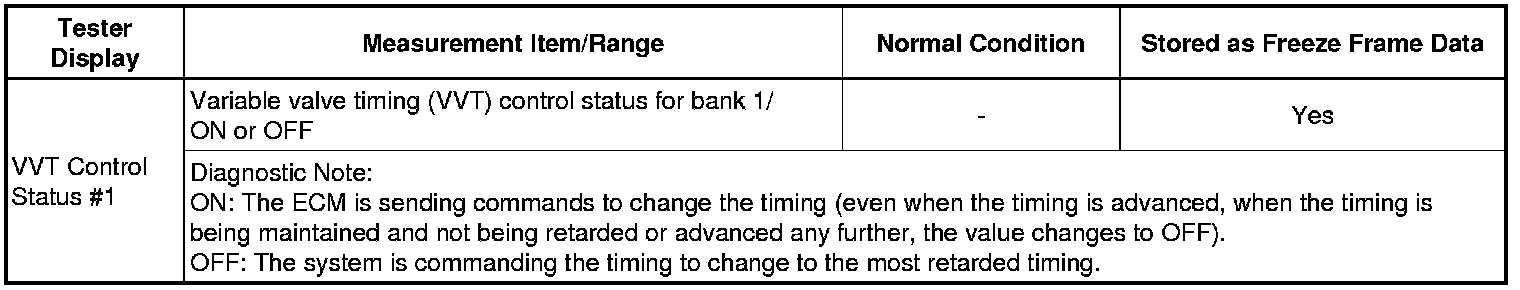

VVT Control Status #1
