Fail-Safe Chart

1NR-FE ENGINE CONTROL: SFI SYSTEM: FAIL-SAFE CHART

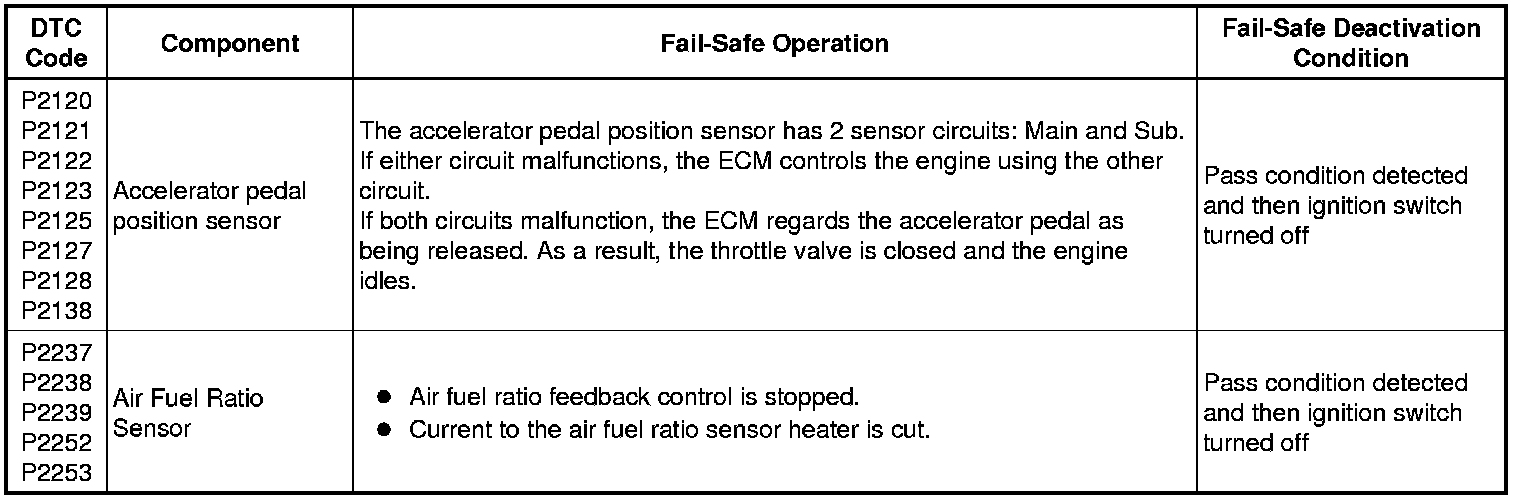

If any of the following DTCs are stored, the ECM enters fail-safe mode to allow the vehicle to be driven temporarily or stops fuel injection.









HINT
* *1: The vehicle can be driven slowly when the accelerator pedal is depressed firmly and slowly. If the accelerator pedal is depressed quickly, the vehicle may speed up and slow down erratically.
* *2: Misfire-related fail-safe operations occur when catalyst overheat malfunctions occur.
