Air Fuel Ratio Sensor

1NR-FE ENGINE CONTROL: AIR FUEL RATIO SENSOR: INSPECTION

1. INSPECT AIR FUEL RATIO SENSOR

(a) Measure the resistance according to the value(s) in the table below.





Text in Illustration

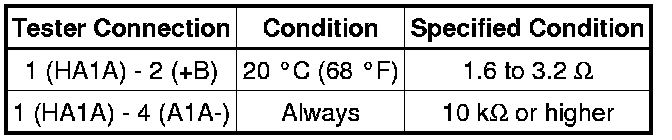

Standard Resistance:





If the result is not as specified, replace the air fuel ratio sensor.
