ECM Communication Stop Mode

NETWORKING: CAN COMMUNICATION SYSTEM: ECM Communication Stop Mode
- ECM Communication Stop Mode

DESCRIPTION

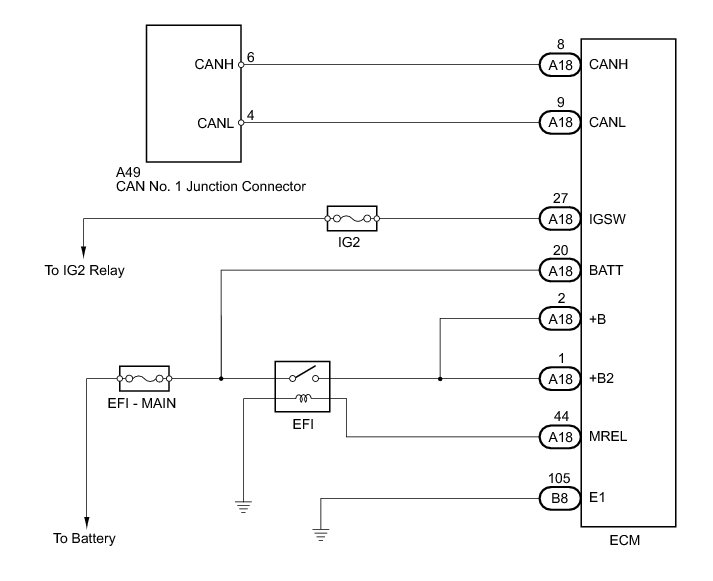

WIRING DIAGRAM

INSPECTION PROCEDURE

NOTICE:
* Inspect the fuses for circuits related to this system before performing the following inspection procedure.
* Turn the ignition switch off before measuring the resistances of the CAN main wire and the CAN branch wire.
* After the ignition switch is turned off, check that the key reminder warning system and light reminder warning system are not in operation.
* Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the ignition switch, any other switches or the doors. If doors need to be opened in order to check connectors, open the doors and leave them open.

HINT
Operating the ignition switch, any switches or any doors triggers related ECU and sensor communication with the CAN, which causes resistance variation.

PROCEDURE

1. CHECK FOR OPEN IN CAN BUS WIRE (ECM MAIN WIRE)

(a) Turn the ignition switch off.

(b) Disconnect the A18 ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Text in Illustration

(d) Reconnect the ECM connector.

NG -- REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (CAN-H, CAN-L)
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (ECM - BATTERY AND BODY GROUND)

(a) Disconnect the A18 and B8 ECM connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Text in Illustration

(d) Reconnect the ECM connectors.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE ECM Removal
