Component Tests and General Diagnostics

TIRE / WHEEL: TIRE AND WHEEL SYSTEM: INSPECTION

1. INSPECT TIRES

(a) Check the tires for wear and proper inflation pressure.

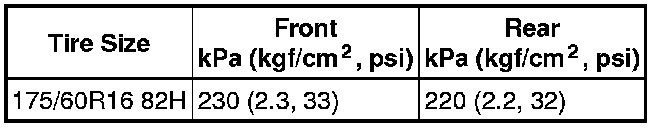

Cold Tire Inflation Pressure:





(b) Using a dial indicator, check the runout of the tires.





Maximum tire runout:

Vertical
1.4 mm (0.0551 in.)

Lateral
2.0 mm (0.0787 in.)

2. ROTATE TIRES

(a) Rotate the tires as shown in the illustration.





Text in Illustration





Axle hub nut - Torque : 103 Nm (1050 kgf-cm, 76 ft-lbf)

3. INSPECT WHEEL BALANCE

(a) Check and adjust the off-the-car balance.

Maximum wheel imbalance after adjustment:

8.0 g (0.0176 lb)

HINT
If necessary, check and adjust the on-the-car balance.

4. INSPECT FRONT AXLE HUB BEARING

Front Axle Hub

5. INSPECT REAR AXLE HUB BEARING

Rear Axle Hub
