Turn Signal Flasher: Testing and Inspection

LIGHTING (EXT): TURN SIGNAL FLASHER ASSEMBLY: ON-VEHICLE INSPECTION

1. INSPECT TURN SIGNAL FLASHER ASSEMBLY

(a) Disconnect the turn signal flasher assembly connector.





Text in Illustration





(b) Measure the voltage and resistance according the value(s) in the table below.

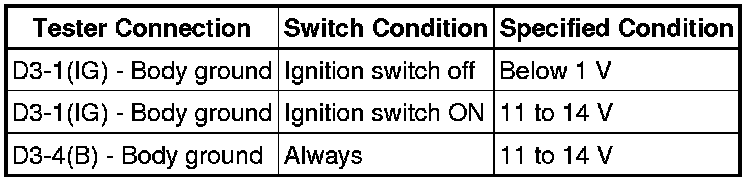

Standard Voltage:

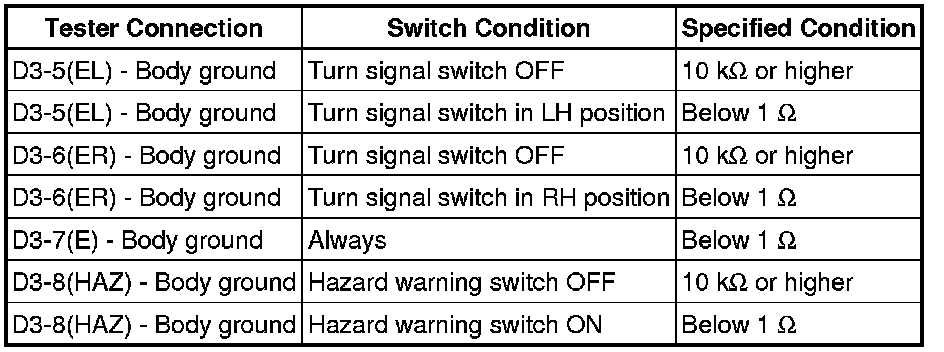

Standard Resistance:





If the result is not as specified, there may be a malfunction on the wire harness side.

(c) Reconnect the turn signal flasher assembly connector.

(d) Measure the voltage according to the value(s) in the table below.

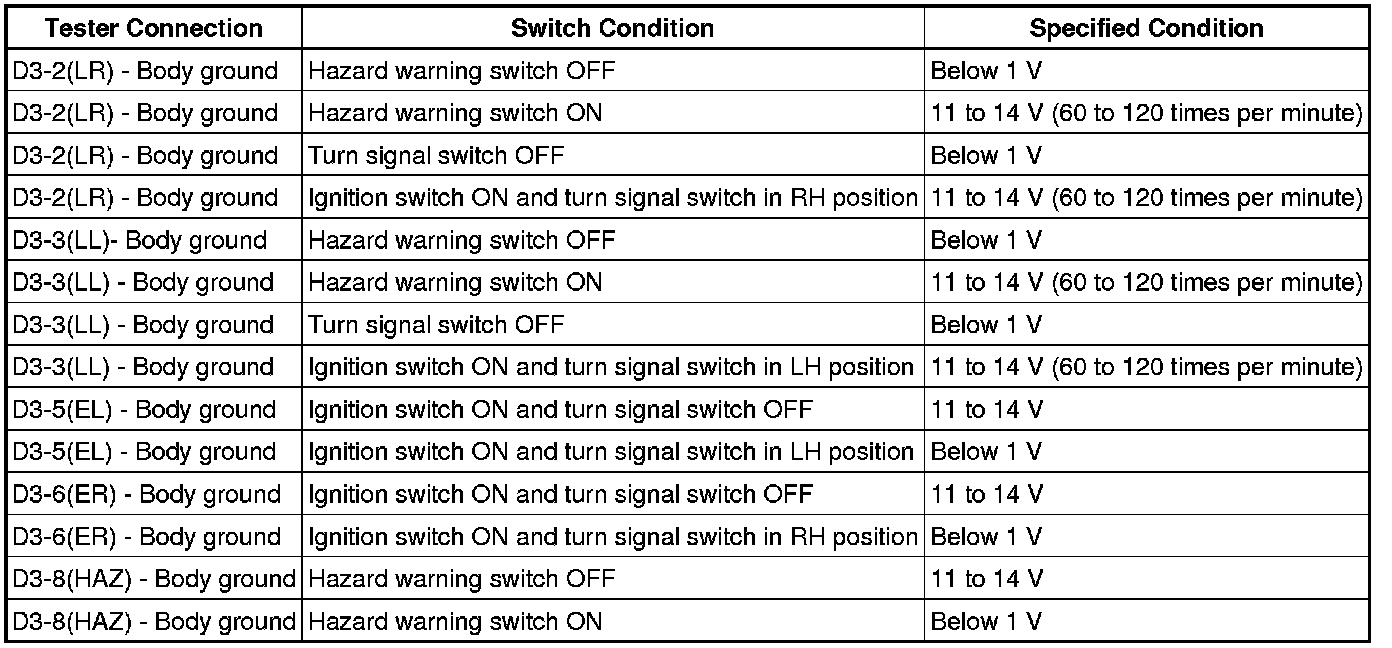

Standard Voltage:





If the result is not as specified, replace the turn signal flasher assembly.
