Interior Lighting System

LIGHTING (INT): LIGHTING SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT
* Use these procedures to troubleshoot the lighting system.
* *: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. INSPECT BATTERY VOLTAGE

Standard voltage:

11 to 14 V

If the voltage is below 11 V, recharge or replace the battery before proceeding.

NEXT -- Continue to next step.

3. PROBLEM SYMPTOMS TABLE

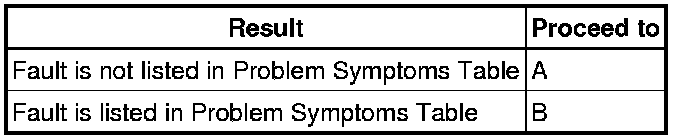

Result





B -- Go to step 5
A -- Continue to next step.

4. OVERALL ANALYSIS AND TROUBLESHOOTING*

(a) Data List/Active Test Interior Lighting System.

(b) Terminals of ECU Interior Lighting System.

NEXT -- Continue to next step.

5. ADJUST, REPAIR OR REPLACE

NEXT -- Continue to next step.

6. CONFIRMATION TEST

NEXT -- END
