Taillight Circuit

LIGHTING (EXT): LIGHTING SYSTEM: Taillight Circuit
- Taillight Circuit

DESCRIPTION

* The main body ECU receives the light control switch TAIL signal to control the taillight relay.

* When the light control switch is in the AUTO position, the main body ECU receives the ambient light level signal from the automatic light control sensor to control the taillight relay.

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Inspect the fuses and bulbs for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. PERFORM ACTIVE TEST USING TECHSTREAM

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / Main Body / Active Test.

(e) According to the display on the Techstream, perform the Active Test.

Main Body





OK:

Taillight relay operates. (Taillights illuminate.)

NG -- READ VALUE USING TECHSTREAM

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Exterior Lighting System

2. READ VALUE USING TECHSTREAM

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / Main Body / Data List.

(e) According to the display on the Techstream, read the Data List.

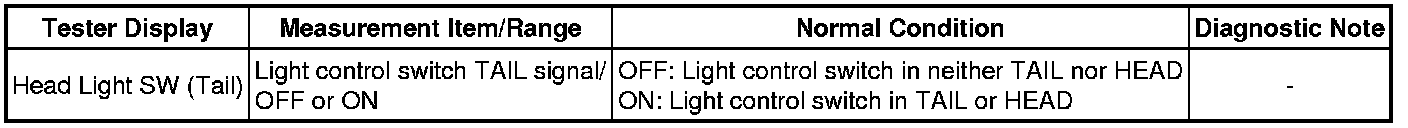

Main Body





OK:

Normal conditions listed above are displayed.

NG -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Exterior Lighting System
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - BATTERY)

(a) Disconnect the 3A instrument panel junction block assembly connector.





(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration





(c) Reconnect the instrument panel junction block assembly connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

4. REPLACE MAIN BODY ECU

(a) Temporarily replace the main body ECU with a new or normally functioning one Removal.

NEXT -- Continue to next step.

5. PERFORM ACTIVE TEST USING TECHSTREAM

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / Main Body / Active Test.

(e) According to the display on the Techstream, perform the Active Test.

Main Body





OK:

Taillight relay operates. (Taillights illuminate.)

NG -- REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

OK -- END (MAIN BODY ECU DEFECTIVE)
