IG Signal Circuit

LIGHTING (EXT): LIGHTING SYSTEM: IG Signal Circuit
- IG Signal Circuit

DESCRIPTION

* The main body ECU receives IG signal to control the exterior light control system as shown below:

* Automatic light control

* Light auto turn off control

* Daytime running light control

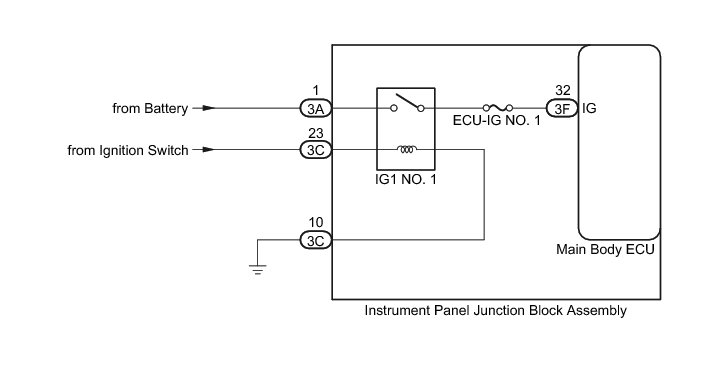

WIRING DIAGRAM

INSPECTION PROCEDURE

NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. READ VALUE USING TECHSTREAM

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / Main Body / Data List.

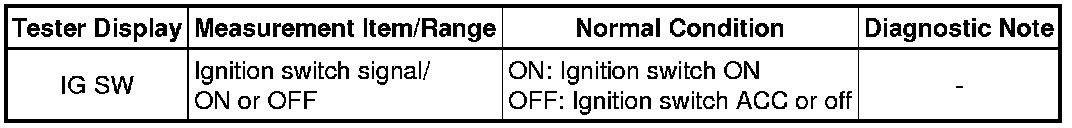

(e) According to the display on the Techstream, read the Data List.

Main Body

OK:

Normal conditions listed above are displayed.

NG -- CHECK HARNESS AND CONNECTOR (INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - BATTERY AND BODY GROUND)

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Exterior Lighting System

2. CHECK HARNESS AND CONNECTOR (INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - BATTERY AND BODY GROUND)

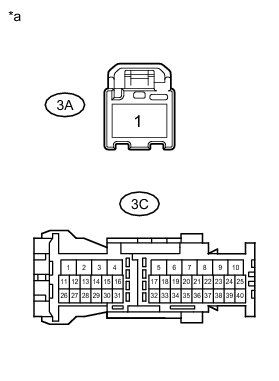

(a) Disconnect the 3A and 3C instrument panel junction block assembly connectors.

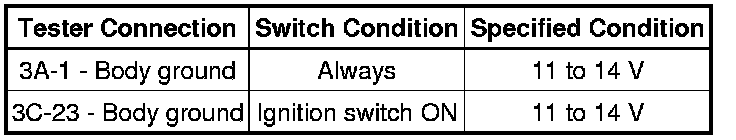

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Text in Illustration

(d) Reconnect the instrument panel junction block assembly connectors.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. REPLACE MAIN BODY ECU

(a) Temporarily replace the main body ECU with a new or normally functioning one Removal.

NEXT -- Continue to next step.

4. READ VALUE USING TECHSTREAM

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / Main Body / Data List.

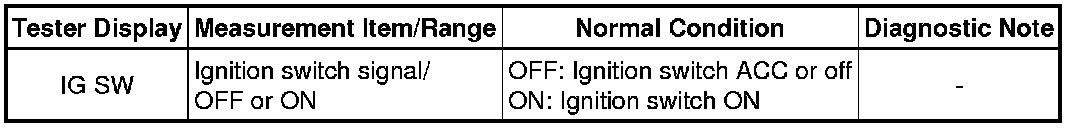

(e) According to the display on the Techstream, read the Data List.

Main Body

OK:

Normal conditions listed above are displayed.

NG -- REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

OK -- END (MAIN BODY ECU DEFECTIVE)
