Headlight Relay Circuit

LIGHTING (EXT): LIGHTING SYSTEM: Headlight Relay Circuit
- Headlight Relay Circuit

DESCRIPTION

The main body ECU controls the headlight relays.

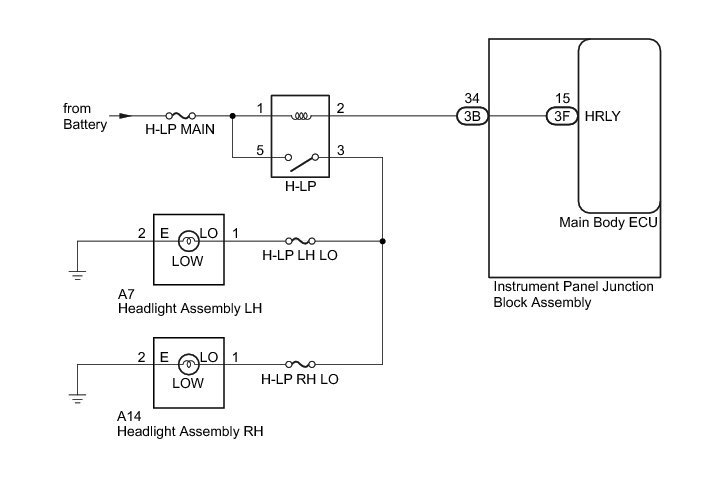

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Inspect the fuses and bulbs for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. PERFORM ACTIVE TEST USING TECHSTREAM

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / Main Body / Active Test.

(e) Check that the relays operate.

Main Body





OK:

Relay operates. (Low beam headlights illuminate.)

NG -- INSPECT HEADLIGHT RELAY (H-LP RELAY)

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Exterior Lighting System

2. INSPECT HEADLIGHT RELAY (H-LP RELAY)

(a) Inspect the headlight relay Testing and Inspection.

NG -- REPLACE HEADLIGHT RELAY
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (HEADLIGHT RELAY - BATTERY)

(a) Remove the headlight relay from the No. 2 engine room relay block.

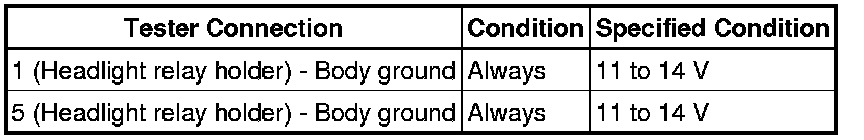

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





Text in Illustration





(c) Reinstall the headlight relay.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

4. CHECK HARNESS AND CONNECTOR (HEADLIGHT RELAY - INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY)

(a) Remove the headlight relay from the No. 2 engine room relay block.

(b) Disconnect the 3B instrument panel junction block assembly connector.

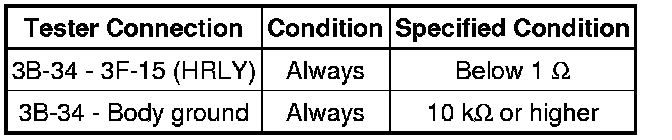

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





(d) Reconnect the instrument panel junction block assembly connector.

(e) Reinstall the headlight relay.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

5. INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

(a) Remove the instrument panel junction block assembly.





(b) Remove the main body ECU from the instrument panel junction block assembly.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





Text in Illustration





(d) Reinstall the main body ECU.

(e) Reinstall the instrument panel junction block assembly.

NG -- REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

OK -- REPLACE MAIN BODY ECU Removal
