Component Tests and General Diagnostics

LIGHTING (EXT): REAR COMBINATION LIGHT ASSEMBLY: ON-VEHICLE INSPECTION

1. INSPECT REAR COMBINATION LIGHT ASSEMBLY LH

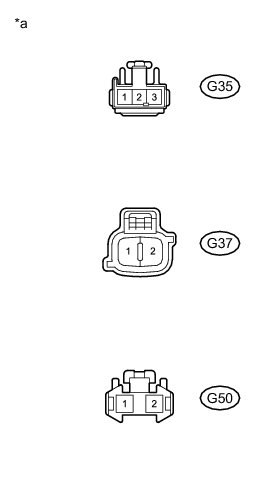

(a) Disconnect the connector from the rear combination light assembly LH.





Text in Illustration

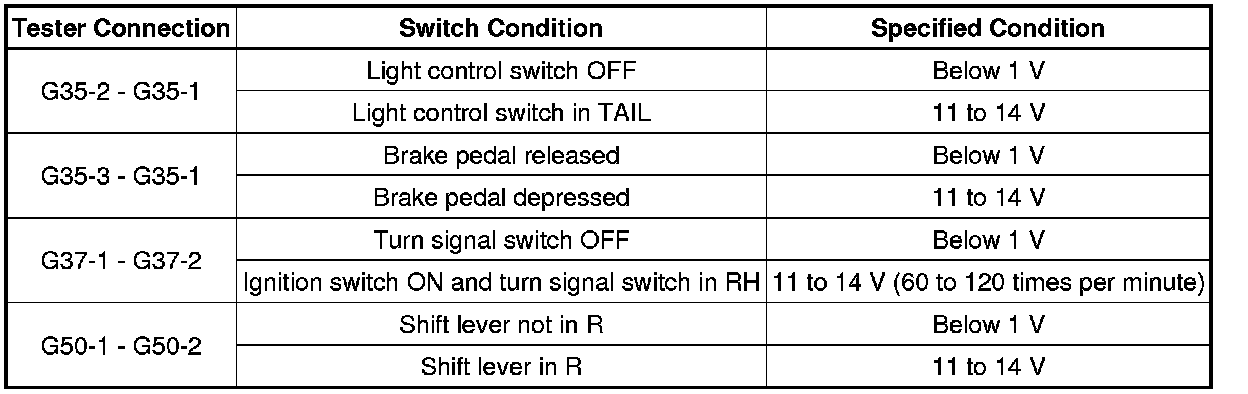

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





If the result is not as specified, repair or replace the wire harness or connector.

2. INSPECT REAR COMBINATION LIGHT ASSEMBLY RH

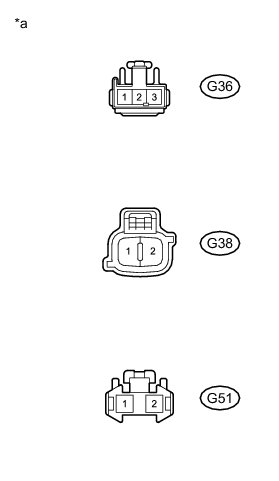

(a) Disconnect the connector from the rear combination light assembly RH.





Text in Illustration

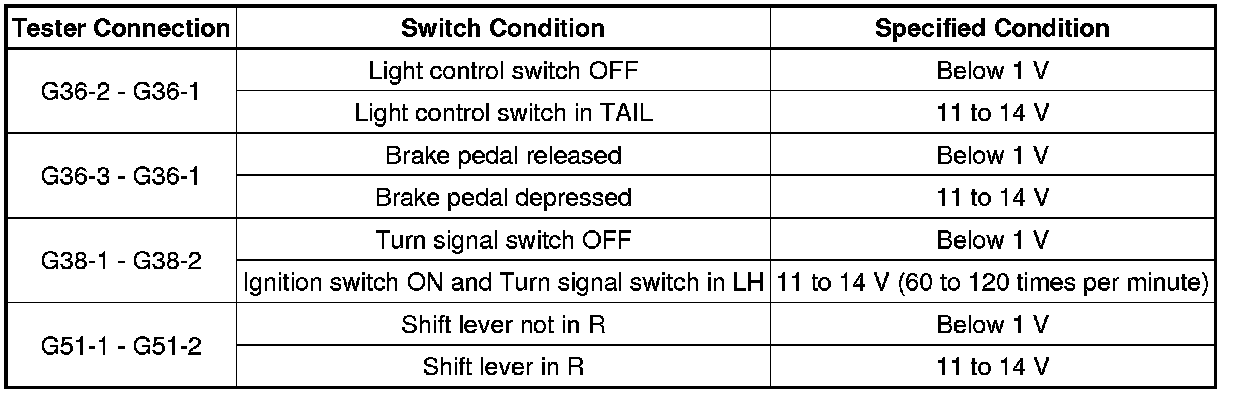

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





If the result is not as specified, repair or replace the wire harness or connector.
