System Description

LIGHTING (INT): LIGHTING SYSTEM: SYSTEM DESCRIPTION

1. ILLUMINATION CONTROL SYSTEM (ILLUMINATED ENTRY SYSTEM)

* The illuminated entry system provides convenience when getting in or out of the vehicle at night. This system controls the map light.

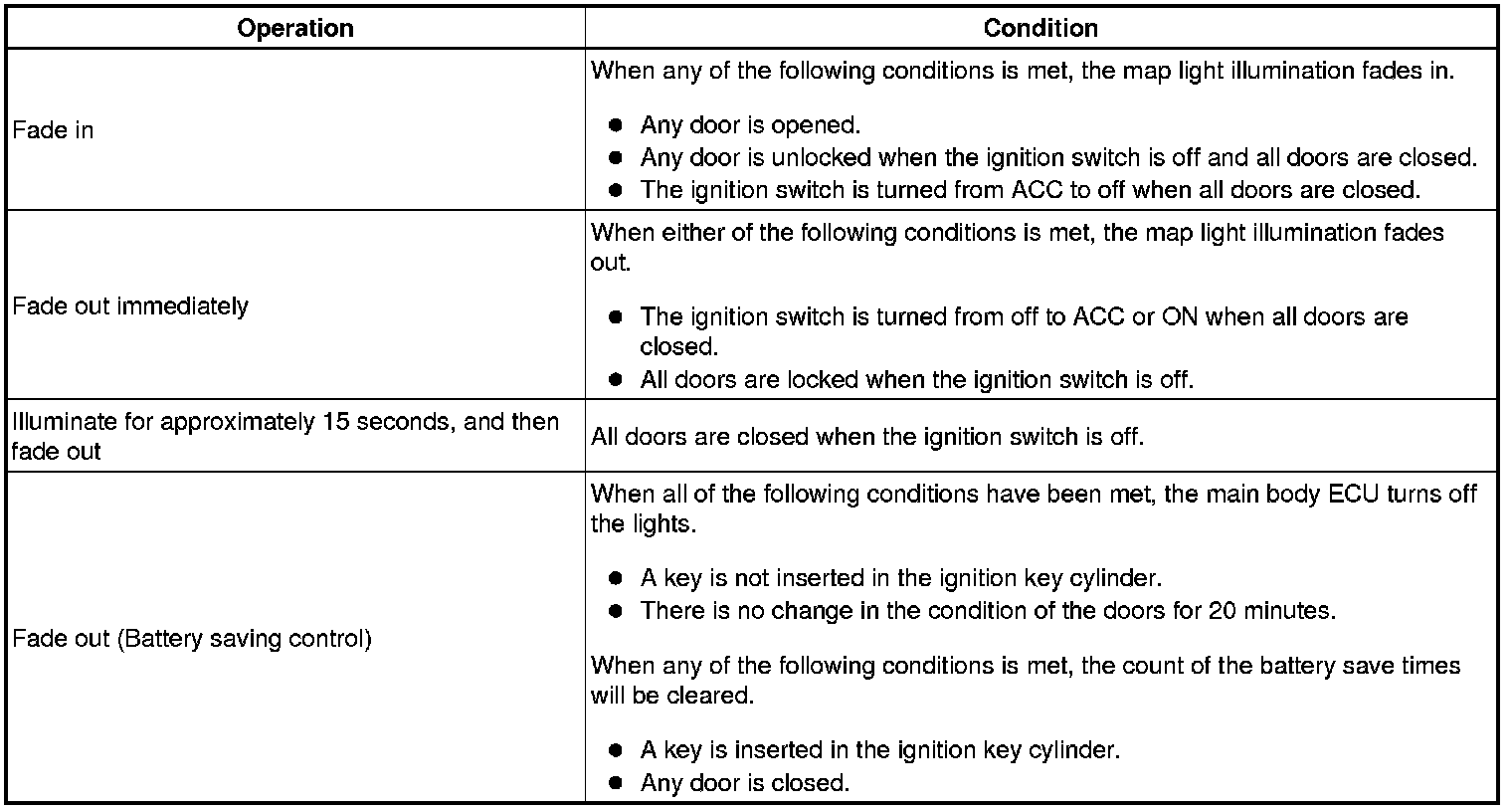

* This function is controlled by the main body ECU. The operation and condition of this control are described below.
