Meter / Gauge / Display

METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: Fuel Gauge Malfunction
- Fuel Gauge Malfunction

DESCRIPTION

The combination meter assembly controls the fuel receiver gauge in accordance with the resistance of the fuel sender gauge, which varies depending on the amount of fuel remaining in the fuel tank.

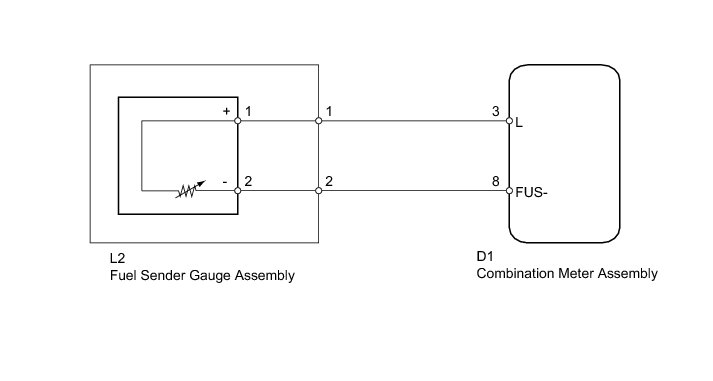

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CONFIRM DTC OUTPUT

(a) Check DTC Reading and Clearing Diagnostic Trouble Codes.

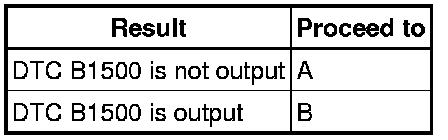

Result





B -- GO TO DIAGNOSTIC TROUBLE CODE CHART Meter / Gauge System
A -- Continue to next step.

2. PERFORM ACTIVE TEST USING TECHSTREAM (FUEL METER)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / Combination Meter / Active Test.

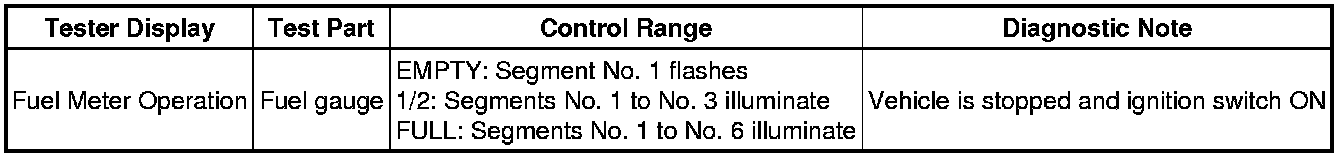

(e) According to the display on the Techstream, perform the Active Test.

Combination Meter





OK:

Fuel receiver gauge segments are illuminated in accordance with the Techstream instructions.

NG -- REPLACE COMBINATION METER ASSEMBLY Removal
OK -- Continue to next step.

3. INSPECT FUEL SENDER GAUGE ASSEMBLY

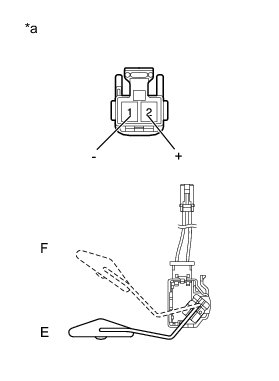

(a) Remove the fuel sender gauge assembly Removal.





(b) Measure the resistance according to the value(s) in the table below.

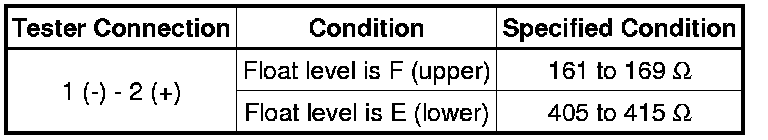

Standard Resistance:





Text in Illustration





(c) Reinstall the fuel sender gauge assembly.

NG -- REPLACE FUEL SENDER GAUGE ASSEMBLY Removal
OK -- Continue to next step.

4. CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - FUEL SENDER GAUGE ASSEMBLY)

(a) Disconnect the D1 combination meter assembly connector.

(b) Disconnect the L2 fuel sender gauge assembly connector.

(c) Measure the resistance according to the value(s) in the table below.

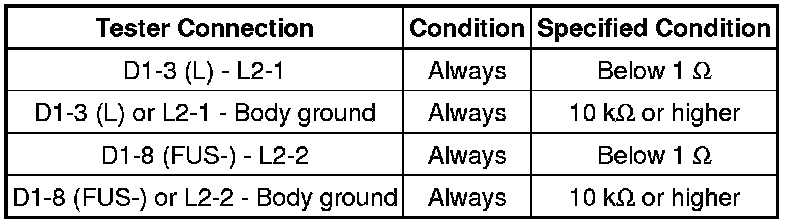

Standard Resistance:





(d) Reconnect the fuel sender gauge assembly connector.

(e) Reconnect the combination meter assembly connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE COMBINATION METER ASSEMBLY Removal
