System Description

METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: SYSTEM DESCRIPTION

1. METER GAUGE AND WARNING INDICATOR

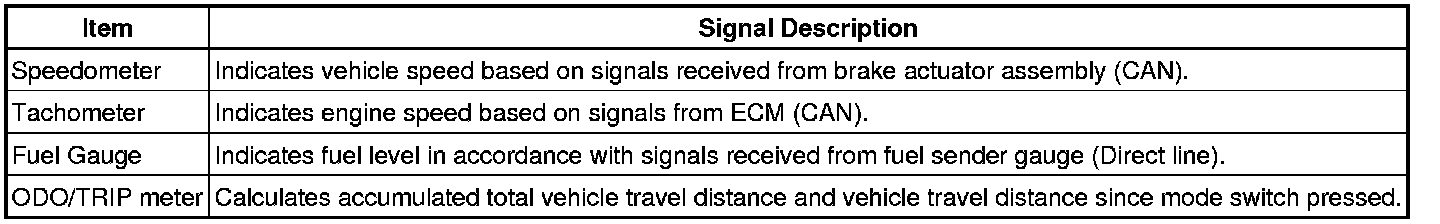

Meter/Gauge

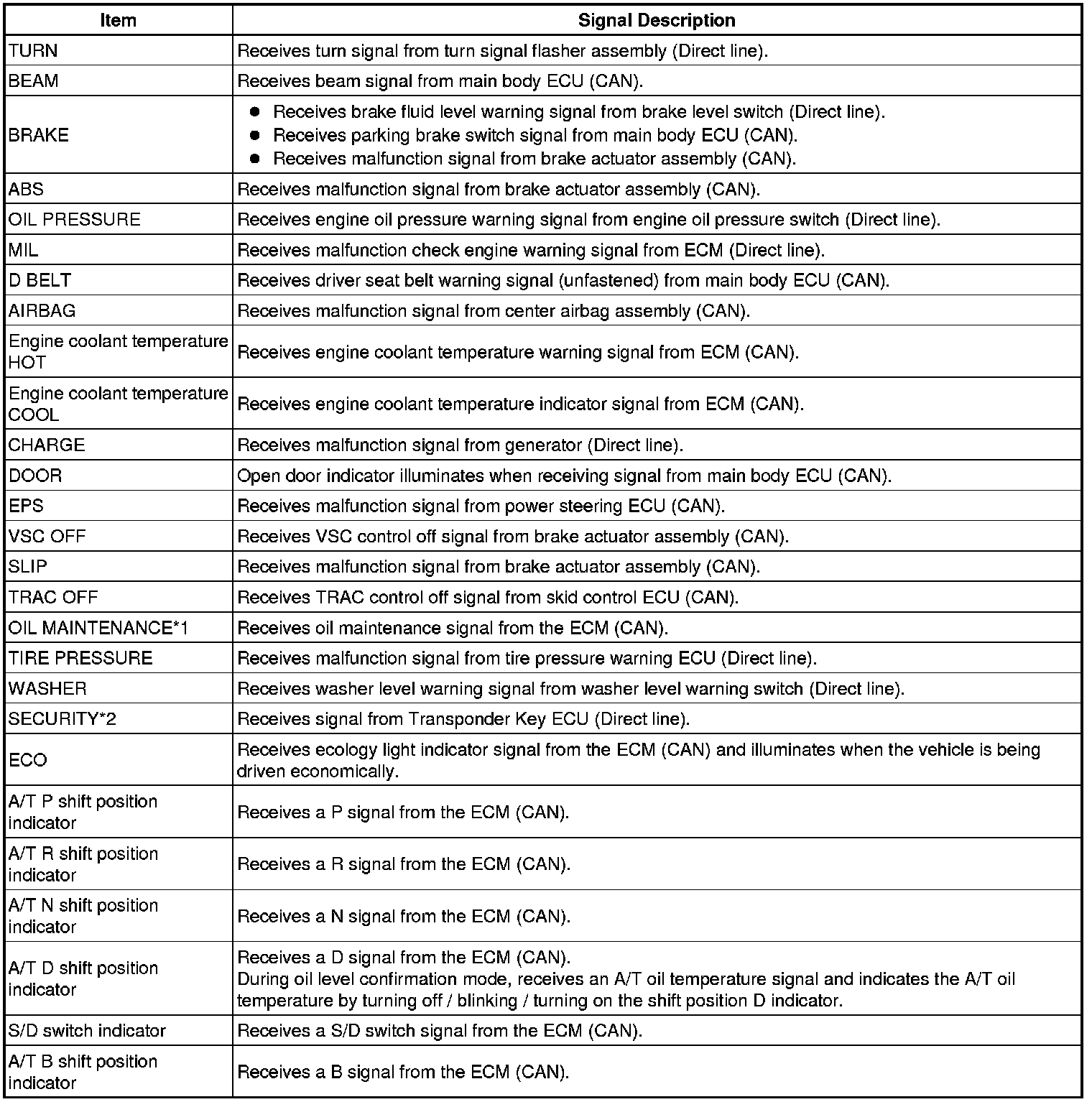

Warning/Indicator





* *1: for U. S. A.

* *2: w/ Engine Immobiliser System

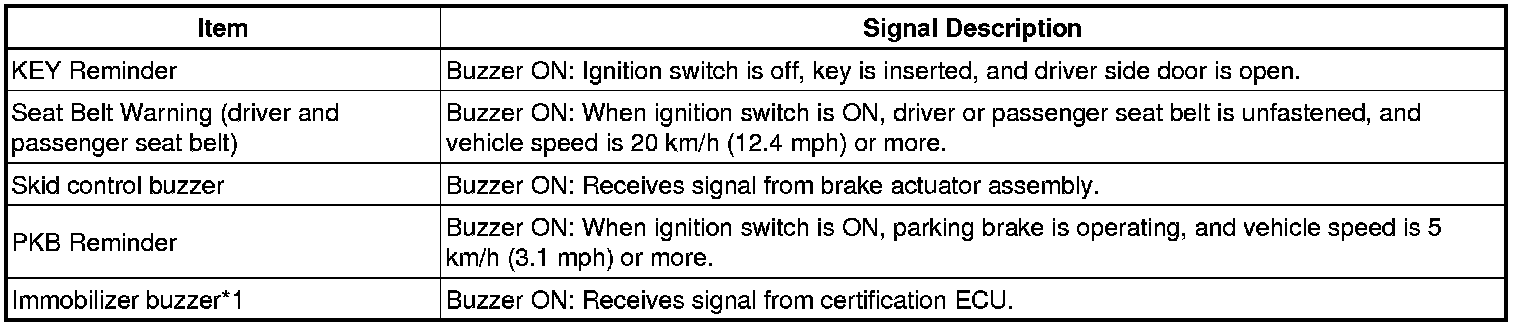

Buzzer





* *1: w/ Engine Immobiliser System

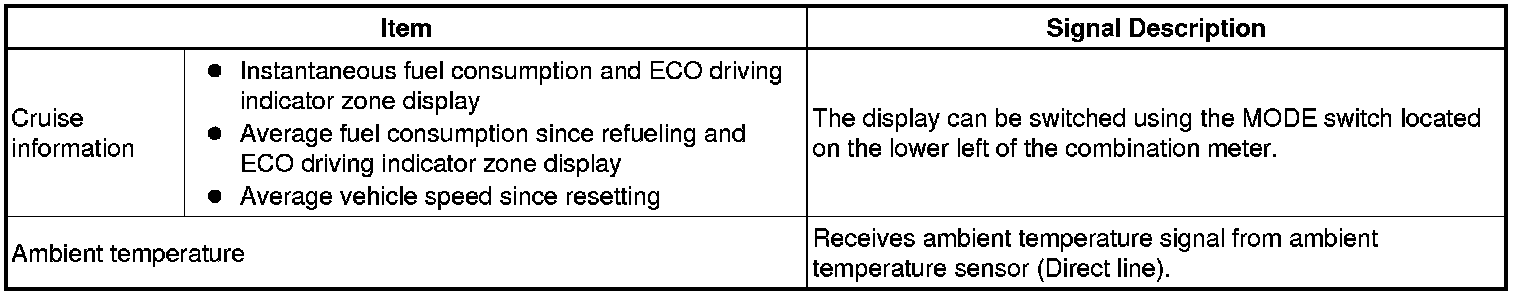

Cruise Information Display





2. LED CHECK

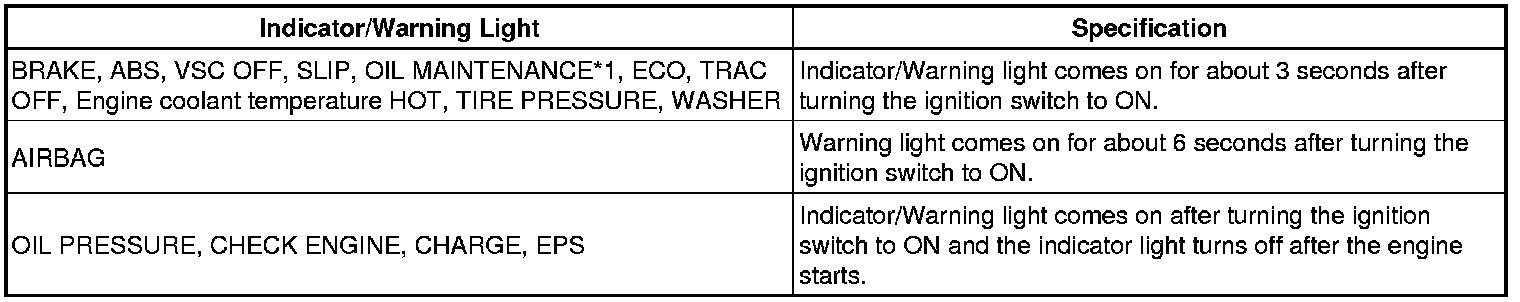

(a) Check the indicator/warning light operation according to the condition(s) in the table below.





* *1: for U. S. A.
