Installation

HEATING / AIR CONDITIONING: REFRIGERANT LINE: INSTALLATION

1. INSTALL PIPING CLAMP

(a) Install a new piping clamp onto the suction hose.





Text in Illustration





NOTICE:
Securely engage the inside step of the piping clamp in the suction groove.

(b) Remove the vinyl tape from the open ends of the suction hose and suction pipe.

(c) Thoroughly coat a new O-ring and the contact surface of the suction hose with compressor oil (ND-OIL8).

(d) Install the 2 O-rings onto the suction hose.

NOTICE:
Do not let foreign matter adhere to the O-ring or O-ring seal.

(e) Engage the suction hose and suction pipe by matching the alignment marks.

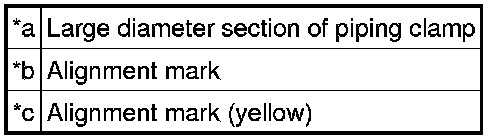

Text in Illustration





NOTICE:
Insert them by holding the pipe, not the piping clamp.

(f) Securely insert the piping clamp to the point where the large diameter section of the piping clamp is covered by the suction pipe.





Text in Illustration





NOTICE:
* When inserting, make sure that a click sound is heard.
* Check that the suction hose is securely inserted by pulling it.
