Installation

HEATING / AIR CONDITIONING: FRONT EVAPORATOR TEMPERATURE SENSOR: INSTALLATION

1. INSTALL NO. 1 COOLER THERMISTOR

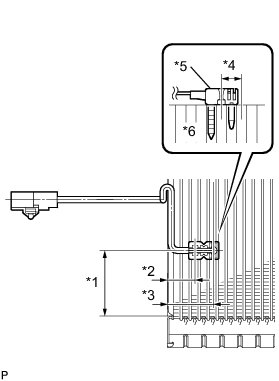

(a) Install the cooler thermistor as shown in the illustration.

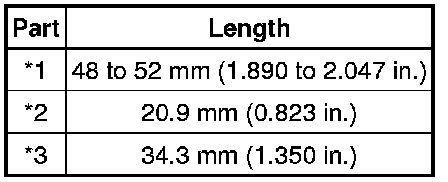

Standard:





NOTICE:
* Be sure to insert the sensor only once because reinserting it will not allow it to be firmly secured.
* When reusing the evaporator, insert the sensor one row next to the one that was used previously (*4 in the illustration).
* After inserting the sensor, do not apply excessive force to the wire.
* Directly insert the sensor until the edge of the plastic case "*5" comes into contact with the evaporator "*6".

2. INSTALL NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY Reassembly

3. INSTALL CLEAN AIR FILTER Reassembly

4. INSTALL AIR FILTER CASE Reassembly

5. INSTALL NO. 1 INSTRUMENT PANEL MOUNTING BRACKET Reassembly

6. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY Reassembly

7. INSTALL COOLER EXPANSION VALVE Reassembly

8. INSTALL HEATER RADIATOR UNIT SUB-ASSEMBLY Reassembly

9. INSTALL NO. 1 COOLER COVER Reassembly

10. INSTALL NO. 2 AIR DUCT SUB-ASSEMBLY (except Cold Area Specification Vehicles) Reassembly

11. INSTALL NO. 1 AIR DUCT SUB-ASSEMBLY (except Cold Area Specification Vehicles)

HINT
Use the same procedure as for the No. 2 side.

12. INSTALL NO. 2 AIR DUCT SUB-ASSEMBLY (for Cold Area Specification Vehicles) Reassembly

13. INSTALL NO. 1 AIR DUCT SUB-ASSEMBLY (for Cold Area Specification Vehicles)

HINT
Use the same procedure as for the No. 2 side.

14. INSTALL NO. 4 AIR DUCT SUB-ASSEMBLY Installation

15. INSTALL AIR CONDITIONING UNIT ASSEMBLY

Installation
