System Description

HEATING / AIR CONDITIONING: AIR CONDITIONING SYSTEM: SYSTEM DESCRIPTION

1. GENERAL

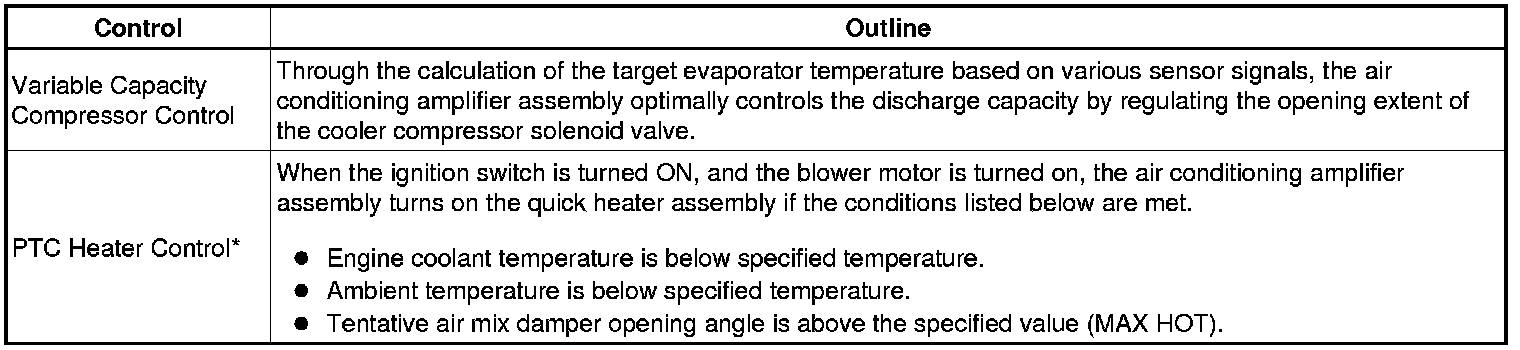

The air conditioning system has the following controls:





* *: w/ PTC Heater

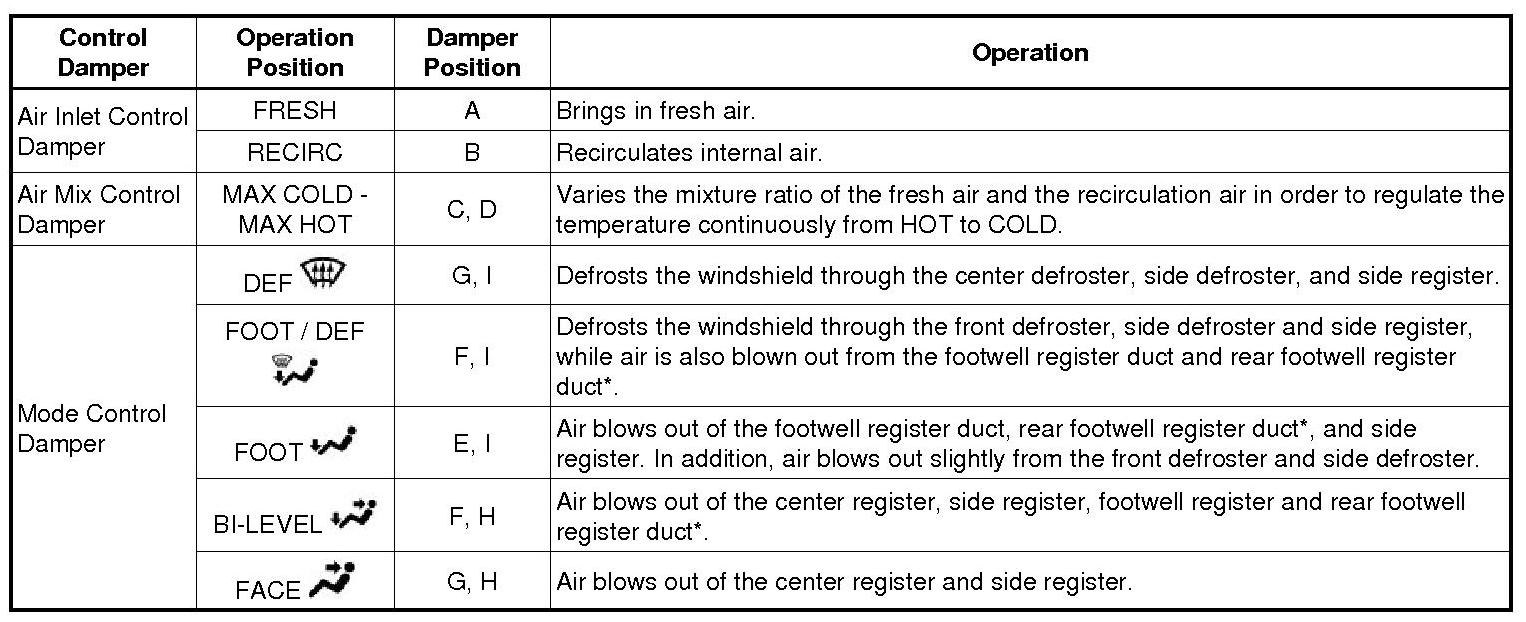

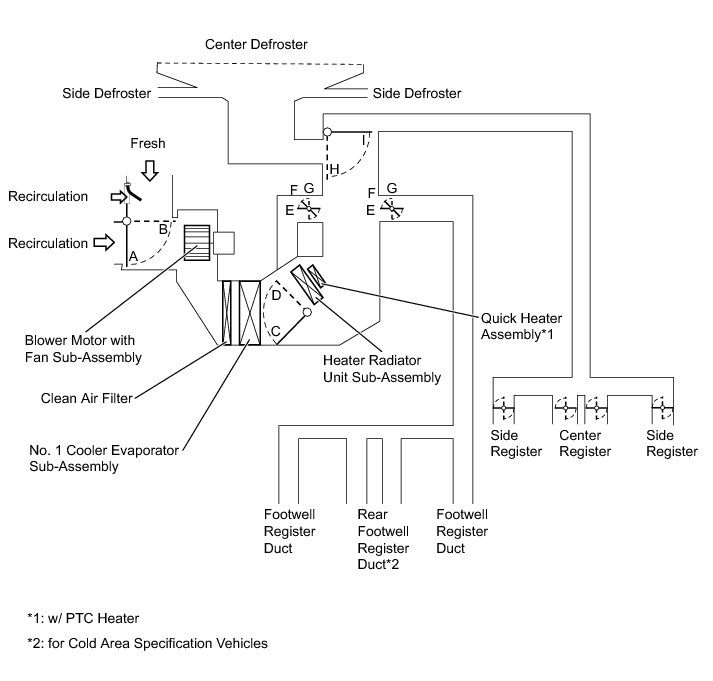

2. MODE POSITION AND DAMPER OPERATION









* *: for Cold Area Specification Vehicles

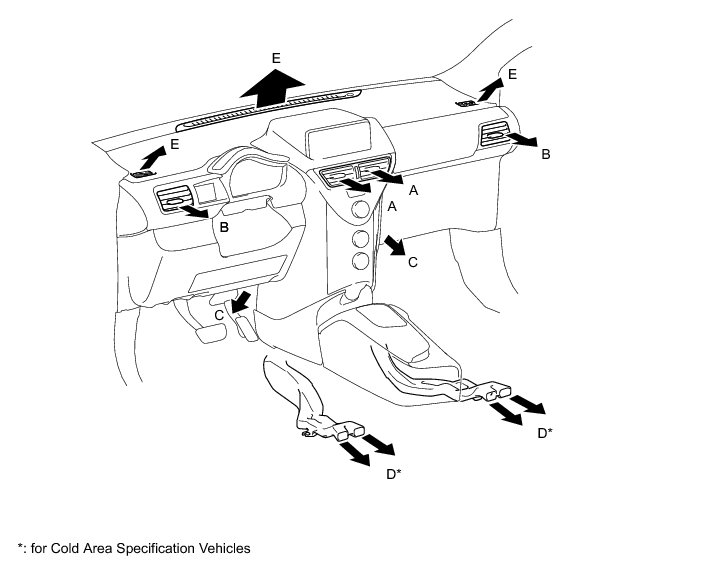

3. AIR OUTLETS AND AIRFLOW VOLUME

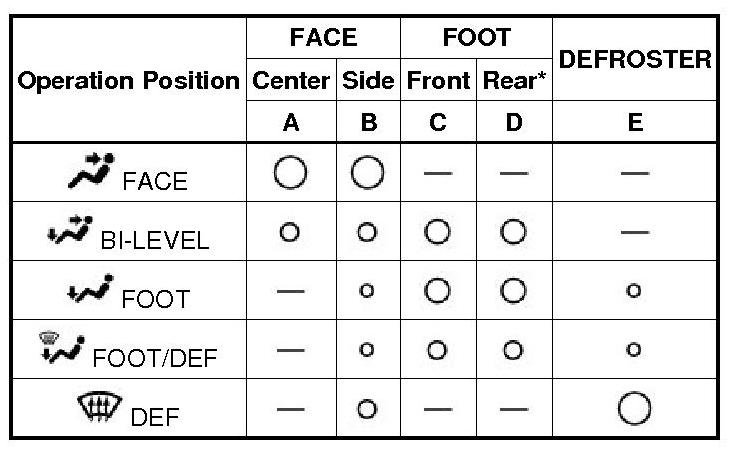

* The size of the circle o indicates the proportion of airflow volume.

* *: for Cold Area Specification Vehicles
