Blower Motor: Testing and Inspection

HEATING / AIR CONDITIONING: FRONT BLOWER MOTOR: INSPECTION

1. INSPECT BLOWER MOTOR WITH FAN SUB-ASSEMBLY

(a) Check the operation.





Text in Illustration

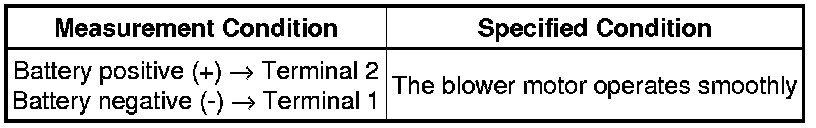

(1) Apply battery voltage to the blower motor and check the operation of the motor.

OK:





If the result is not as specified, replace the blower motor.
