Blower Motor Resistor: Testing and Inspection

HEATING / AIR CONDITIONING: BLOWER RESISTOR: INSPECTION

1. INSPECT BLOWER RESISTOR

(a) Check the resistance.

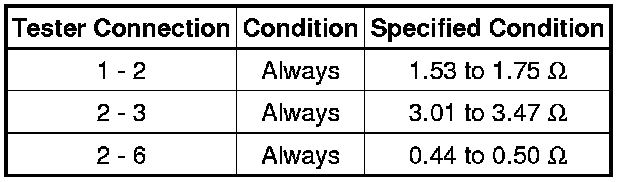

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the blower resistor.
