Installation

1NR-FE COOLING: WATER PUMP: INSTALLATION

1. INSTALL ENGINE WATER PUMP ASSEMBLY

(a) Install the engine water pump assembly and a new water pump gasket to the timing chain cover sub-assembly with the 5 bolts.

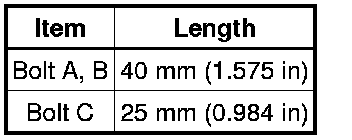

Bolt Length





Bolt A - Torque : 71 Nm (724 kgf-cm, 52 ft-lbf)

Bolt B - Torque : 24 Nm (245 kgf-cm, 18 ft-lbf)

Bolt C - Torque : 21 Nm (214 kgf-cm, 15 ft-lbf)

2. INSTALL WATER PUMP PULLEY





(a) Using SST, hold the water pump pulley.

SST : 09960-10010

09962-01000

09963-00600

(b) Install the water pump pulley with the 4 bolts.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

3. INSTALL GENERATOR ASSEMBLY (for 80A Type)

Installation

4. INSTALL GENERATOR ASSEMBLY (for 100A Type)

Installation

5. INSTALL FAN AND GENERATOR V BELT

Installation

6. ADD ENGINE COOLANT Service and Repair

7. INSPECT FOR COOLANT LEAK Testing and Inspection
