Part 2

1NR-FE ENGINE MECHANICAL: ENGINE UNIT: DISASSEMBLY

26. REMOVE NO. 2 CHAIN VIBRATION DAMPER





(a) Remove the 2 bolts and the No. 2 chain vibration damper.

27. REMOVE TIMING CHAIN TENSION ARM





(a) Remove the bolt and the timing chain tension arm.

28. REMOVE CHAIN SUB-ASSEMBLY

(a) Remove the chain.

29. REMOVE TIMING CHAIN GUIDE





(a) Remove the 2 bolts and the timing chain guide.

30. REMOVE CAMSHAFT TIMING GEAR ASSEMBLY





(a) Check the lock of the camshaft timing gear.

(b) Release the lock pin.

NOTICE:
Before removing the camshaft timing gear, make sure that the lock pin has been released.

(1) After cleaning and degreasing the VVT oil hole on the intake side of the No. 1 camshaft bearing cap, completely seal the oil hole with adhesive tape or equivalent as shown in the illustration to prevent air from leaking.

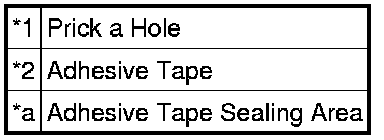

Text in Illustration





NOTICE:
Be sure to cover the oil hole completely because air leaks due to insufficient sealing will prevent the lock pin from being released.

(2) Prick a hole in the tape covering the oil hole as shown in the illustration (Procedure A).

(3) Apply approximately 150 kPa (1.5 kgf/cm2, 22 psi) of air pressure to the hole pricked in procedure A to release the lock pin.





NOTICE:
* If air leaks out, reattach adhesive tape.
* Cover the oil hole with a piece of cloth when applying air pressure to prevent oil from spraying.
* Do not lock the camshaft timing gear. If it is locked, release the lock pin again.

HINT
* The camshaft timing gear may be turned in the advance direction without applying any force.
* If enough air pressure cannot be applied because of air leakage from the port, releasing the lock pin may be difficult.

(4) Remove the adhesive tape from the No. 1 camshaft bearing cap.

(c) Remove the flange bolt while holding the hexagonal portion of the camshaft, and then remove the camshaft timing gear.





Text in Illustration





NOTICE:
* Before removing the camshaft timing gear, make sure that the lock pin has been released.
* Be sure not to remove the other 4 bolts.
* Keep the camshaft timing gear horizontal while removing it from the camshaft.

31. REMOVE CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY





(a) Remove the flange bolt while holding the hexagonal portion of the camshaft, and then remove the camshaft timing exhaust gear.

Text in Illustration





NOTICE:
* Be sure not to remove the other 4 bolts.
* Keep the camshaft timing exhaust gear horizontal while removing it from the camshaft.

32. REMOVE CAMSHAFT BEARING CAP





(a) Uniformly loosen and remove the 5 bearing cap bolts in the sequence shown in the illustration.

(b) Uniformly loosen and remove the 15 bearing cap bolts in the sequence shown in the illustration.





NOTICE:
Uniformly loosen the bolts while keeping the camshaft level.

(c) Remove the 5 bearing caps.

HINT
Arrange the removed parts in the correct order.

33. REMOVE NO. 2 CAMSHAFT





(a) Remove the No. 2 camshaft.

34. REMOVE CAMSHAFT





(a) Remove the camshaft.

35. REMOVE NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY





(a) Remove the 16 valve rocker arms.

HINT
Arrange the removed parts in the correct order.

36. REMOVE VALVE LASH ADJUSTER ASSEMBLY





(a) Remove the 16 valve lash adjusters from the cylinder head.

HINT
Arrange the removed parts in the correct order.

37. REMOVE CAMSHAFT HOUSING SUB-ASSEMBLY

(a) Remove the 3 bolts.

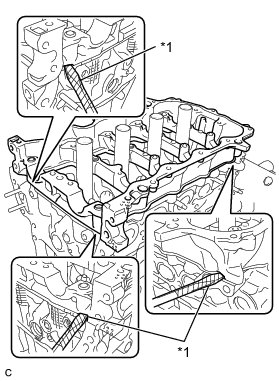

(b) Using a screwdriver with its tip wrapped with protective tape, remove the camshaft housing by prying between the cylinder head and camshaft housing.





Text in Illustration





NOTICE:
Be careful not to damage the contact surfaces of the cylinder head and camshaft housing.

38. REMOVE CYLINDER HEAD SUB-ASSEMBLY





(a) Using several steps, uniformly loosen and remove the 10 cylinder head bolts and 10 plate washers with a 10 mm bi-hexagon wrench in the sequence shown in the illustration.

NOTICE:
Head warpage or cracking could result from removing the bolts in the wrong order.

(b) Using a screwdriver with its tip wrapped with protective tape, pry between the cylinder head and cylinder block, and remove the cylinder head.

NOTICE:
Be careful not to damage the contact surfaces of the cylinder head and cylinder block.

39. REMOVE CYLINDER HEAD GASKET





(a) Remove the cylinder head gasket.

40. REMOVE CYLINDER BLOCK WATER JACKET SPACER





(a) Remove the cylinder block water jacket spacer from the cylinder block.

41. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY





(a) Remove the oil pan drain plug and gasket from the No. 2 oil pan.

(b) Remove the 9 bolts.

(c) Insert the blade of the oil pan seal cutter between the oil pans as shown in the diagram. Cut through the applied sealer and remove the No. 2 oil pan.





Text in Illustration





NOTICE:
Be careful not to damage the contact surfaces of the oil pan.

42. REMOVE OIL PAN SUB-ASSEMBLY





(a) Uniformly loosen and remove the 10 bolts.

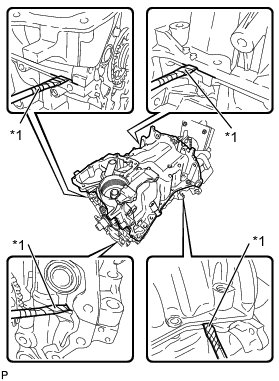

(b) Using a screwdriver with its tip wrapped with protective tape, remove the oil pan by prying between the oil pan and cylinder block.





Text in Illustration





NOTICE:
Be careful not to damage the contact surfaces of the crankcase and cylinder block.

(c) Remove the oil pan O-ring from the cylinder block.





43. REMOVE NO. 1 OIL PAN BAFFLE PLATE





(a) Remove the 6 bolts and the No. 1 oil pan baffle plate from the oil pan.

44. REMOVE OIL STRAINER SUB-ASSEMBLY

(a) Remove the 2 bolts and the oil strainer from the oil pan.
