1NR-FE ENGINE MECHANICAL: CYLINDER HEAD: REPLACEMENT
1. REPLACE INTAKE VALVE GUIDE BUSH
(a) Heat the cylinder head to 80 to 100°C (176 to 212°F).
(b) Place the cylinder head on wooden blocks.
(c) Using SST and a hammer, tap out the guide bush.
SST : 09201-10000
09201-01050
SST : 09950-70010
09951-07100
(d) Using a caliper gauge, measure the bush bore diameter of the cylinder head.
Bush bore diameter:
10.285 to 10.306 mm (0.40492 to 0.40575 in.)

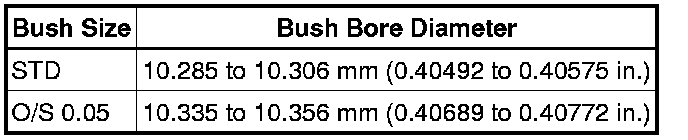

Select a New Guide Bush (STD or O/S 0.05):
If the bush bore diameter of the cylinder head is greater than 10.306 mm (0.40575 in.), machine the bush bore to the dimension of 10.335 to 10.356 mm (0.40689 to 0.40772 in.) to install an O/S 0.05 valve guide bush. If the bush bore diameter of the cylinder head is greater than 10.356 mm (0.40772 in.), replace the cylinder head.
(e) Heat the cylinder head to 80 to 100°C (176 to 212°F).
(f) Place the cylinder head on wooden blocks.
(g) Using SST and a hammer, tap a new guide bush into the specified protrusion height.
SST : 09201-10000
09201-01050
SST : 09950-70010
09951-07100
Protrusion height:
9.6 to 10.0 mm (0.378 to 0.394 in.)
(h) Using a sharp 5.5 mm reamer, ream the guide bush to obtain the standard clearance between the guide bush and valve stem.
Standard oil clearance:
0.025 to 0.060 mm (0.000984 to 0.00236 in.)
2. REPLACE EXHAUST VALVE GUIDE BUSH
(a) Heat the cylinder head to 80 to 100°C (176 to 212°F).
(b) Place the cylinder head on wooden blocks.
(c) Using SST and a hammer, tap out the guide bush.
SST : 09201-10000
09201-01050
SST : 09950-70010
09951-07100
(d) Using a caliper gauge, measure the bush bore diameter of the cylinder head.
Standard diameter:
10.285 to 10.306 mm (0.40492 to 0.40575 in.)
Select a New Guide Bush (STD or O/S 0.05):
If the bush bore diameter of the cylinder head is greater than 10.306 mm (0.40575 in.), machine the bush bore to the dimension of 10.335 to 10.356 mm (0.40689 to 0.40772 in.) to install an O/S 0.05 valve guide bush. If the bush bore diameter of the cylinder head is greater than 10.356 mm (0.40772 in.), replace the cylinder head.
(e) Heat the cylinder head to 80 to 100°C (176 to 212°F).
(f) Place the cylinder head on wooden blocks.
(g) Using SST and a hammer, tap a new guide bush into the specified protrusion height.
SST : 09201-10000
09201-01050
SST : 09950-70010
09951-07100
Protrusion height:
9.6 to 10.0 mm (0.378 to 0.394 in.)
(h) Using a sharp 5.5 mm reamer, ream the guide bush to obtain the standard clearance between the guide bush and valve stem.
Standard oil clearance:
0.030 to 0.065 mm (0.00118 to 0.00256 in.)
3. REPLACE RING PIN
NOTICE:
It is not necessary to remove the ring pins unless they are being replaced.
(a) Remove the ring pins.

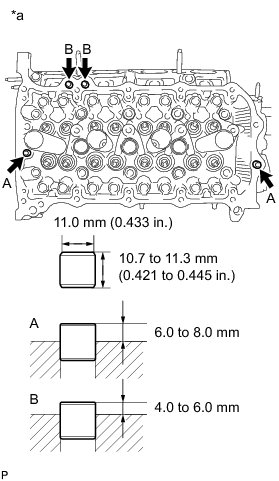

(b) Using a plastic hammer, tap in new ring pins to the specified protrusion height.
Text in Illustration

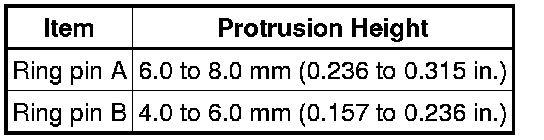

Protrusion Height:
4. REPLACE STUD BOLT
NOTICE:
If any of the stud bolts is deformed or the threads are damaged, replace it.

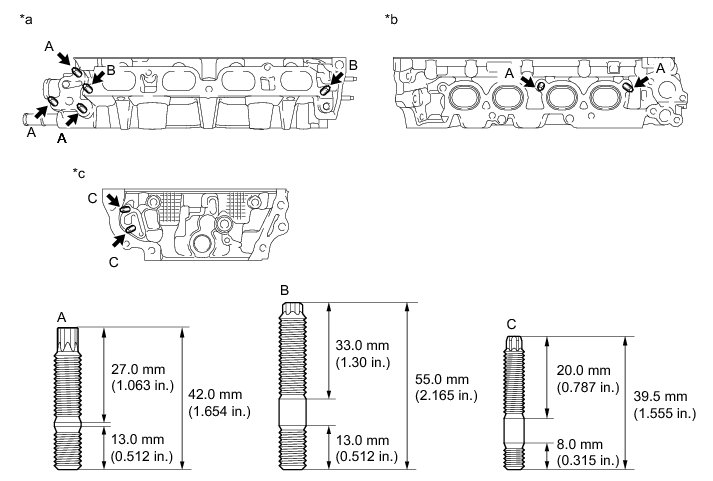

(a) Using "TORX" socket wrenches E5 and E8, remove the stud bolts.
Text in Illustration
(b) Using "TORX" socket wrenches E5 and E8, install the stud bolts.
Stud bolt A and B - Torque : 7.5 Nm (76 kgf-cm, 66 in-lbf)
Stud bolt C - Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)
