Procedures

1NR-FE ENGINE MECHANICAL: CYLINDER BLOCK: REPLACEMENT

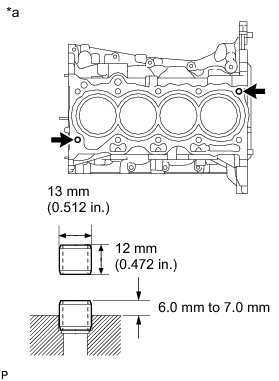

1. REPLACE RING PIN





NOTICE:
It is not necessary to remove the ring pins unless they are being replaced.

(a) Remove the ring pins.

Text in Illustration





(b) Using a plastic hammer, tap in the ring pins.

Standard protrusion:

6.0 to 7.0 mm (0.236 to 0.276 in.)

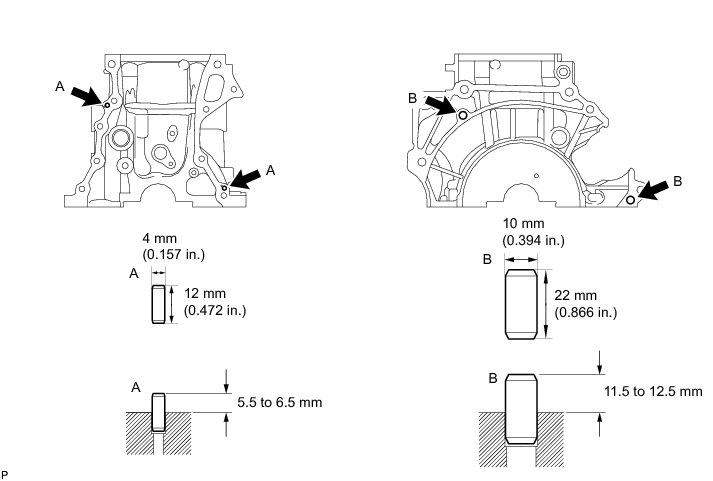

2. REPLACE STRAIGHT PIN

NOTICE:
It is not necessary to remove the straight pins unless they are being replaced.





(a) Remove the straight pins.

(b) Using a plastic hammer, tap in the straight pins.

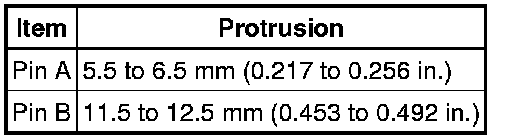

Standard Protrusion:
