Radiator Cooling Fan Motor Relay: Testing and Inspection

1NR-FE COOLING: RELAY: ON-VEHICLE INSPECTION

1. INSPECT NO. 1 COOLING FAN RELAY





(a) Check the resistance.

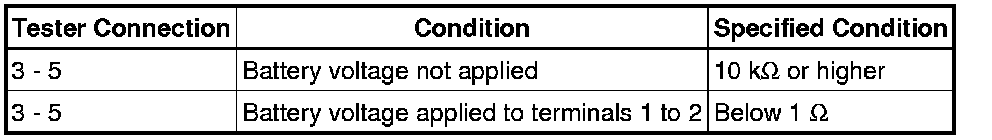

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





* If the result is not as specified, replace the relay.

2. INSPECT NO. 2 COOLING FAN RELAY





(a) Check the resistance.

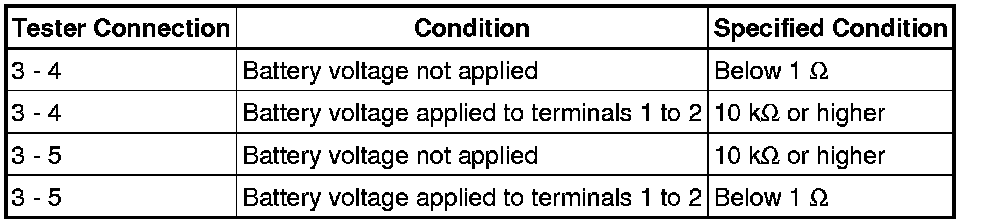

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





* If the result is not as specified, replace the relay.
