36 - 40 - Instrument Panel J/B Assembly Inner Circuit

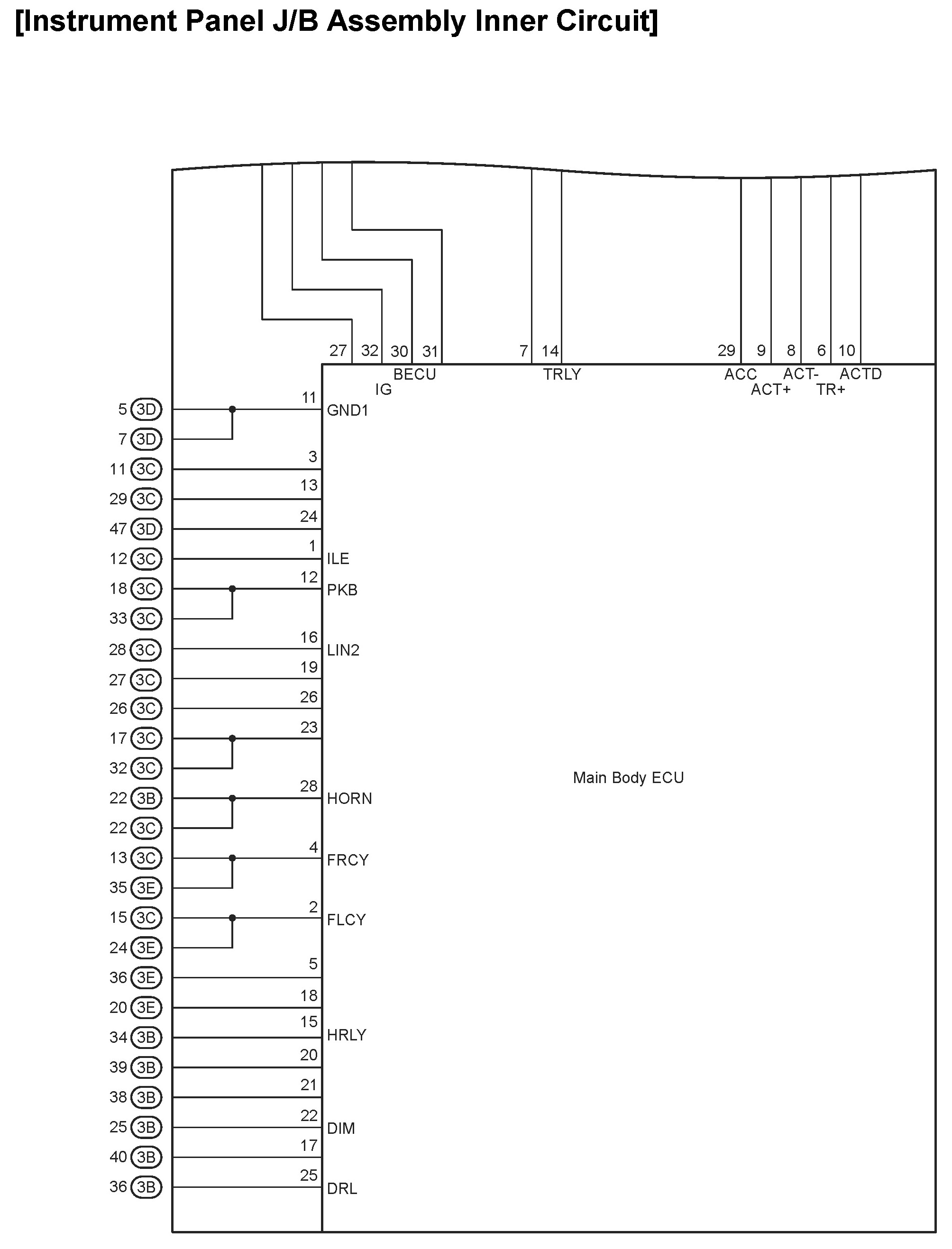

36 - Instrument Panel J/B Assembly Inner Circuit:

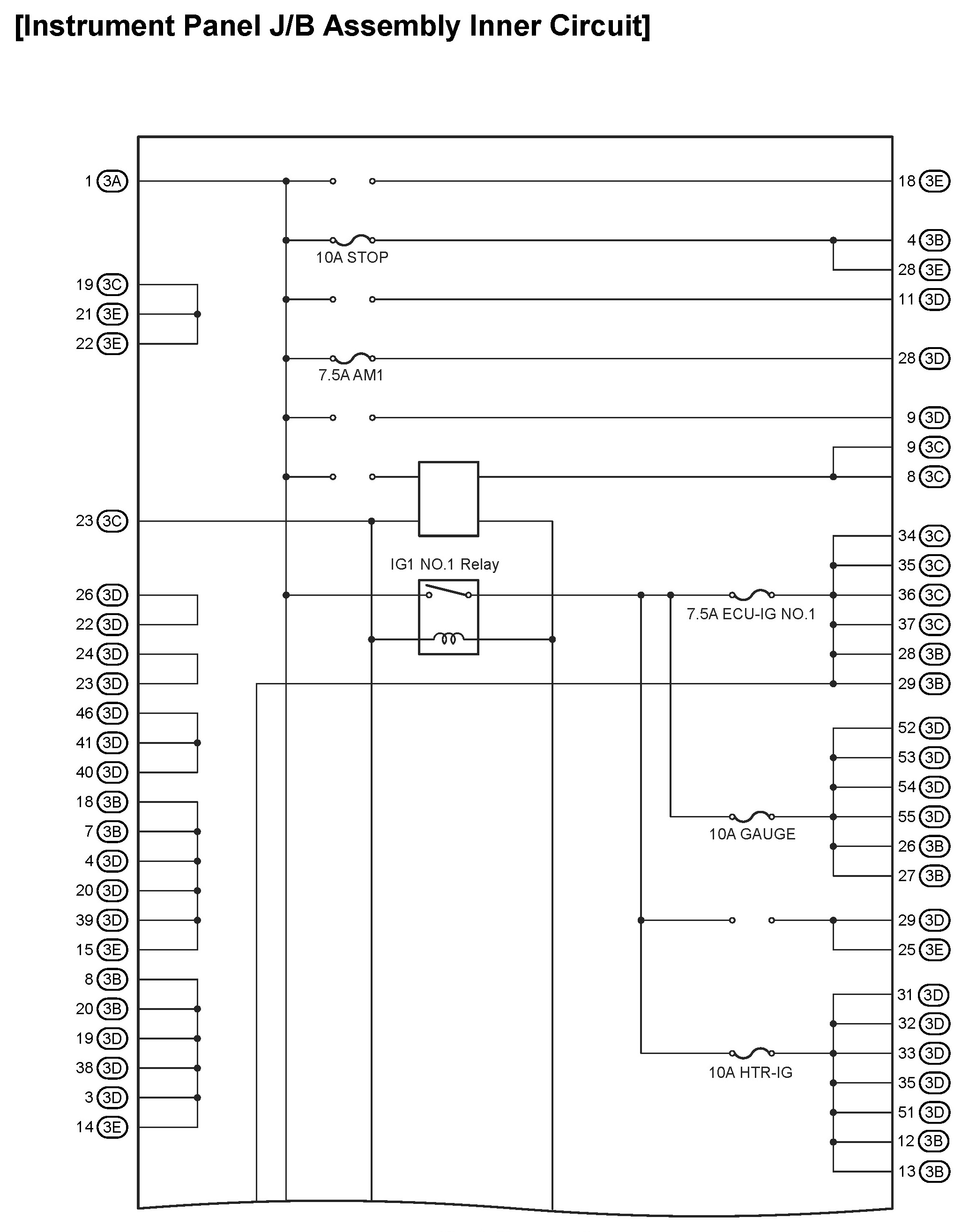

37 - Instrument Panel J/B Assembly Inner Circuit:

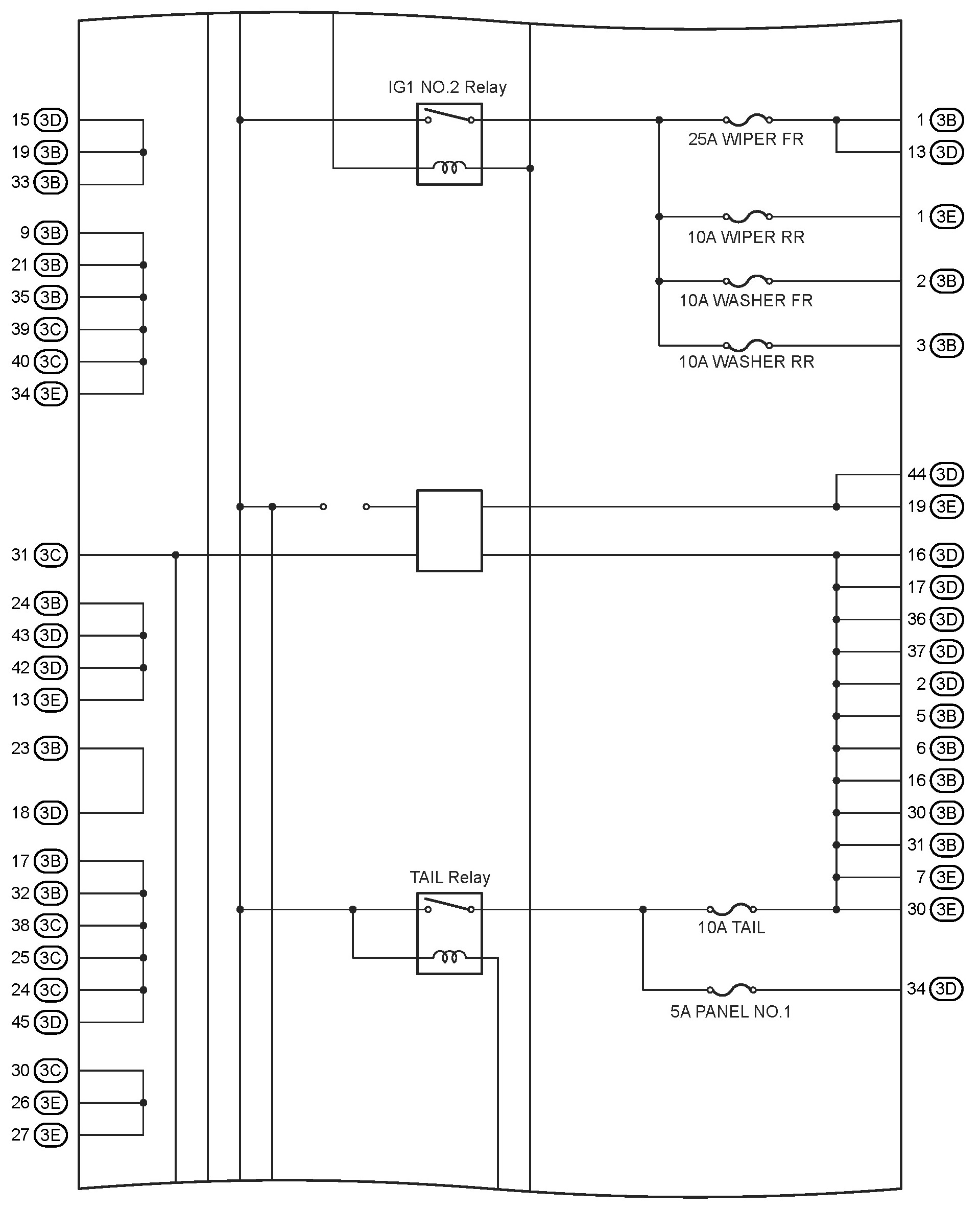

38 - Instrument Panel J/B Assembly Inner Circuit:

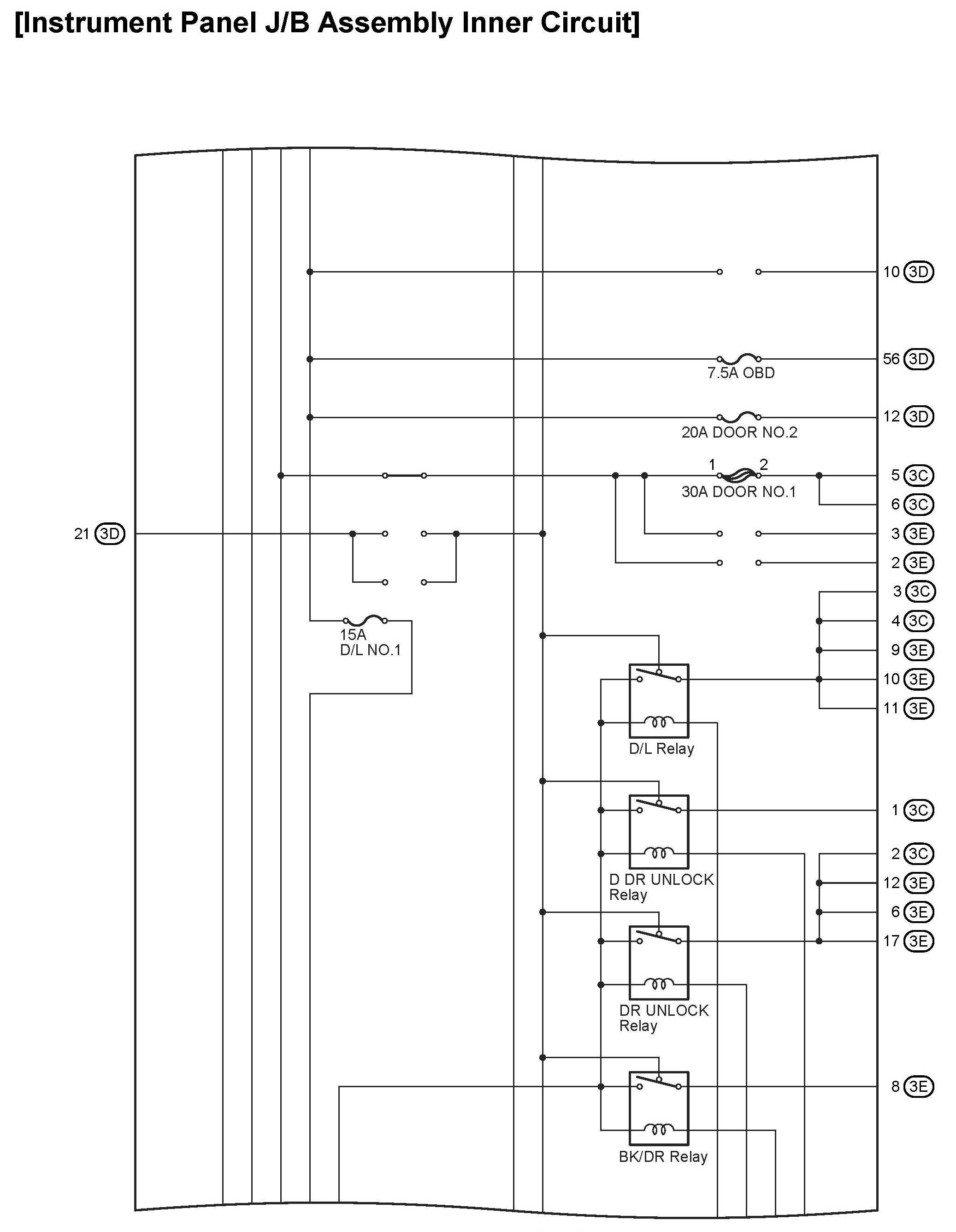

39 - Instrument Panel J/B Assembly Inner Circuit:

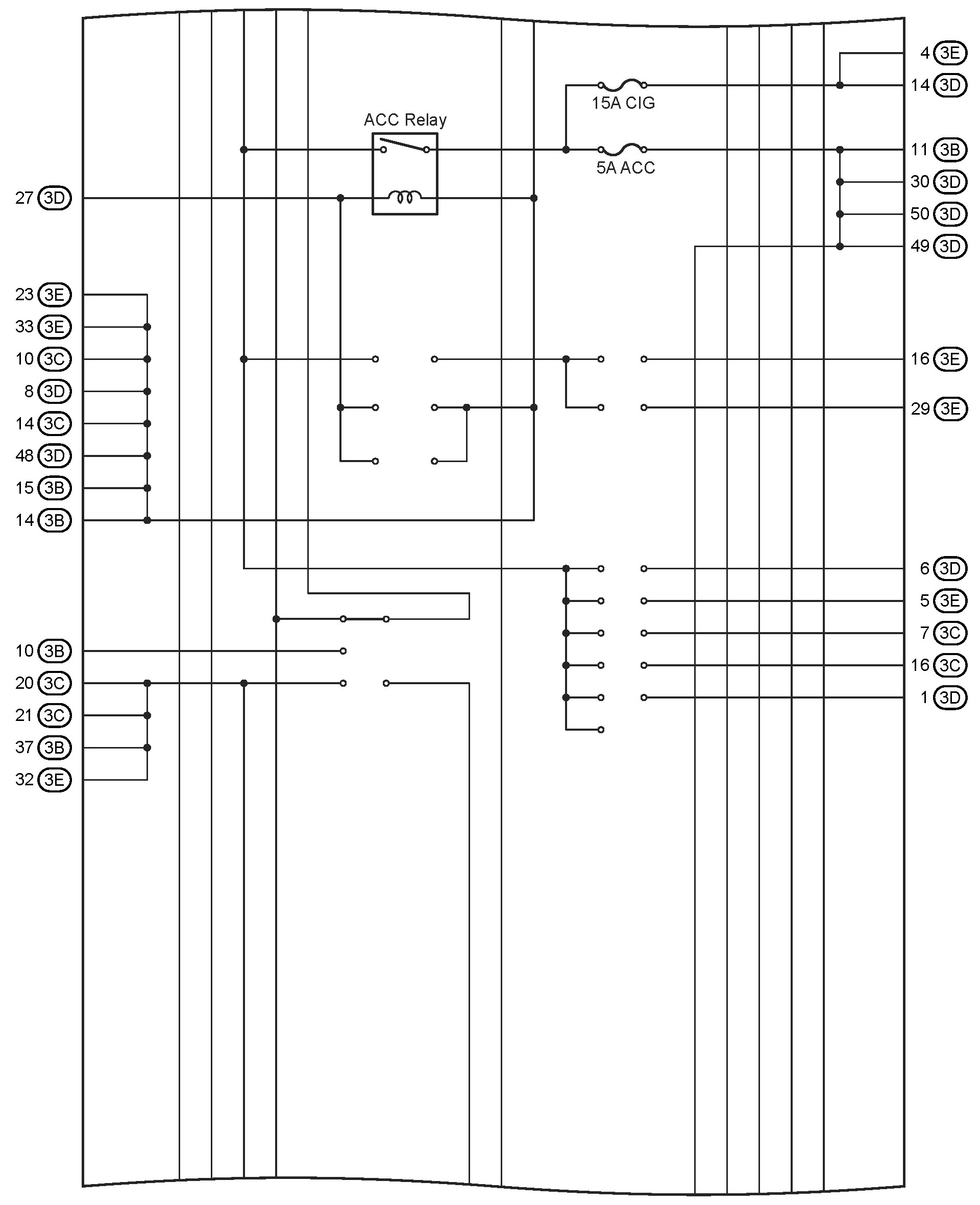

40 - Instrument Panel J/B Assembly Inner Circuit:
