Home >> Scion >> 2012 >> iQ L4-1.3L (1NR-FE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Relay Box >> 26 - 27 - Engine Room R/B No. 1 and Engine Room J/B No. 1 Inner Circuit

26 - 27 - Engine Room R/B No. 1 and Engine Room J/B No. 1 Inner Circuit

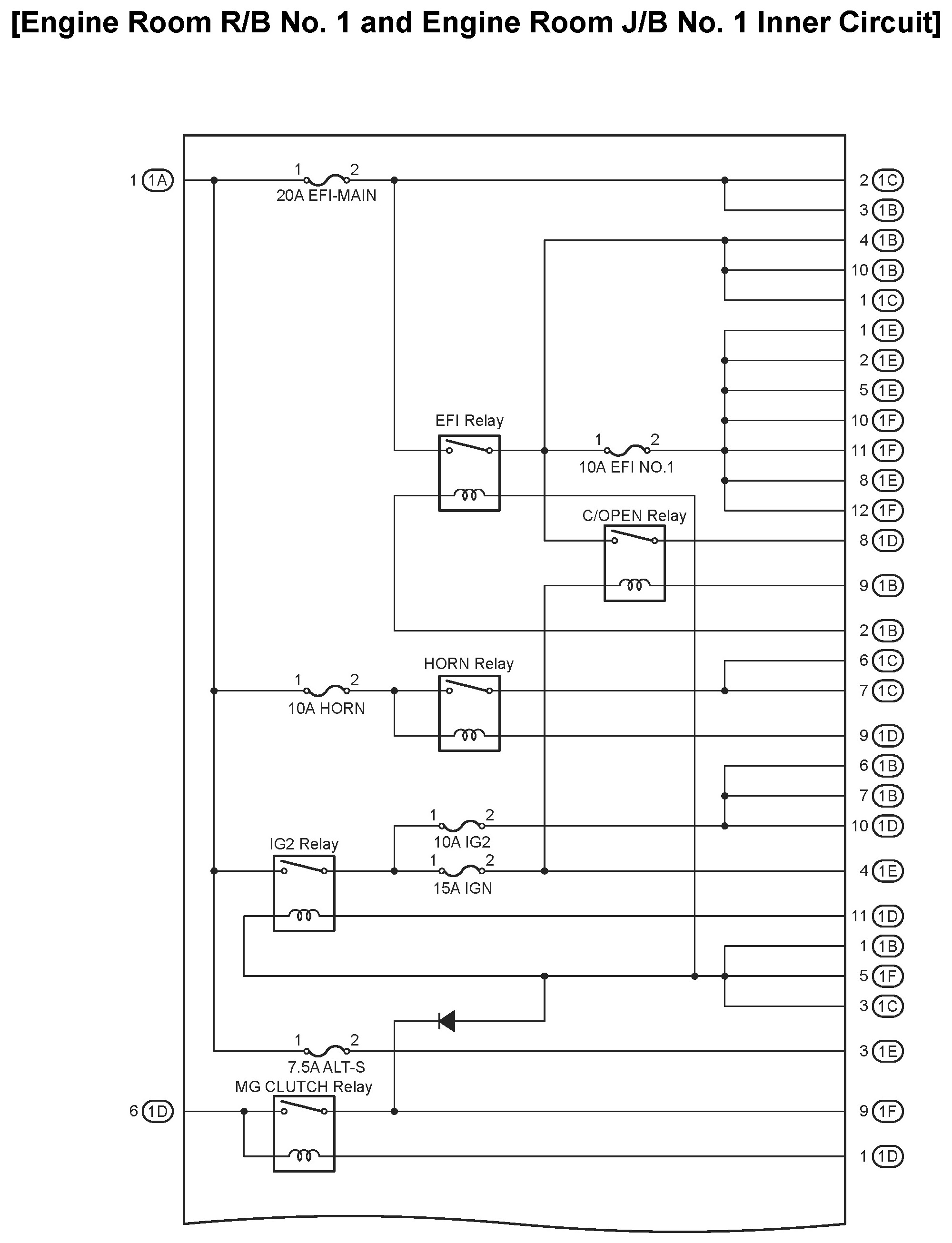

26 - Engine Room R/B No. 1 and Engine Room J/B No. 1 Inner Circuit:

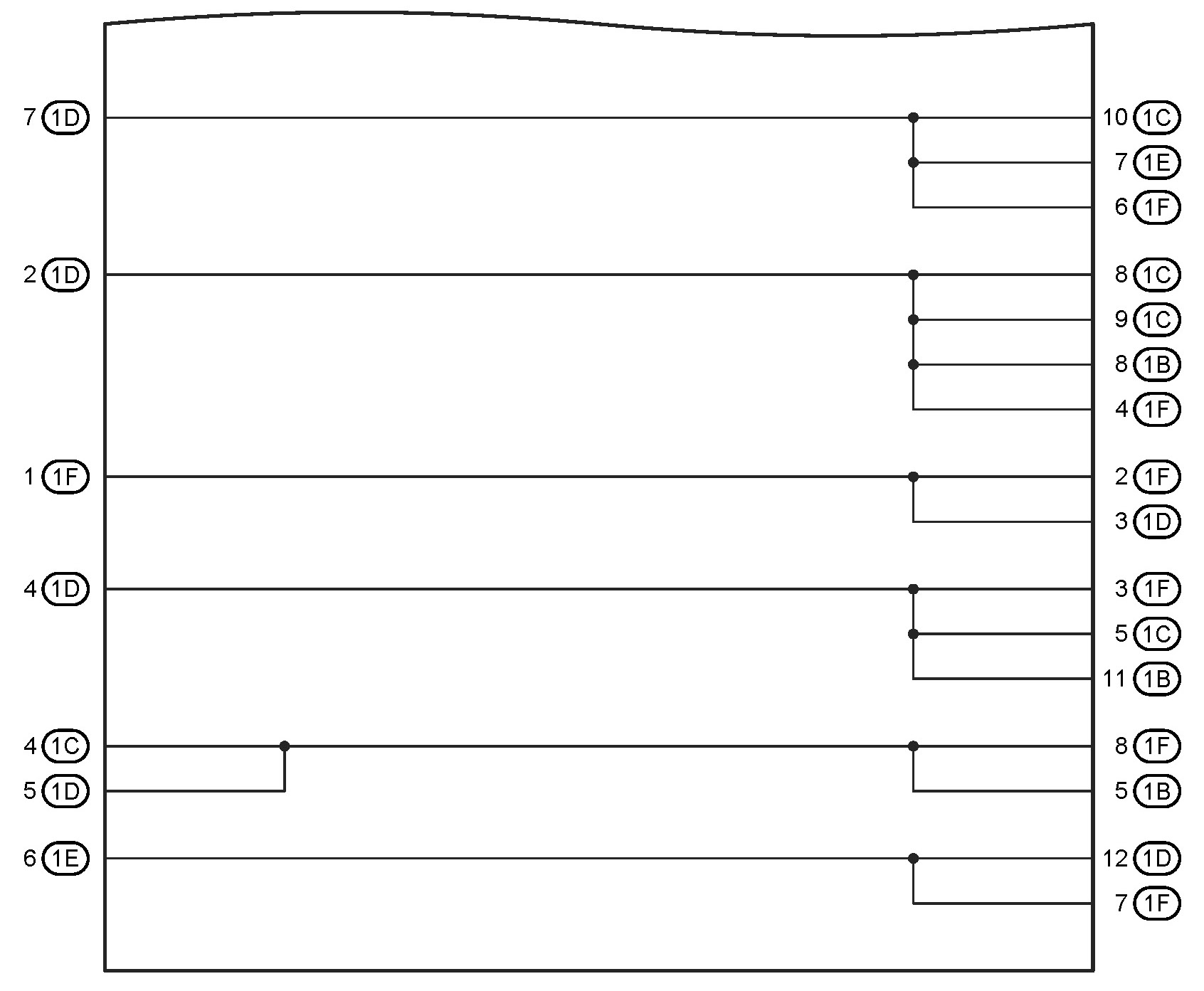

27 - Engine Room R/B No. 1 and Engine Room J/B No. 1 Inner Circuit:
