Home >> Scion >> 2012 >> iQ L4-1.3L (1NR-FE) >> Repair and Diagnosis >> Diagrams >> Connectors

Connectors

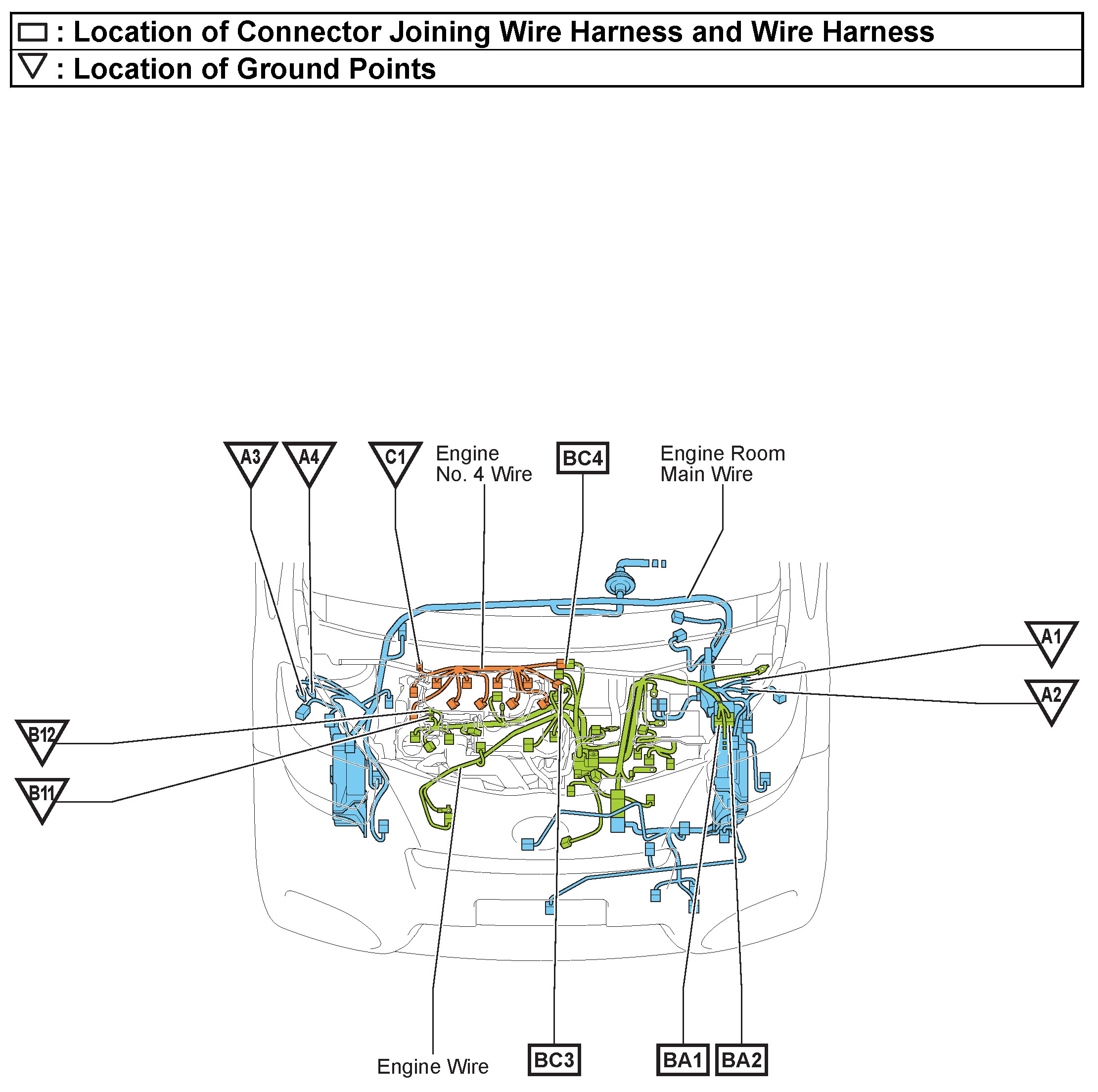

56 - A1-C1, BA1-BC4:

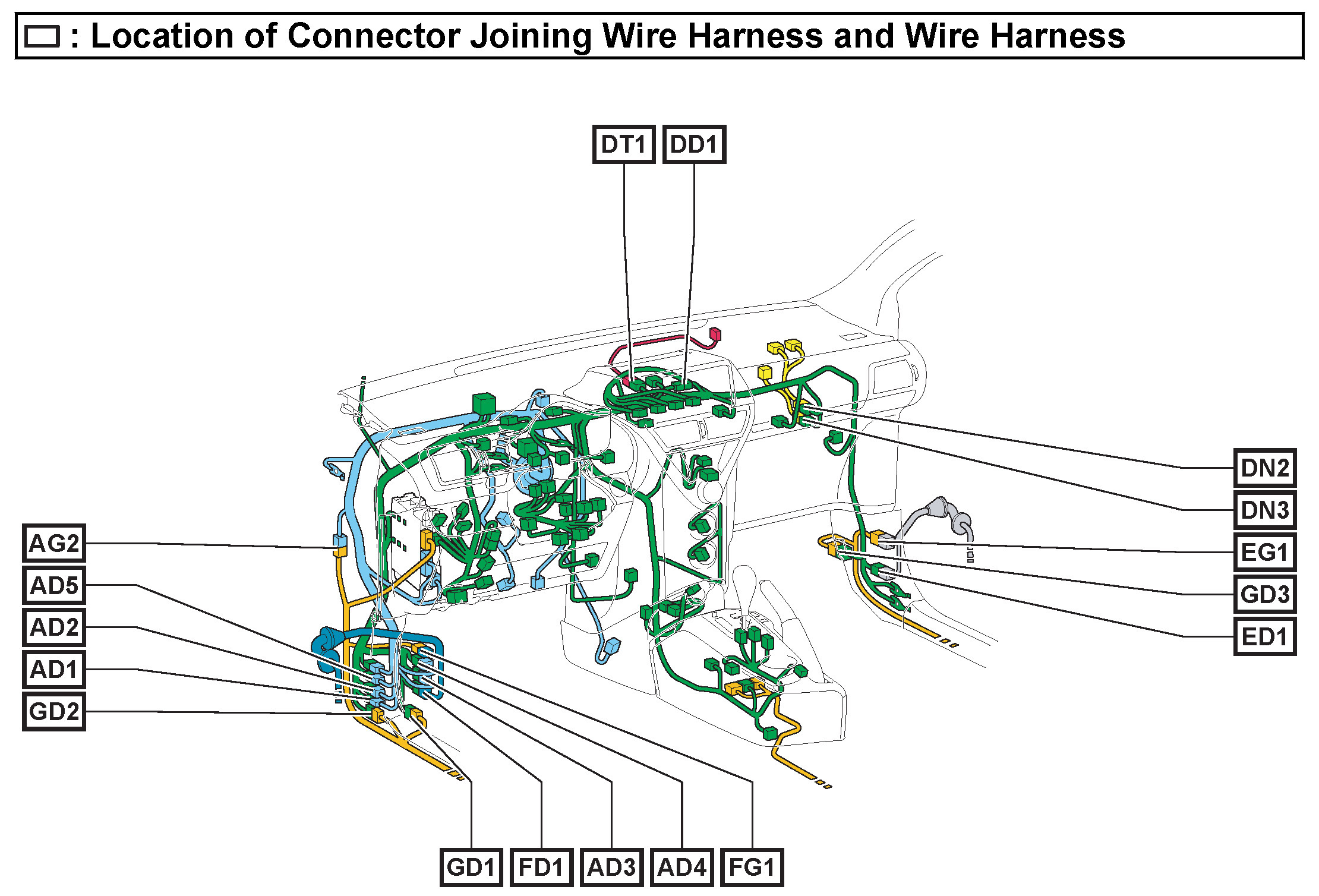

57 - AD1-GD3:

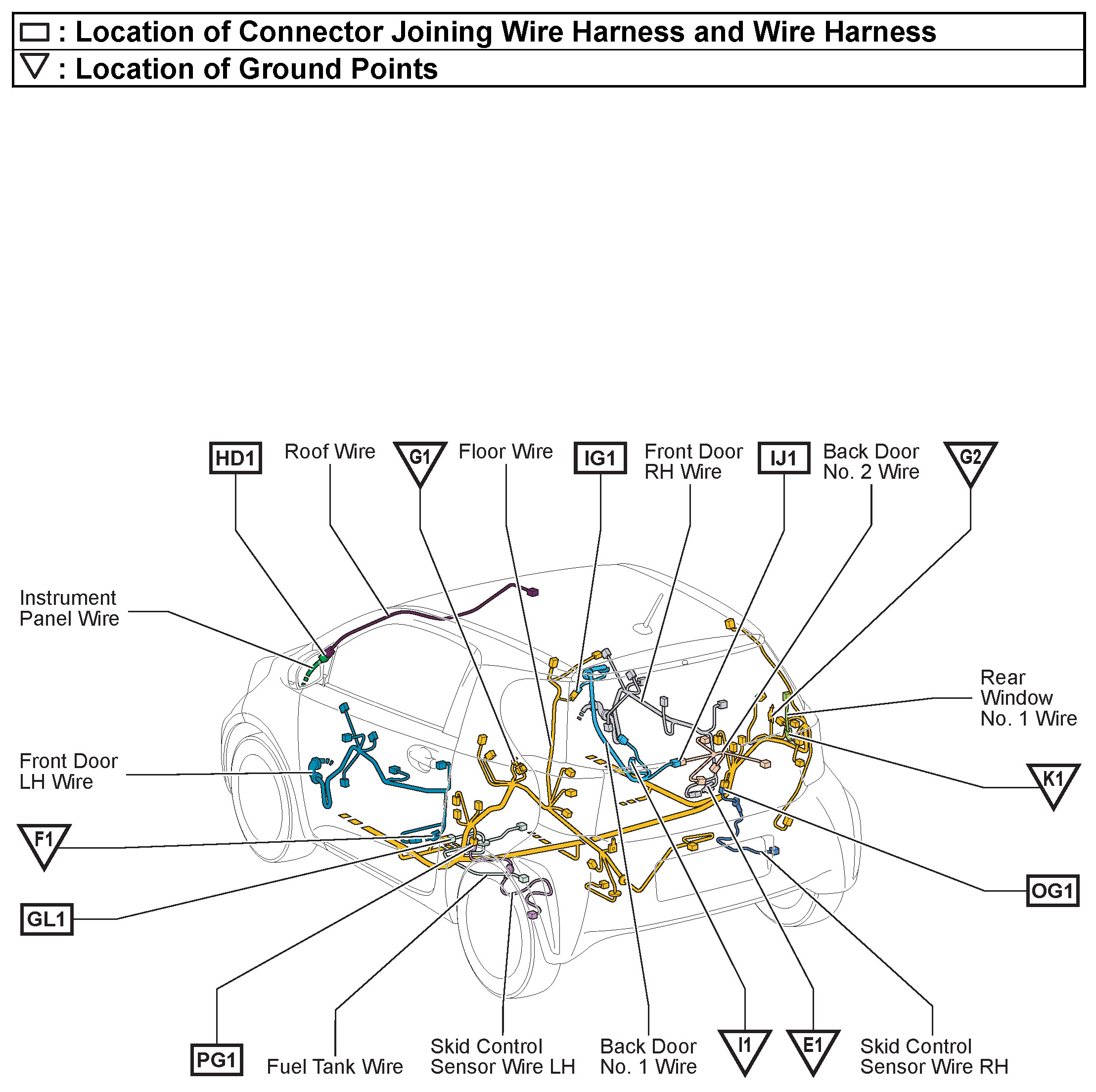

58 - E1-K1, GL1-PG1:

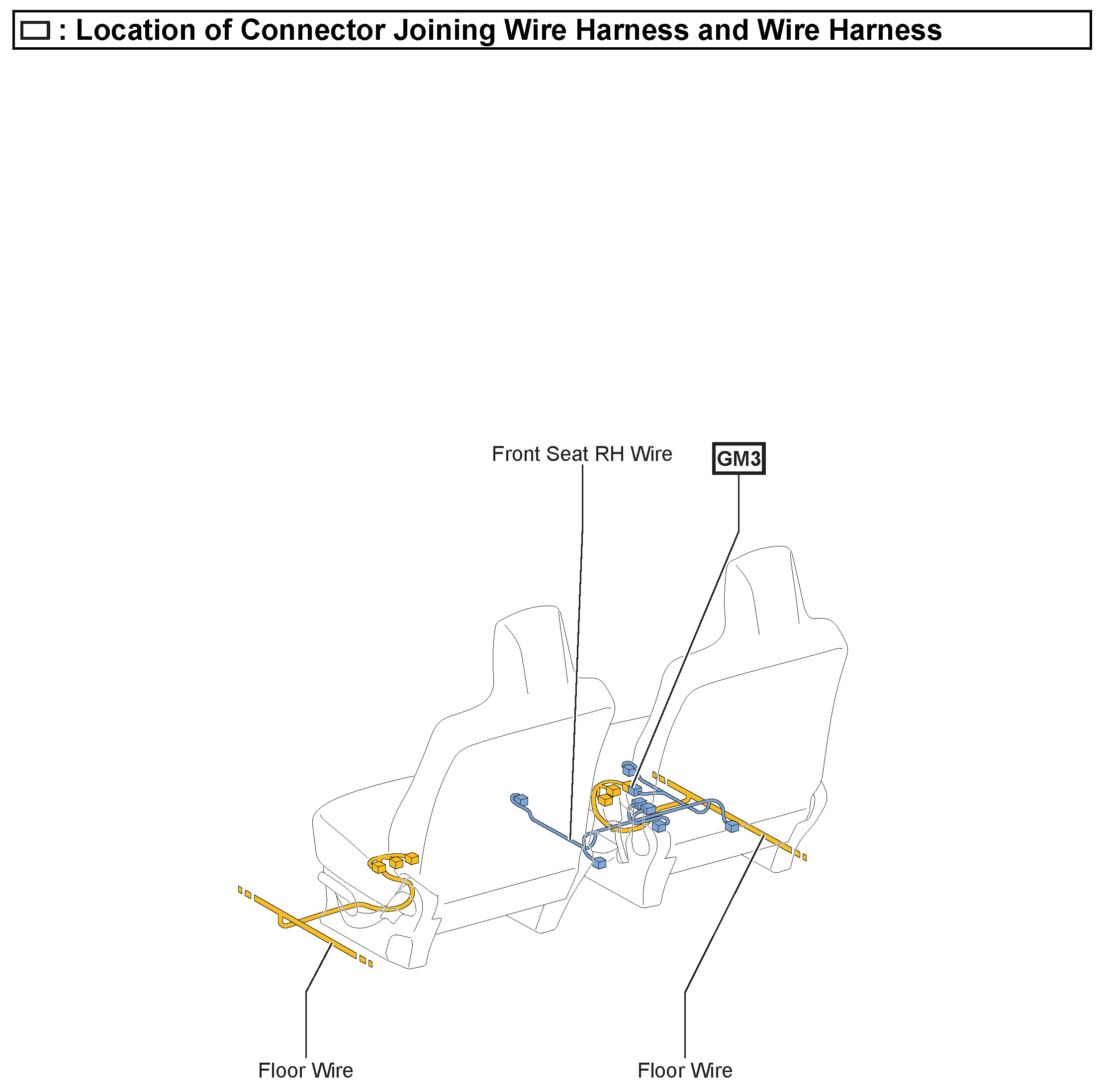

59 - GM3:
