50 - 53 - Position of Parts In Body
50 - 53 - Position of Parts In Body

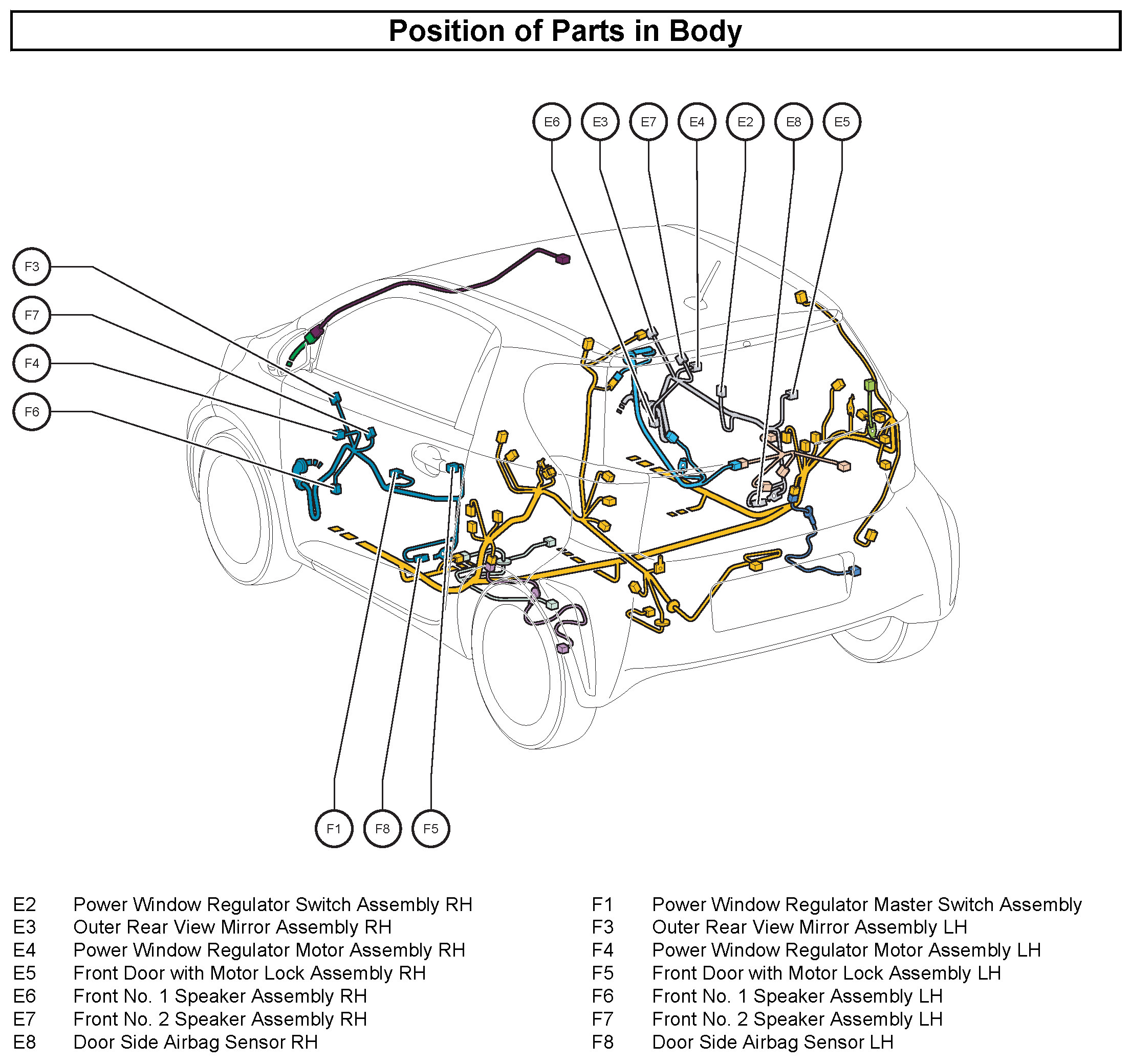

50 - Position Of Parts In Body:

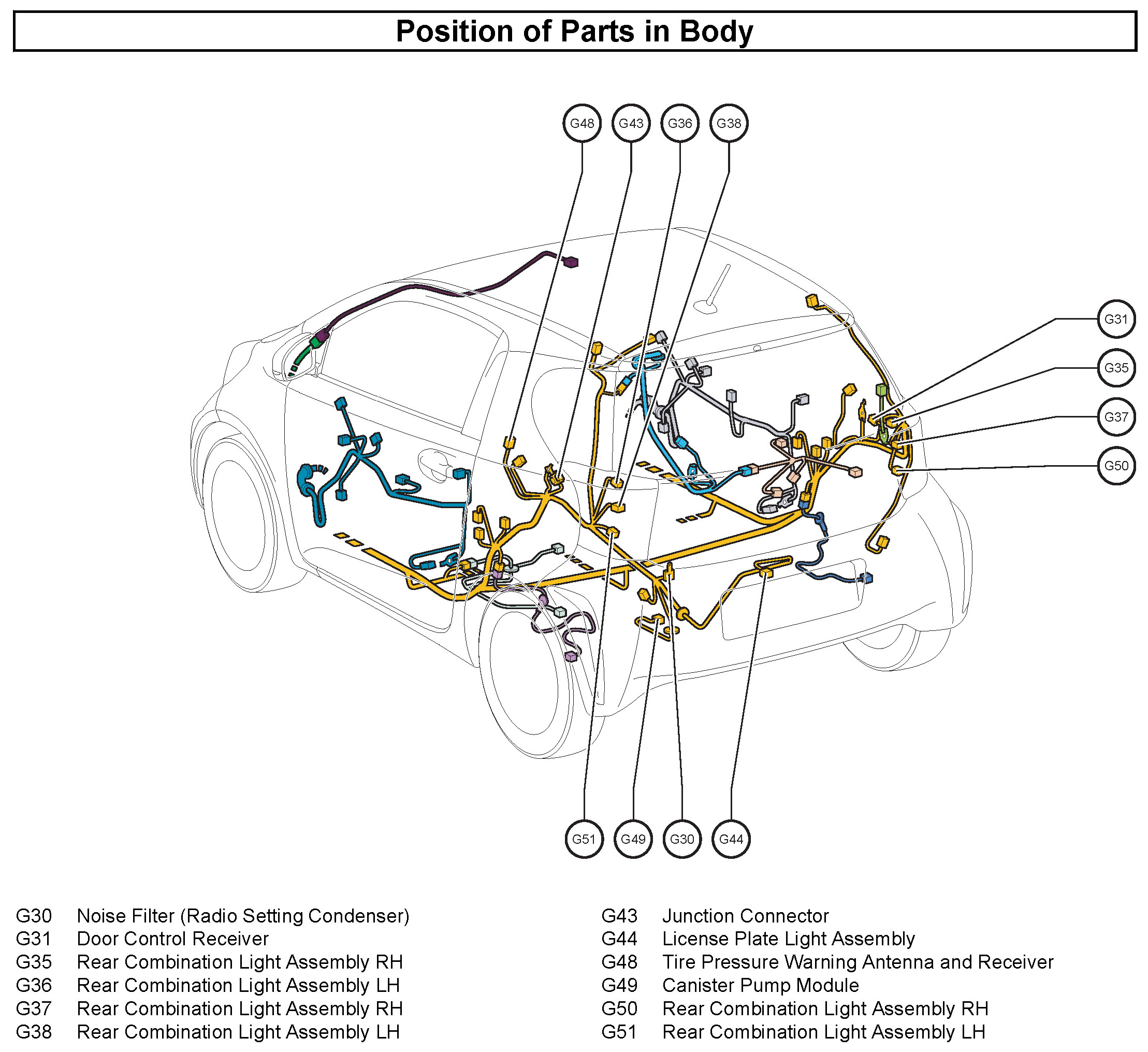

51 - Position Of Parts In Body:

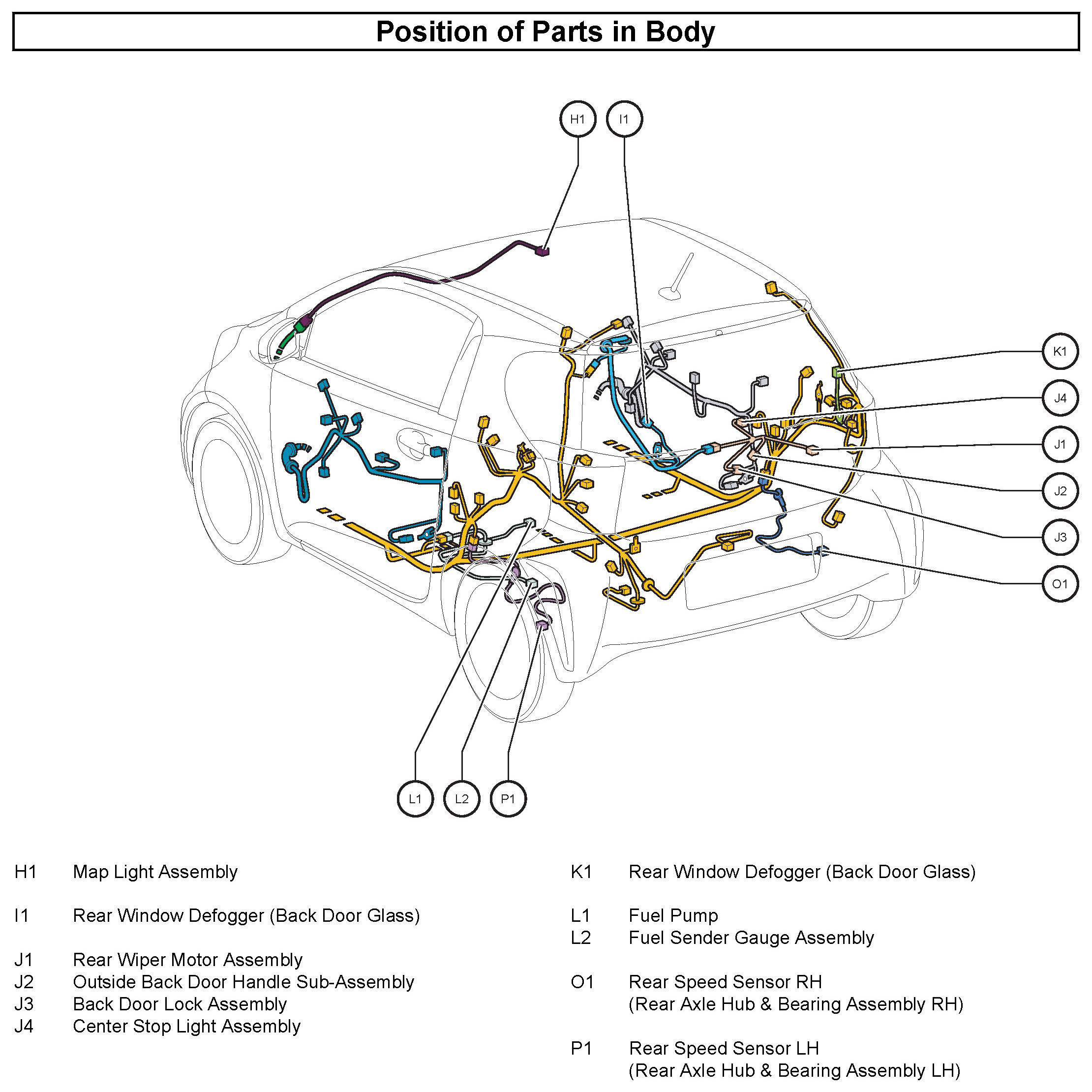

52 - Position Of Parts In Body:
53 - Position Of Parts In Body:
