Home >> Scion >> 2012 >> iQ L4-1.3L (1NR-FE) >> Repair and Diagnosis >> Diagrams >> Components >> 46 - 49 - Position of Parts In Instrument Panel

46 - 49 - Position of Parts In Instrument Panel

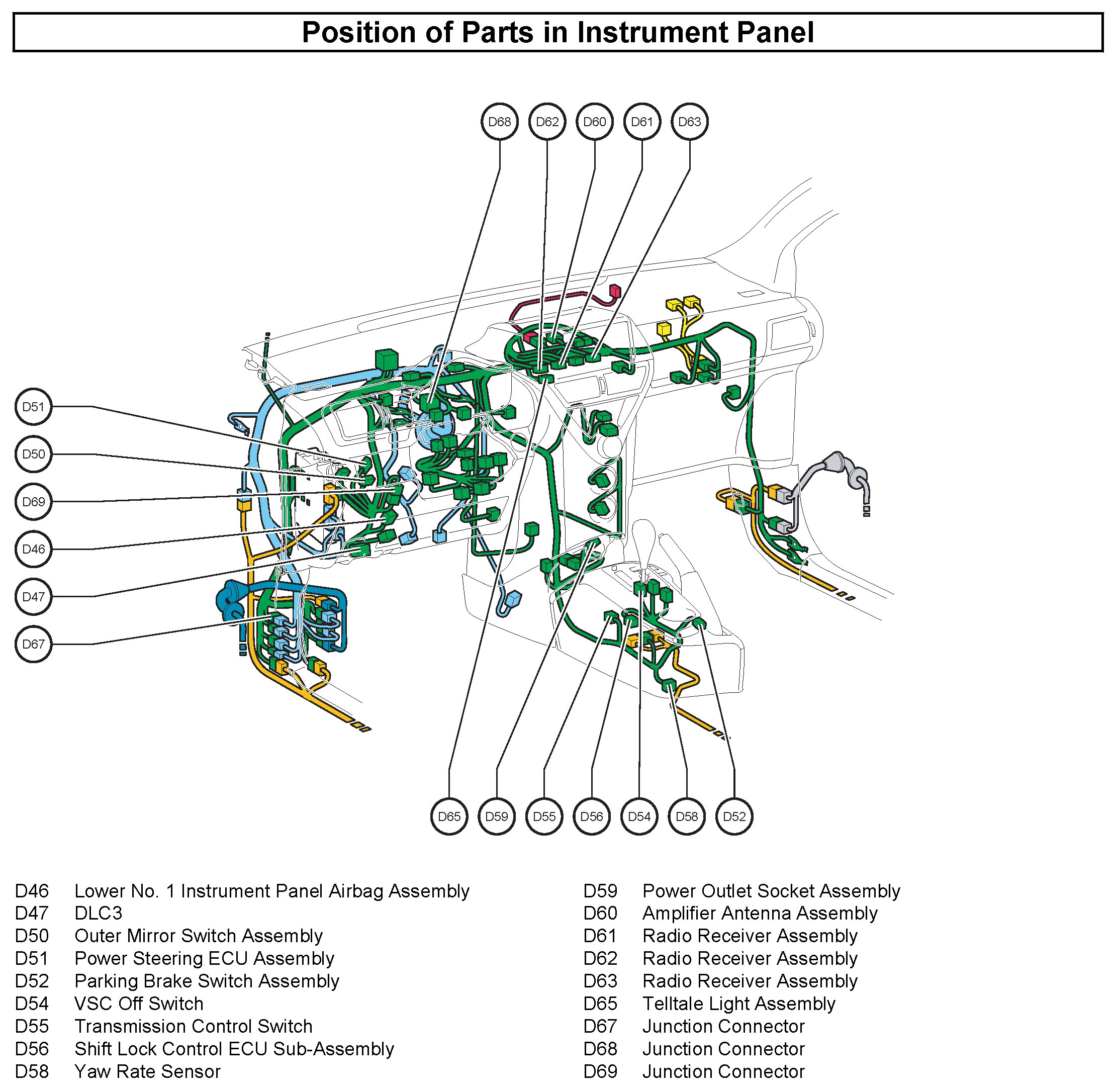

46 - Position Of Parts In Instrument Panel:

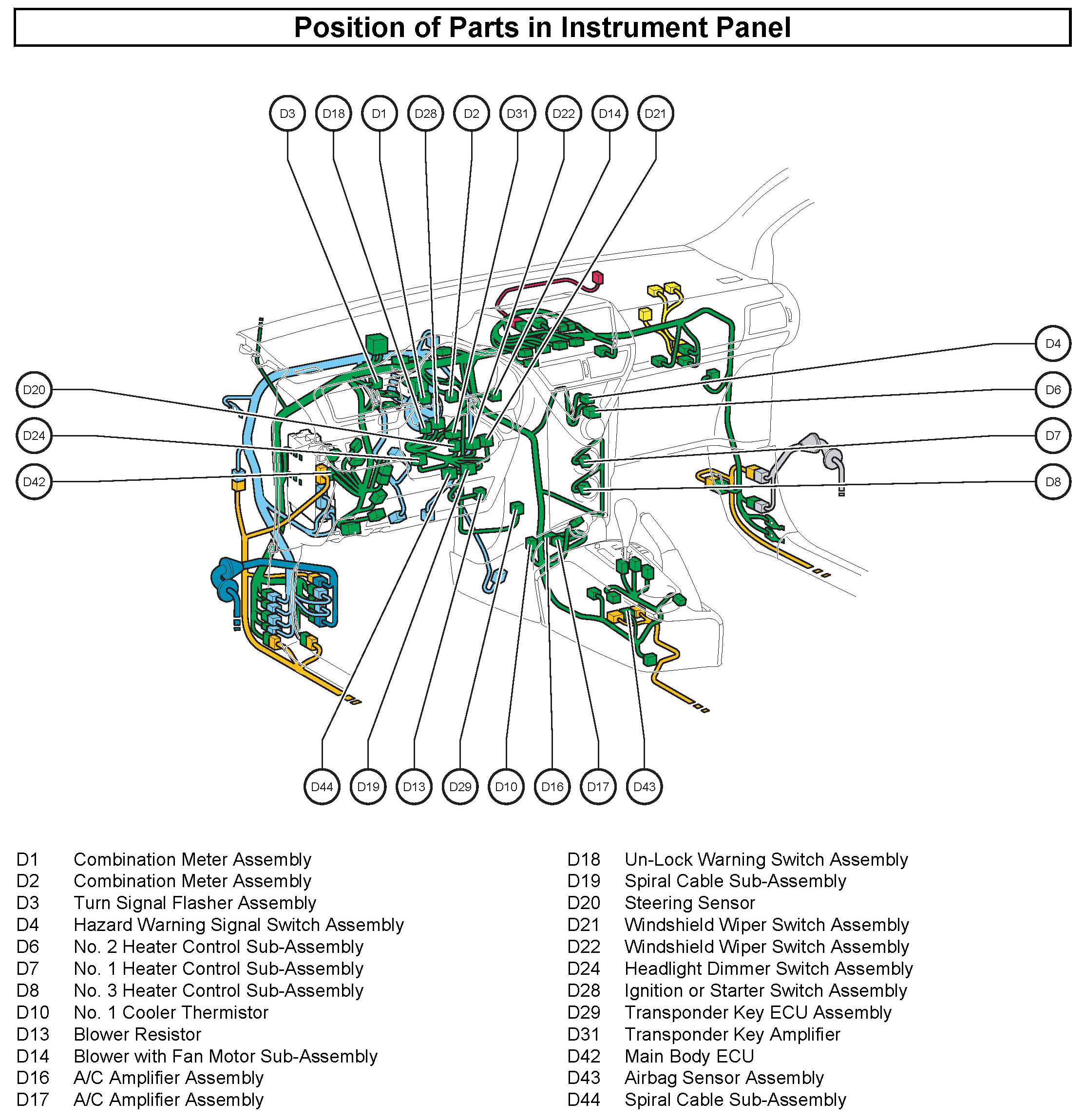

47 - Position Of Parts In Instrument Panel:

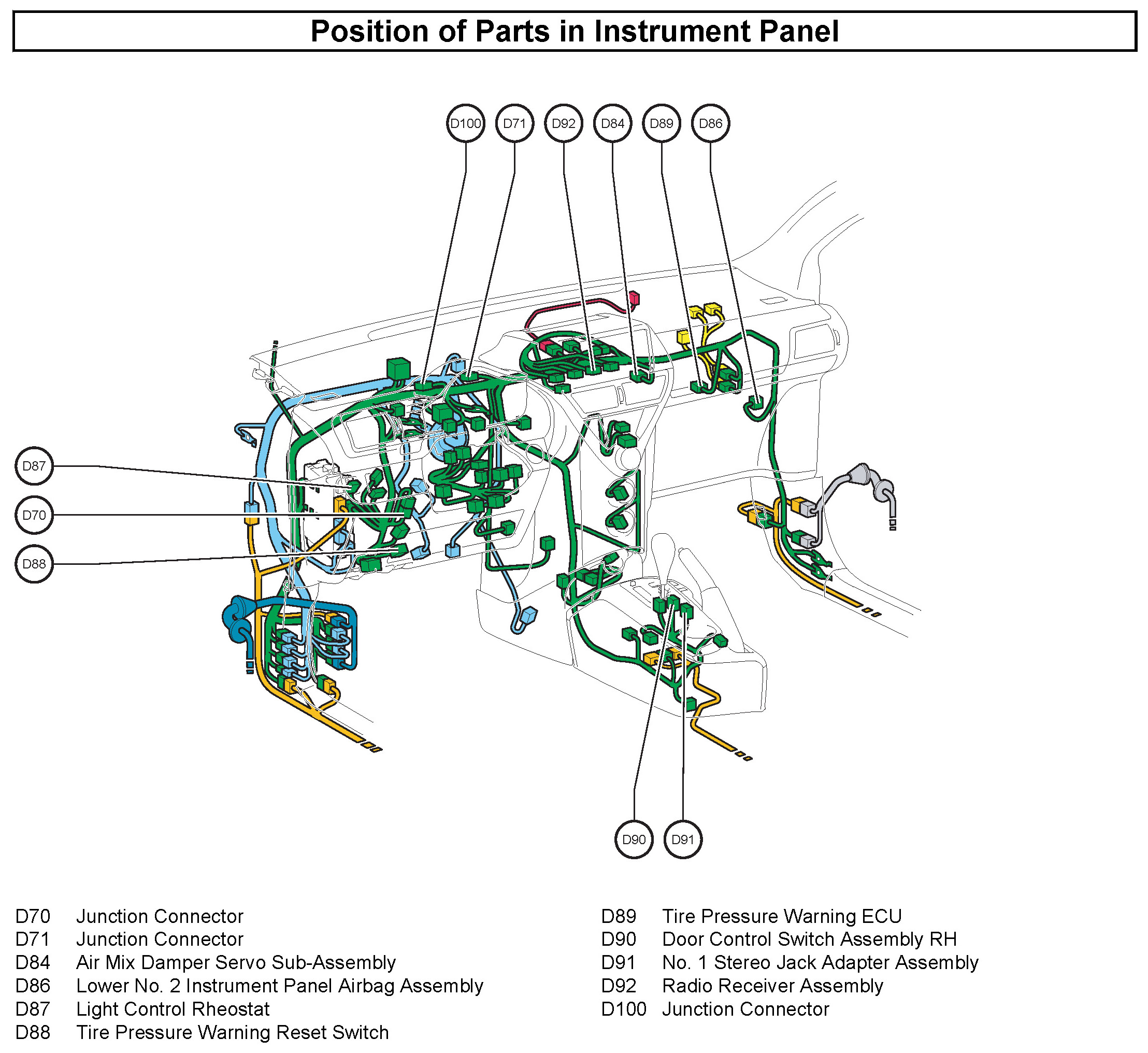

48 - Position Of Parts In Instrument Panel:

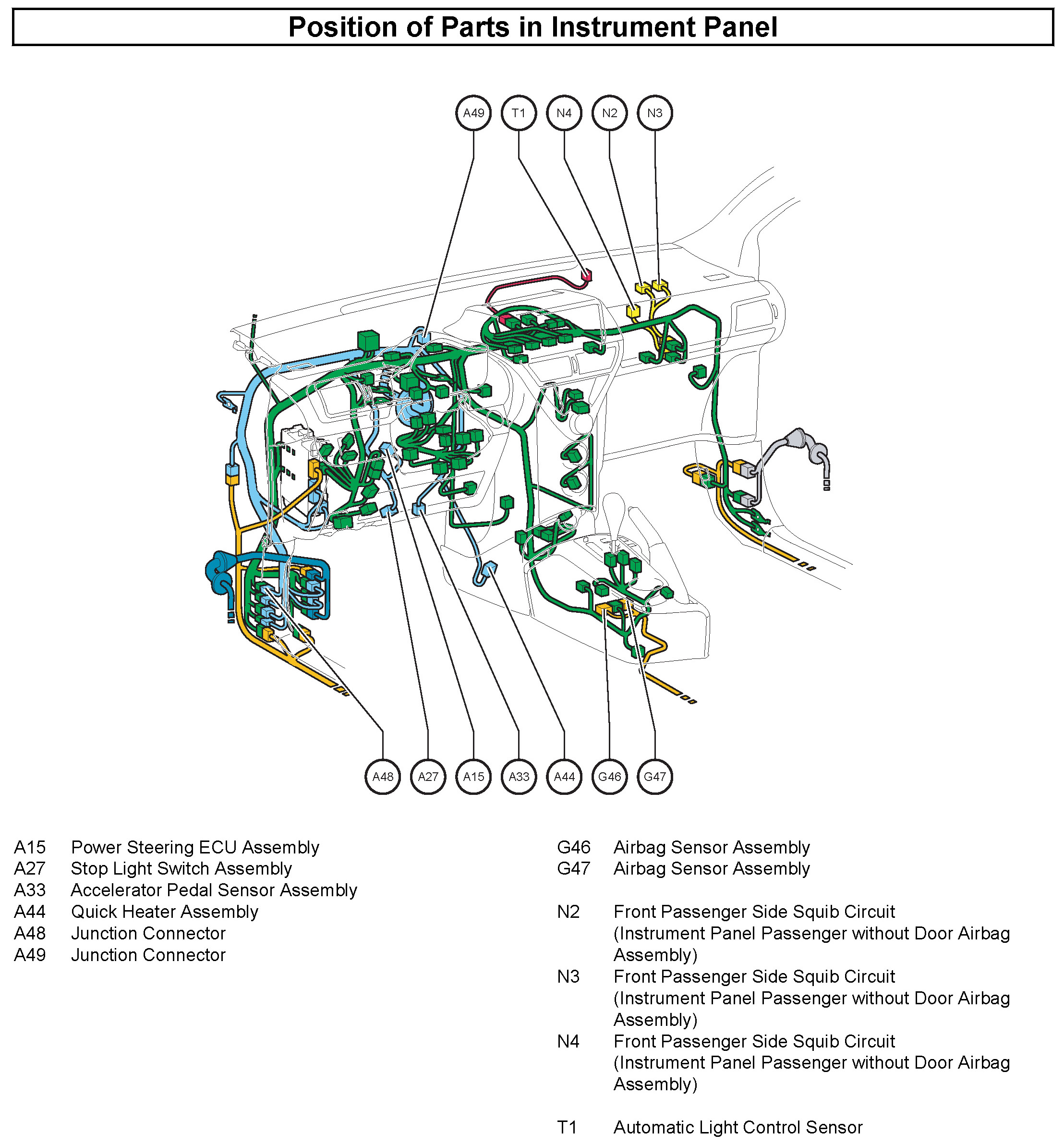

49 - Position Of Parts In Instrument Panel:
