44 - 45 - Position of Parts In Engine Compartment
44 - 45 - Position of Parts In Engine Compartment

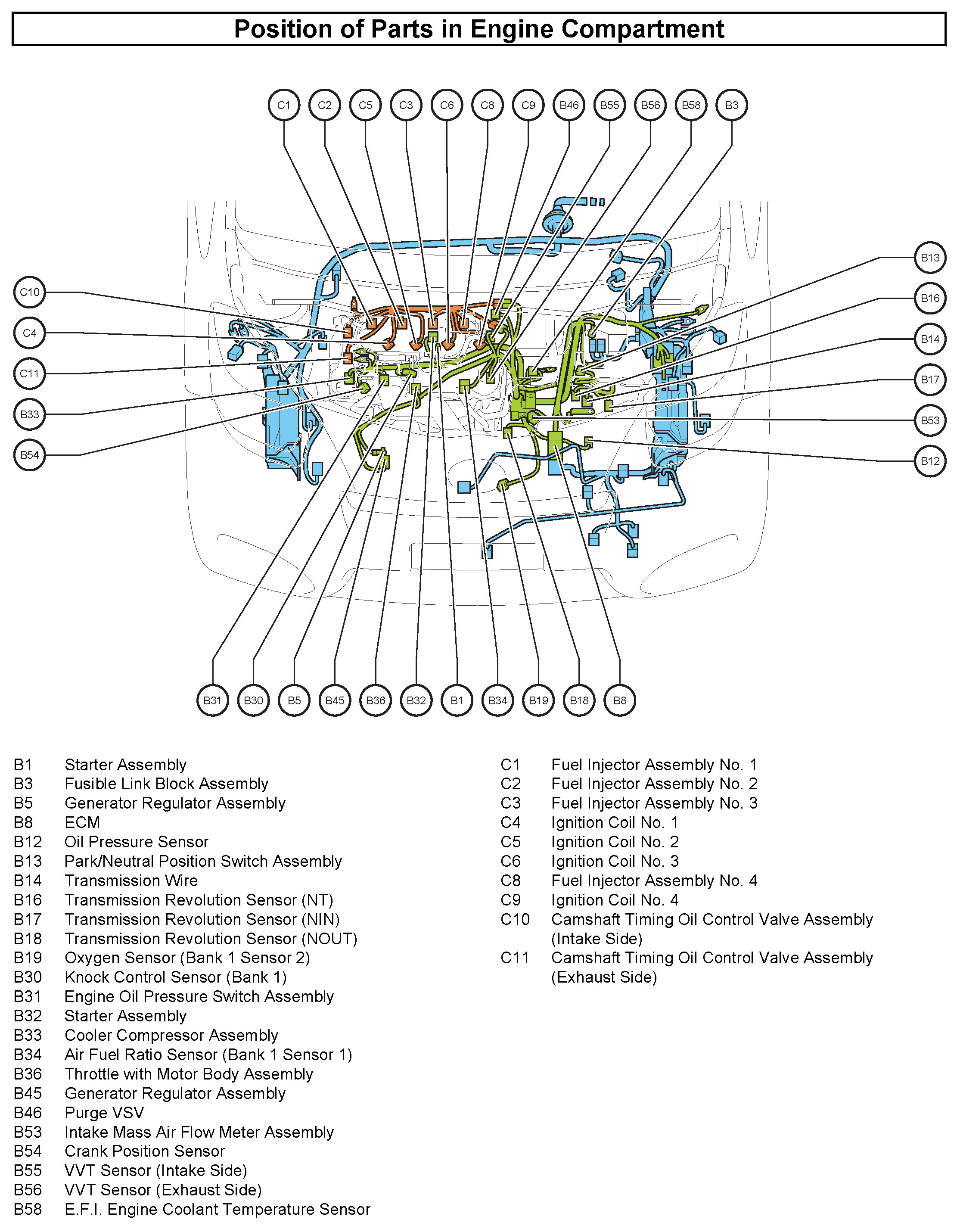

44 - Position Of Parts In Engine Compartment:

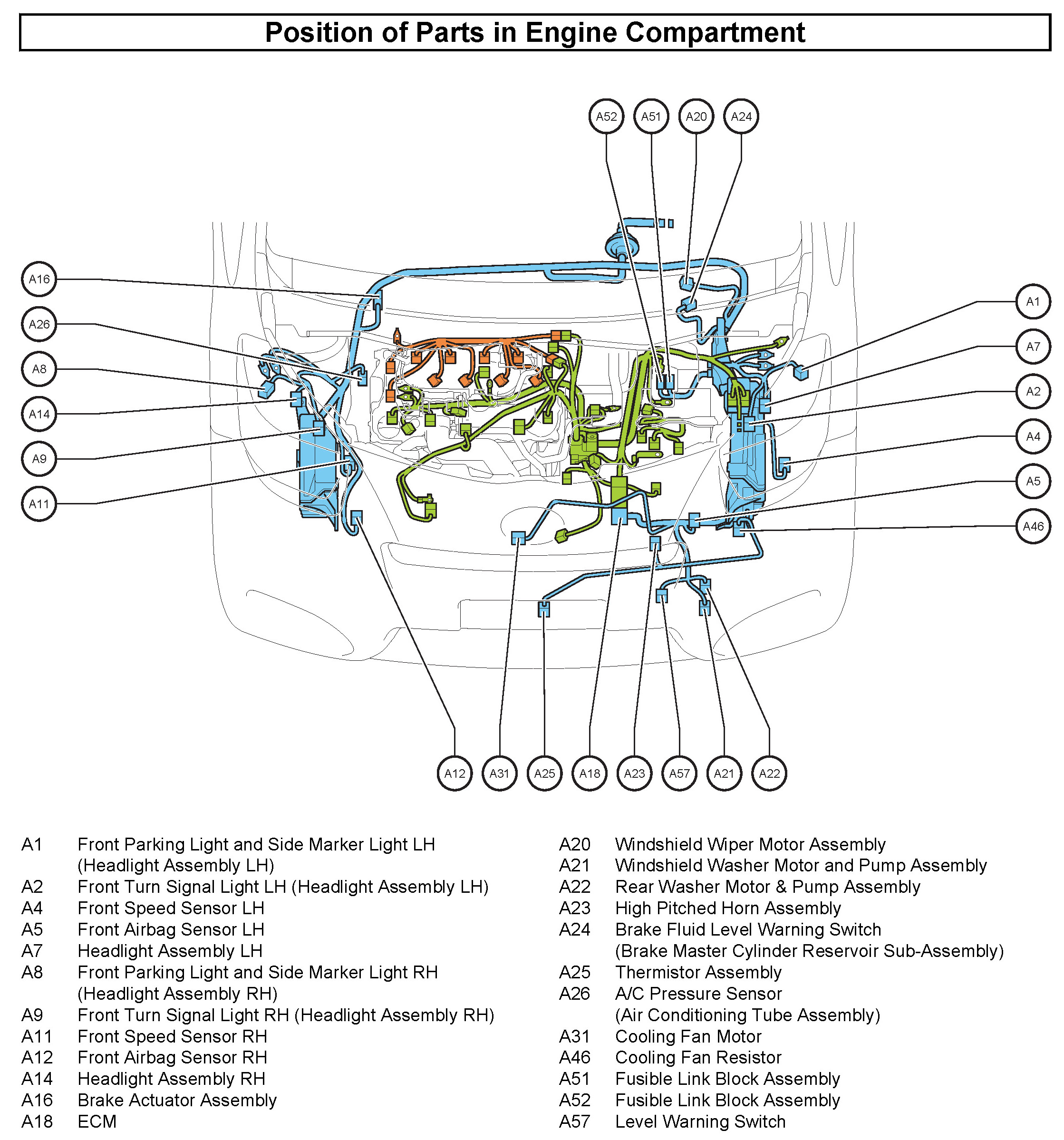

45 - Position Of Parts In Engine Compartment:
