Brake Hose/Line: Service Precautions
BRAKE SYSTEM (OTHER): BRAKE LINE: PRECAUTION
1. TROUBLESHOOTING PRECAUTION
NOTICE:
* Since the brake lines are classified as critical safety related parts, be sure to disassemble and inspect the components if a brake fluid leak is found. If any abnormality is found, replace the component with a new one.
* When removing brake components, cover the brake line connections to prevent foreign matter such as dust or dirt from entering the lines.
* Do not damage or deform the brake lines when removing or installing them.
* When installing a brake tube or flexible hose, ensure that they are free from twists or bends.
* If the cap of a flexible hose does not match the groove on the bracket, twist the hose slightly to insert it.
* Flexible hoses must be free from shock absorber oil, grease, etc.
* When installing a brake tube to a plastic clamp, ensure that the brake tube is not loose or pinched.
* Do not reuse any clips or plastic clamps removed from a flexible hose.
* After installing a brake tube or flexible hose, ensure that they do not interfere with any other components.

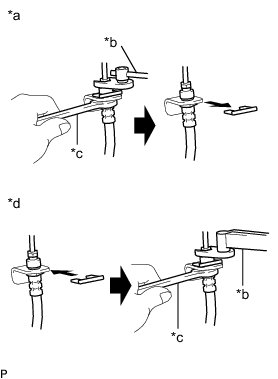

* When disconnecting and connecting a flexible hose and brake tube:
Text in Illustration
(1) Hold the flexible hose with a wrench and disconnect the brake tube with a union nut wrench 10 mm without deforming the tube.
(2) Remove the clip.
(3) Install a new clip.
(4) Connect the brake tube with a union nut wrench 10 mm without deforming the tube.
* When connecting a brake tube and way:
Text in Illustration
(1) Support the way to prevent deformation of the brake tube and connect the brake tube to the way with a union nut wrench 10 mm.
(2) Support the way to prevent deformation of the brake tube and install the bolt to secure the way to the body.
