Pinout Values and Diagnostic Parameters

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM: TERMINALS OF ECU

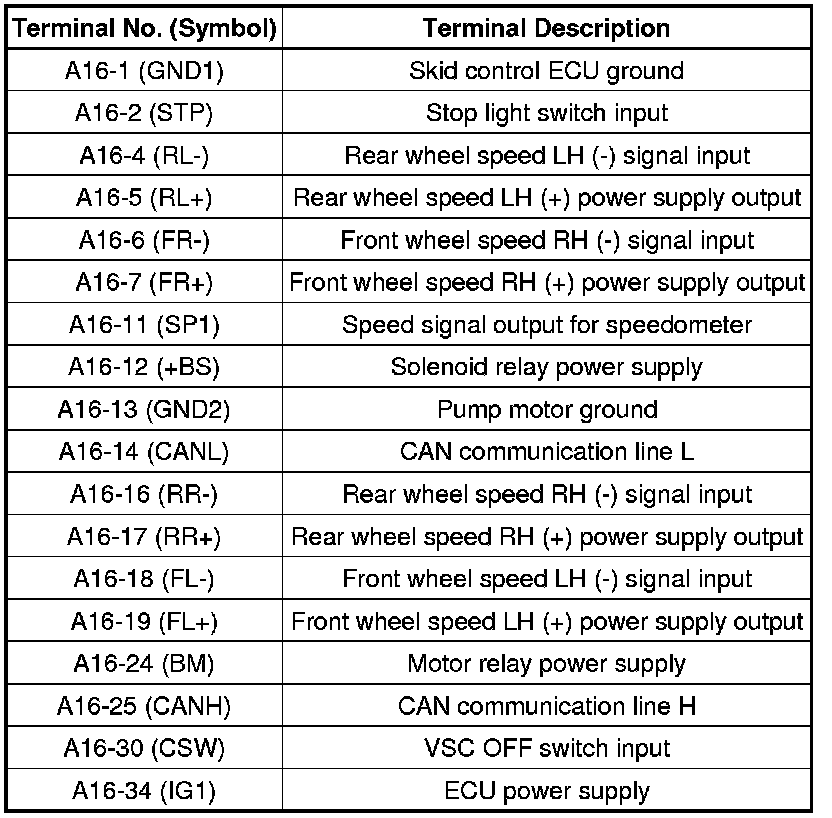

1. TERMINALS OF ECU





Text in Illustration

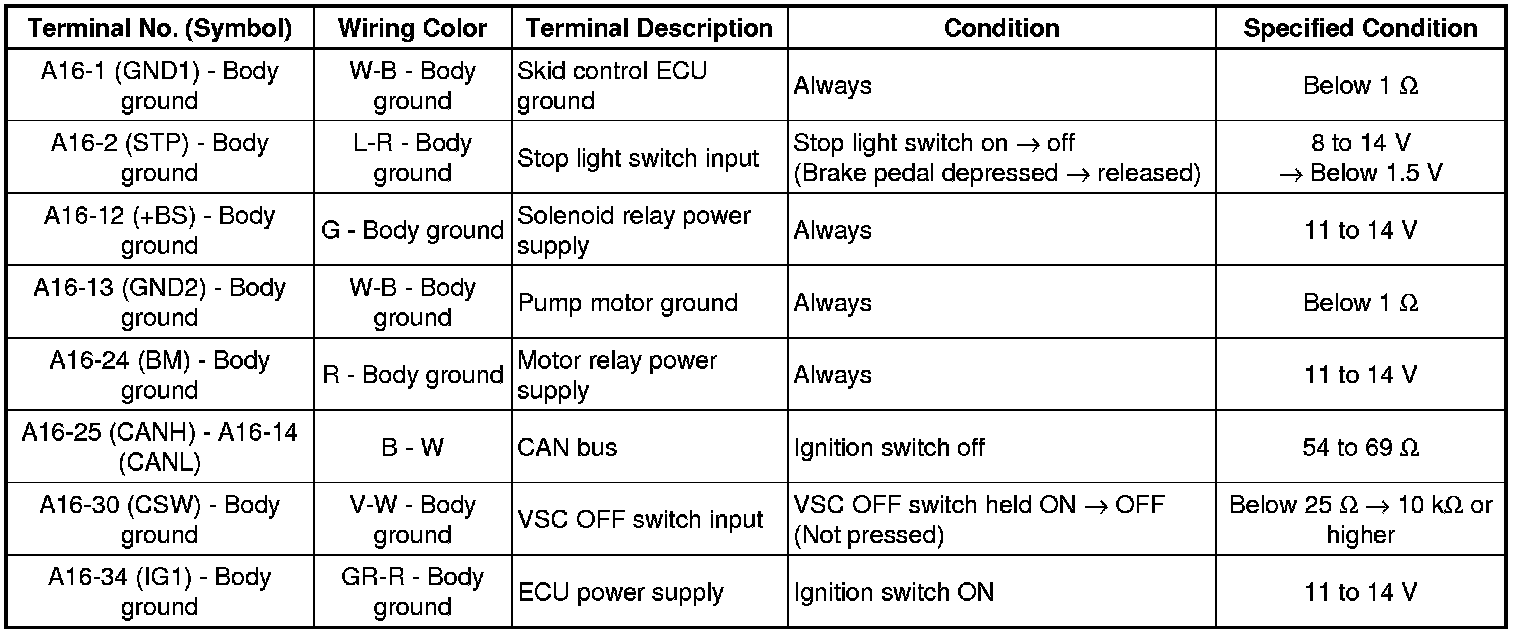

2. TERMINAL INSPECTION

(a) Disconnect the connector and measure the voltage or resistance on the wire harness side.





Text in Illustration





HINT
Voltage cannot be measured with the connector connected to the skid control ECU as the connector is watertight.

Standard
