Power Mirror Switch: Testing and Inspection

MIRROR (EXT): OUTER MIRROR SWITCH: INSPECTION

1. INSPECT OUTER MIRROR SWITCH ASSEMBLY

(a) Check the resistance.

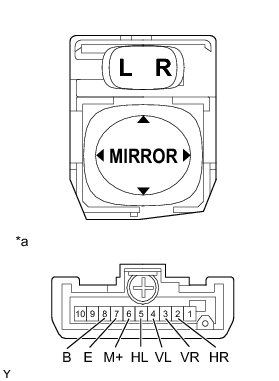

Text in Illustration





(1) Select "L" on the left/right adjustment switch.

(2) Measure the resistance according to the value(s) in the table below.

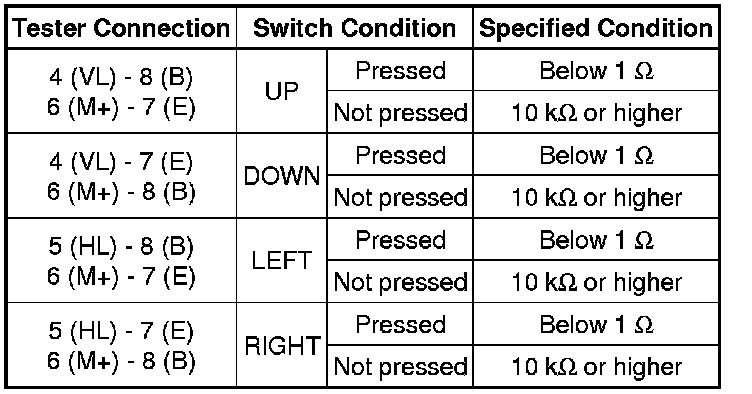

Standard Resistance:





If the result is not as specified, replace the outer mirror switch.

(3) Select "R" on the left/right adjustment switch.

(4) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the outer mirror switch.
