Seats: Specifications





SPECIFICATIONS: SEAT: TORQUE SPECIFICATIONS

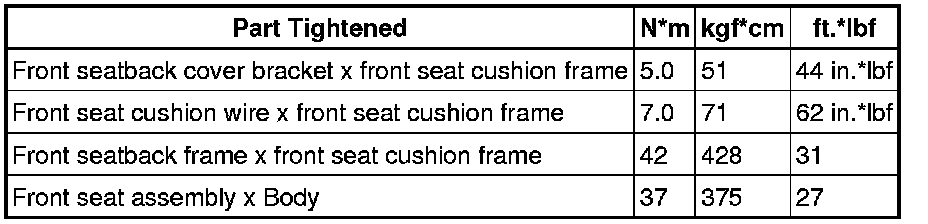

FRONT SEAT ASSEMBLY:

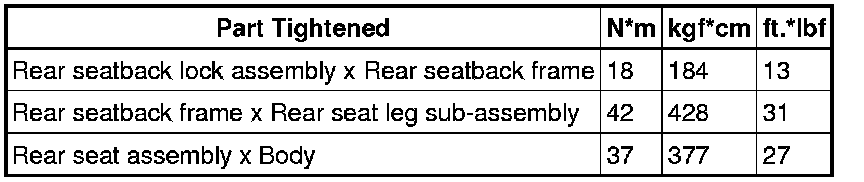

REAR SEAT ASSEMBLY:
