Programming and Relearning

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: CUSTOMIZE PARAMETERS

1. CUSTOMIZE POWER DOOR LOCK CONTROL SYSTEM

HINT
The following items can be customized.

NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Be sure to make a note of the current settings before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.

(a) Customizing with Techstream.

(1) Connect the Techstream to the DLC3.

(2) Turn the ignition switch to ON.

(3) Turn the Techstream on.

(4) Enter the following menus: Body Electrical / Door Lock or Illuminated Entry / Utility / Customize Setting.

(5) Select the setting by referring to the table below.

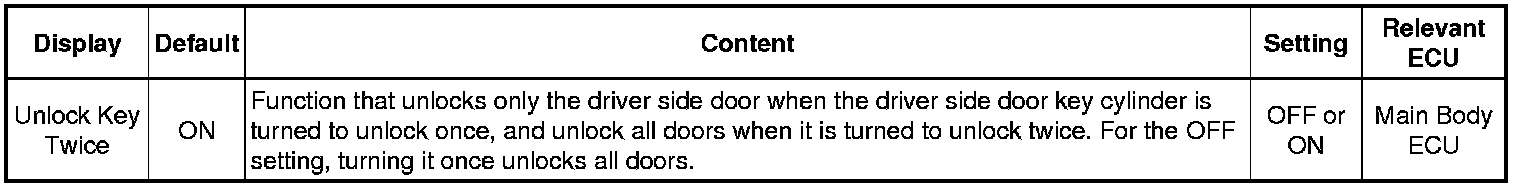

Door Lock

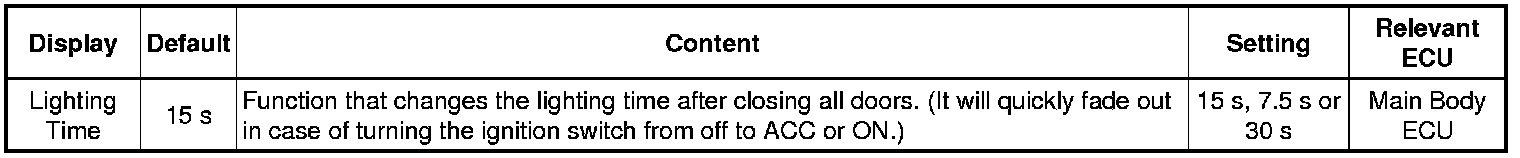

Illuminated Entry
