How To Proceed With Troubleshooting

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT
* Use the following procedure to troubleshoot the power door lock control system.
* *: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. CUSTOMER PROBLEM ANALYSIS

HINT
* In troubleshooting, confirm that the problem symptoms have been accurately identified. Preconceptions should be discarded in order to make an accurate judgment. To clearly understand what the problem symptoms are, it is extremely important to ask the customer about the problem and the conditions at the time the malfunction occurred.
* Gather as much information as possible for reference. Past problems that seem unrelated may also help in some cases.

* The following 5 items are important points for problem analysis:





NEXT -- Continue to next step.

3. INSPECT BATTERY VOLTAGE

(a) Measure the battery voltage.

Standard voltage:

11 to 14 V

If the voltage is below 11 V, recharge or replace the battery before proceeding.

NEXT -- Continue to next step.

4. CHECK COMMUNICATION FUNCTION OF LIN COMMUNICATION SYSTEM*

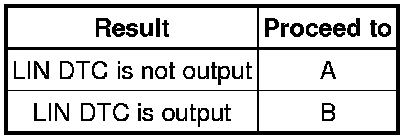

(a) Use the Techstream to check if the LIN communication system is functioning normally.

Result





B -- GO TO LIN COMMUNICATION SYSTEM LIN Communication System
A -- Continue to next step.

5. PROBLEM SYMPTOMS TABLE

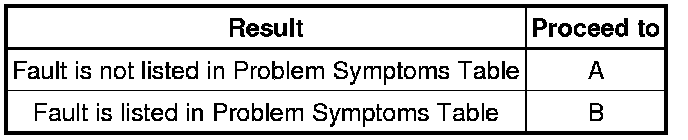

(a) Refer to Problem Symptoms Table Problem Symptoms Table.

Result





B -- Go to step 7
A -- Continue to next step.

6. OVERALL ANALYSIS AND TROUBLESHOOTING*

(a) Terminals of ECU Pinout Values and Diagnostic Parameters

(b) Data List / Active Test Scan Tool Testing and Procedures

(c) Operation Check Operation Check

NEXT -- Continue to next step.

7. REPAIR OR REPLACE

NEXT -- Continue to next step.

8. CONFIRMATION TEST

NEXT -- END
