System Description

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: SYSTEM DESCRIPTION

1. POWER DOOR LOCK CONTROL SYSTEM DESCRIPTION

(a) The power door lock system locks/unlocks all the doors.

The driver and passenger side door control switches send "lock/unlock" request signals to the main body ECU. Then, the main body ECU sends these request signals to the lock motors in each door to lock/unlock all the doors at once in response to the inputs.

Operating the driver door lock using a mechanical key sends request signals to lock or unlock the doors to the main body ECU.

2. FUNCTION OF MAIN COMPONENTS





3. SYSTEM FUNCTION

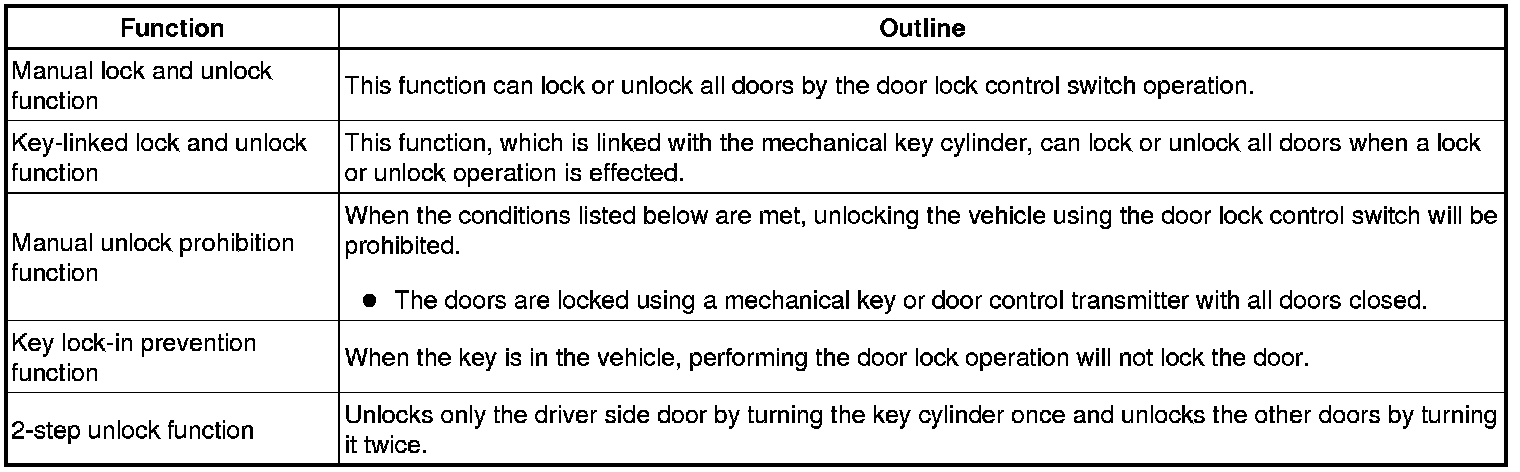

(a) This system is controlled by the main body ECU. The main body ECU outputs signals to each door lock motor. The door lock control system of the vehicle has the following functions:
