How To Proceed With Troubleshooting

DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT
* The wireless door lock control system troubleshooting procedures are based on the premise that the power door lock control system is operating normally. Check the power door lock control system first before troubleshooting the wireless door lock control system. Use this procedure to troubleshoot the wireless door lock control system.
* *: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. CUSTOMER PROBLEM ANALYSIS CHECK

(a) Interview the customer to confirm the problem How To Proceed With Troubleshooting.

NEXT -- Continue to next step.

3. INSPECT BATTERY VOLTAGE

Standard voltage:

11 to 14 V

If the voltage is below 11 V, recharge or replace the battery before proceeding to the next step.

NEXT -- Continue to next step.

4. CHECK FOR DTC*

(a) Check for DTCs and note any codes that are output Reading and Clearing Diagnostic Trouble Codes.

(b) Clear the DTCs.

(c) Recheck for DTCs. Based on the DTCs output above, try to force output of the same CAN communication system DTC or wireless door lock control system DTC by simulating the symptoms indicated by the DTC.

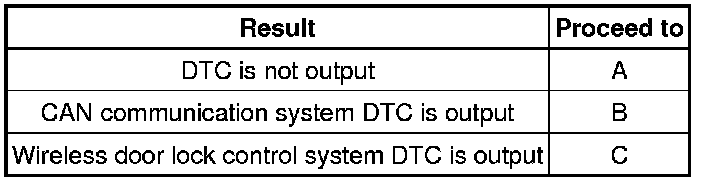

Result





B -- GO TO CAN COMMUNICATION SYSTEM How to Proceed With Troubleshooting

C -- GO TO DIAGNOSTIC TROUBLE CODE CHART Wireless Door Lock Control System
A -- Continue to next step.

5. PROBLEM SYMPTOMS TABLE

(a) Refer to Problem Symptoms Table Problem Symptoms Table.

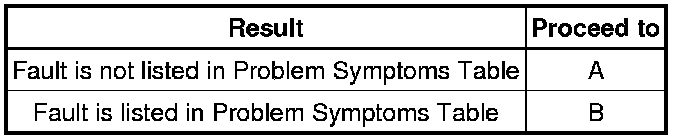

Result





B -- Go to step 7
A -- Continue to next step.

6. OVERALL ANALYSIS AND TROUBLESHOOTING*

(a) Operation Check Operation Check

(b) Terminals of ECU Pinout Values and Diagnostic Parameters

(c) Data List / Active Test Scan Tool Testing and Procedures

NEXT -- Continue to next step.

7. REPAIR OR REPLACE

NEXT -- Continue to next step.

8. CONFIRMATION TEST

NEXT -- END
